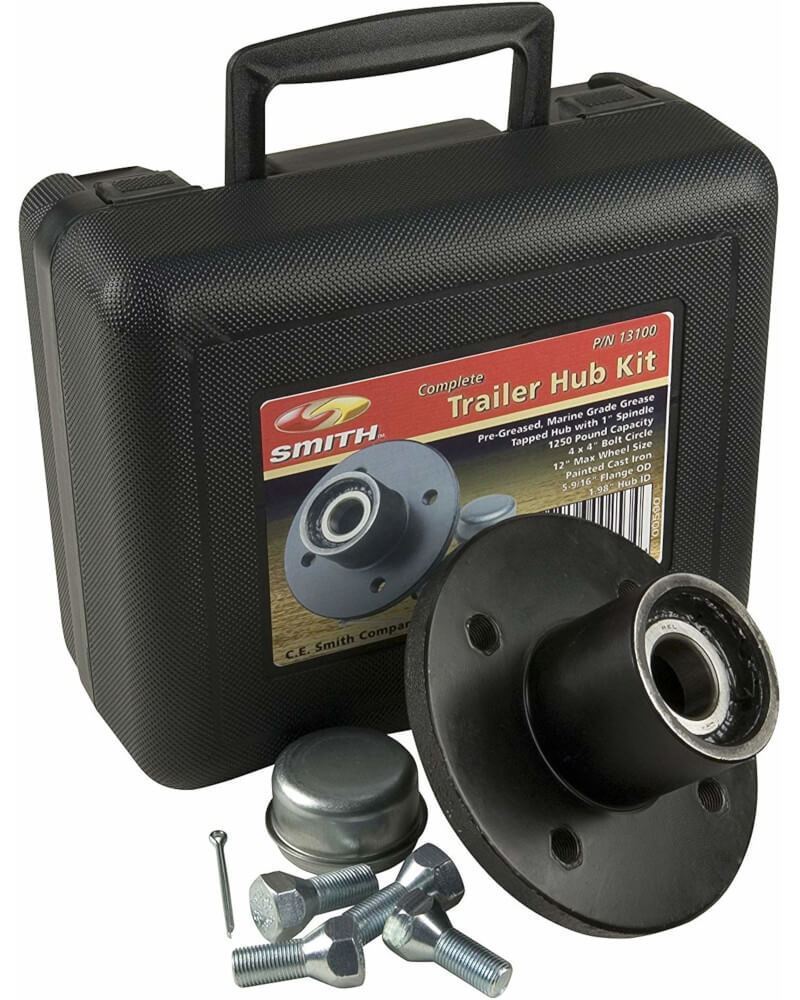

    4 Bolt Trailer Hub Kit for 1" Spindle, 1250 lbs Capacity, CE Smith 13100

    Manufacturer: C.E. Smith
    Shipshape Trailer Parts provides these convenient hub replacement kits for many trailer applications. Painted cast iron studded hub for 1" spindle. Bolt pattern: 4 x 4". Flange Outside Diameter: 5-9/16". Rated 1250 lbs. Hub Inside Diameter: 1.98". Maximum recommended wheel size: 12". Sold each: Includes hub, bearings, seals, dust cap, grease and lug nuts
    SKU: CS13110
    Manufacturer part number: 13100
    GTIN: 00768296002534
    Availability: Out of stock
    $64.99
    $51.99
    i h

    CE Smith 4 Bolt Trailer Hub Kit for 1" Spindle, part 13100

    Shipshape Trailer Parts provides these convenient hub replacement kits for many trailer applications.

    Features:

    • Kit lets you replace 1 hub assembly on your trailer
      • Includes bearings, races, grease seal, grease cap, lug nuts, and cotter pin
      • Perfect for storing onboard your trailer in case of an emergency
    • Pre-greased with heavy-duty, marine-grade lubricant
      • Ideal for boat trailers
    • Strong, cast iron hub is painted black
    • Double-lip grease seal helps keep moisture out and grease in
    • Zinc plating on lug nuts, cotter pin, and grease cap helps to limit corrosion
    • Carrying case with handle keeps all the parts in one place
    • Made in the USA

    Included:

    • Hub
    • Bearings
    • Seals
    • Dust cap
    • Grease
    • Lug nuts

    Specs:

    • Application: 2,500-lb axles
      • Maximum wheel diameter: 12"
    • Painted cast iron studded hub for 1" spindle
    • Bolt pattern: 4 on 4"
    • Flange outside diameter 5-9/16"
    • Weight capacity: 1,250 lbs
    • Hub Inside diameter 1.98"
    • Maximum recommended wheel size: 12"
    • Inner Bearing size: 1 inch, part # LM44643
    • Outer Bearing size: 1 inch, part # LM44643
    • Hub length: 4-1/8 inch
    • Distance between races: 2-7/16 inch

    Bearing, Race, and Seal Information:

    • Bearings (included)
      • Inner and outer bearing: L44643 (1" inner diameter)
    • Races (included)
      • Inner and outer race: L44610
    • Grease seal (included): 12192TB
      • Inner diameter: 1.249"
      • Outer diameter: 1.983"

    trailer hubs measuring bolt patterns

    Wheel Hub Parts Guide:

    Tailer Wheel Hub Guide

    C. E. Smith Company, Inc. manufactures and sells replacement parts for small to mid-size boat trailers including trailer fenders, boat guides, galvanized bracketry, tire carriers, replacement wheel bearings, rubber rollers, roller shafts, u-bolts and other requirements for boat trailers.

    CE Smith logo

    CE Smith 4 Bolt Trailer Hub Kit for 1" Spindle, part 13100

    Shipshape Trailer Parts provides these convenient hub replacement kits for many trailer applications.

    Features:

    • Kit lets you replace 1 hub assembly on your trailer
      • Includes bearings, races, grease seal, grease cap, lug nuts, and cotter pin
      • Perfect for storing onboard your trailer in case of an emergency
    • Pre-greased with heavy-duty, marine-grade lubricant
      • Ideal for boat trailers
    • Strong, cast iron hub is painted black
    • Double-lip grease seal helps keep moisture out and grease in
    • Zinc plating on lug nuts, cotter pin, and grease cap helps to limit corrosion
    • Carrying case with handle keeps all the parts in one place
    • Made in the USA

    Included:

    • Hub
    • Bearings
    • Seals
    • Dust cap
    • Grease
    • Lug nuts

    Specs:

    • Application: 2,500-lb axles
      • Maximum wheel diameter: 12"
    • Painted cast iron studded hub for 1" spindle
    • Bolt pattern: 4 on 4"
    • Flange outside diameter 5-9/16"
    • Weight capacity: 1,250 lbs
    • Hub Inside diameter 1.98"
    • Maximum recommended wheel size: 12"
    • Inner Bearing size: 1 inch, part # LM44643
    • Outer Bearing size: 1 inch, part # LM44643
    • Hub length: 4-1/8 inch
    • Distance between races: 2-7/16 inch

    Bearing, Race, and Seal Information:

    • Bearings (included)
      • Inner and outer bearing: L44643 (1" inner diameter)
    • Races (included)
      • Inner and outer race: L44610
    • Grease seal (included): 12192TB
      • Inner diameter: 1.249"
      • Outer diameter: 1.983"

    trailer hubs measuring bolt patterns

    Wheel Hub Parts Guide:

    Tailer Wheel Hub Guide

    C. E. Smith Company, Inc. manufactures and sells replacement parts for small to mid-size boat trailers including trailer fenders, boat guides, galvanized bracketry, tire carriers, replacement wheel bearings, rubber rollers, roller shafts, u-bolts and other requirements for boat trailers.

    CE Smith logo

    Products specifications
    Capacity 1,250 lbs.
    Bolt Pattern 4 Bolts
