    Axle Tie Plate Formed Galvanized for 1/2" U-Bolt, CE Smith 20001G

    Manufacturer: C.E. Smith
    Formed trailer axle tie plate, galvanized 1/4" steel. 5.83" length, 3.75" width, hole centers 2.94" and 2.31", accepts 1/2" U-bolt. Used together with U-Bolts and nuts to connect the leaf springs to the trailer axle.
    SKU: CS20001
    Manufacturer part number: 20001G
    Availability: In stock
    $8.99
    $5.99
    i h

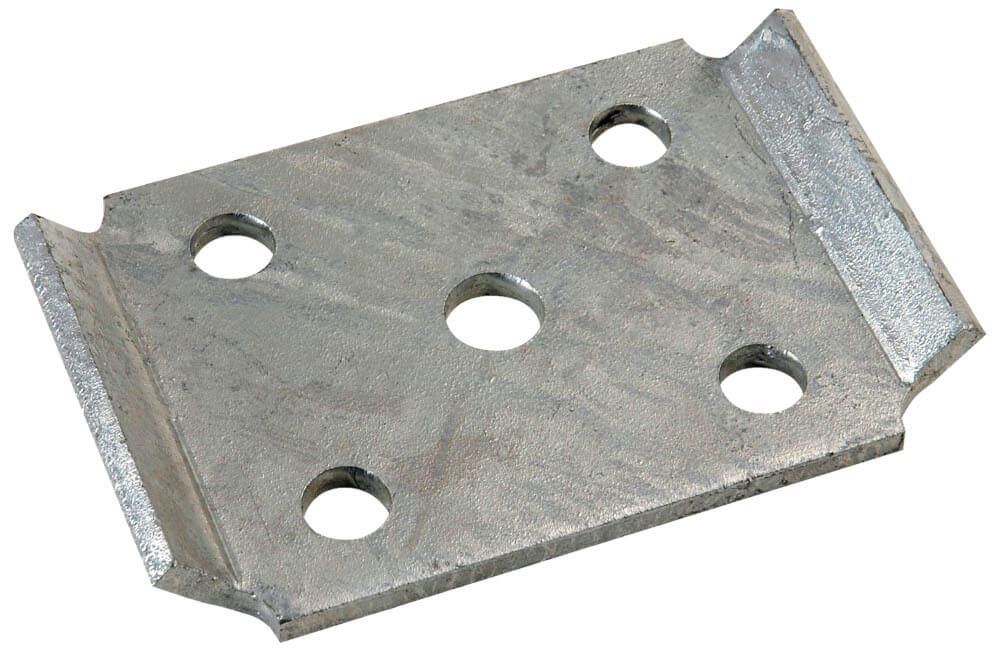

    CE Smith Trailer Axle Formed Galvanized Tie Plate for 1/2" U-Bolt, part 20001G

    Axle tie plates, which may also be called U-bolt tie plates, are used together with U-Bolts and nuts to connect the leaf springs to the trailer axle. These are parts of the suspension system of the trailer suspension system.

    • Galvanized 1/4" steel
    • A Length: 5.83 inches
    • B Hole Centers: 2.94 inches
    • C Hole Centers: 2.31 inches
    • D Width: 3.75 inches

    Accepts 1/2 inch U-bolt

    trailer axle formed tie plate dimensions

    SiraWeb.com offers parts individually or as part of a kit.  All parts a band name, top quality and american made.

    C. E. Smith Company, Inc. manufactures and sells replacement parts for small to mid-size boat trailers including trailer fenders, boat guides, galvanized bracketry, tire carriers, replacement wheel bearings, rubber rollers, roller shafts, u-bolts and other requirements for boat trailers.

    CE Smith logo

    CE Smith Trailer Axle Formed Galvanized Tie Plate for 1/2" U-Bolt, part 20001G

    Axle tie plates, which may also be called U-bolt tie plates, are used together with U-Bolts and nuts to connect the leaf springs to the trailer axle. These are parts of the suspension system of the trailer suspension system.

    • Galvanized 1/4" steel
    • A Length: 5.83 inches
    • B Hole Centers: 2.94 inches
    • C Hole Centers: 2.31 inches
    • D Width: 3.75 inches

    Accepts 1/2 inch U-bolt

    trailer axle formed tie plate dimensions

    SiraWeb.com offers parts individually or as part of a kit.  All parts a band name, top quality and american made.

    C. E. Smith Company, Inc. manufactures and sells replacement parts for small to mid-size boat trailers including trailer fenders, boat guides, galvanized bracketry, tire carriers, replacement wheel bearings, rubber rollers, roller shafts, u-bolts and other requirements for boat trailers.

    CE Smith logo

    Products specifications
    Length 5.83 inches
    Width 3.75 inches
    Length - Hole Centers 2.94 inches
    Width - Hole Centers 2.31 inches
