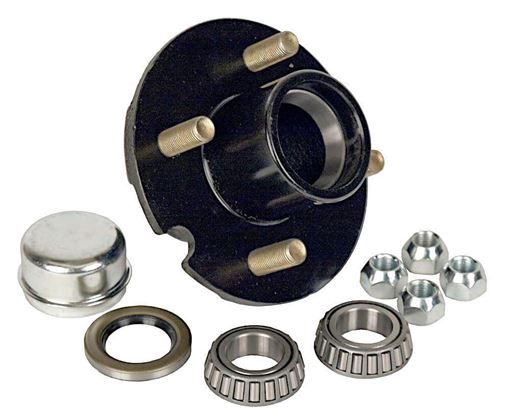

    4 Bolt Trailer Hub Kit for 1-1/16" Spindle, 1150 Lbs. Capacity, Reliable HSH46

    Manufacturer: Reliable Machine
    Complete 4 Hole Trailer Hub Kit. Fits 1-1/16" axle spindle, 1150 lbs. capacity, demountable. This high speed trailer hub is ideal for highway rated trailers. The trailer hub assembly includes: nuts, bolts, 2 bearings, 2 bearing cups, 1 grease seal and a dust cap. Specs: bolt size: 4 stud, inner bearing size: 1-1/16" part LM44649, outer bearing size: 1-1/16" part LM44649, hub length: 4-1/8", distance between races: 2-7/16", hub capacity: 1150 lbs.
    SKU: HSH46
    Manufacturer part number: HSH46
    Availability: In stock
    $58.95
    $39.99
    i h

    Reliable Tool & Machine 4 Bolt Trailer Hub Kit for 1-1/16" Spindle, part HSH46

    Repair or replace your worn or damaged trailer hub assembly. This high speed trailer hub is ideal for highway rated trailers.

    Included:

    • 4 Hole Hub, part # 230017
    • 4 Nuts
    • 4 Bolts
    • 2 Bearings
    • 2 Bearing Cups
    • 1 Grease Seal
    • 1 Dust Cap

    Specs:

    • Bolt size: 4 stud
    • Inner bearing size: 1-1/16", part # LM44649
    • Outer Bearing size: 1-1/16", part $ LM44649
    • Hub length: 4-1/8"
    • Distance between races: 2-7/16"
    • Hub capacity: 1150 lbs.



    trailer hubs measuring bolt patterns

    Wheel Hub Parts Guide:

    Tailer Wheel Hub Guide

    Reliable Machine has been providing quality machining, welding, and assembled products since 1946.  Serving the construction, trailer, lawn care and agriculture industries.

    Reliable Machine logo

    Reliable Tool & Machine 4 Bolt Trailer Hub Kit for 1-1/16" Spindle, part HSH46

    Repair or replace your worn or damaged trailer hub assembly. This high speed trailer hub is ideal for highway rated trailers.

    Included:

    • 4 Hole Hub, part # 230017
    • 4 Nuts
    • 4 Bolts
    • 2 Bearings
    • 2 Bearing Cups
    • 1 Grease Seal
    • 1 Dust Cap

    Specs:

    • Bolt size: 4 stud
    • Inner bearing size: 1-1/16", part # LM44649
    • Outer Bearing size: 1-1/16", part $ LM44649
    • Hub length: 4-1/8"
    • Distance between races: 2-7/16"
    • Hub capacity: 1150 lbs.



    trailer hubs measuring bolt patterns

    Wheel Hub Parts Guide:

    Tailer Wheel Hub Guide

    Reliable Machine has been providing quality machining, welding, and assembled products since 1946.  Serving the construction, trailer, lawn care and agriculture industries.

    Reliable Machine logo

    Products specifications
    Capacity 1,150 lbs.
    Bolt Pattern 4 Bolts
