Trailer Axles

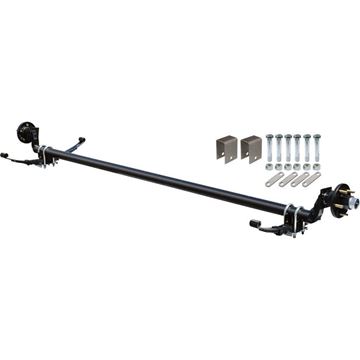

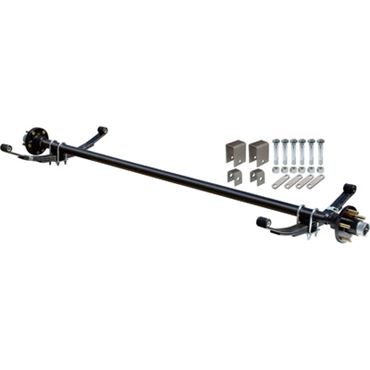

This complete trailer axle kit offers durable welded spring seats with double eye springs for smooth riding comfort. This kit includes springs, shackles, U-bolts, hangers, hubs, hardware, castle nuts, cotter pins and washers. Made in the U.S.A. by Ultra-Tow™. Assembly required.

FLEXIRIDE suspension units completely eliminate the existing springs and axle and allows independent suspension for each wheel. Base plates are welded to cross members (checking tobe square with frame).The FLEXIRIDE arm is then bolted to the base plate with the arm extending to rear of trailer. Will fit any width trailer. Sold as pair (L&R) *Base capacity per pair: 1400 lbs *Base plates soldseparately (#FR306) *Spindle bearing size: 1-1/16"(#LM44649). Kits do not include spindle nuts, washers orcotter pins.

FLEXIRIDE suspension units completely eliminate the existing springs and axle and allows independent suspension for each wheel. Base plates are welded to cross members (checking tobe square with frame).The FLEXIRIDE arm is then bolted to the base plate with the arm extending to rear of trailer. Will fit any width trailer. Sold as pair (L&R) *Base capacity per pair: 2000 lbs *Base plates soldseparately (#FR306) *Spindle bearing size: 1-1/16"(#LM44649). Kits do not include spindle nuts, washers orcotter pins.

FLEXIRIDE suspension units completely eliminate the existing springs and axle and allows independent suspension for each wheel. Base plates are welded to cross members (checking tobe square with frame).The FLEXIRIDE arm is then bolted to the base plate with the arm extending to rear of trailer. Will fit any width trailer. Sold as pair (L&R) *Base capacity per pair: 935 lbs *Base plates soldseparately (#FR302) *Spindle bearing size: 1"(#LM44643). Kits do not include spindle nuts, washers orcotter pins.

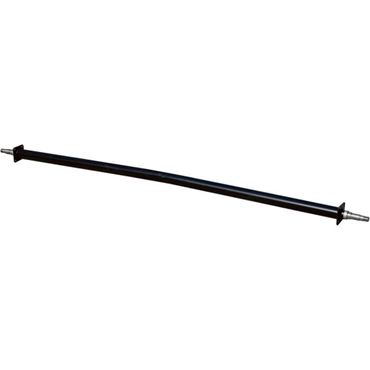

Round Axle 2000 Lb. capacity, 48" Hub Face, 1-1/16" Spindle This is JUST THE AXLE ONLY.  Hardware, accessories, Hubs, Springs or anything else is NOT included.

Round Axle 2000 Lb, 54" Hub Face, 1-1/16" Spindle This is JUST THE AXLE ONLY. Hardware, accessories, Hubs, Springs or anything else is NOT included.

Round Axle 2000 Lb., 60" Hub Face, 1-1/16" Spindle This is JUST THE AXLE ONLY. Hardware, accessories, Hubs, Springs or anything else is NOT included.

Round Axle 2000 Lb., 64" Hub Face, 1-1/16" Spindle This is JUST THE AXLE ONLY. Hardware, accessories, Hubs, Springs or anything else is NOT included.

Round Axle 2000 Lb., 72" Hub Face, 1-1/16" Spindle This is JUST THE AXLE ONLY. Hardware, accessories, Hubs, Springs or anything else is NOT included.

Round Axle 2000 Lb., 84" Hub Face 1-1/16" Spindle This is JUST THE AXLE ONLY. Hardware, accessories, Hubs, Springs or anything else is NOT included.

Trailer Axle - Brake Flanged "H" Series. 3500 Lb. Capacity, Hub Face 60", 2-3/8" Diameter Tubing, Track width:  60", Spring center flange: 42"-48", Overall length: 65", Hub used: HSH545. Spindle: 1-3/8" - 1-1/16" stepped. This is JUST THE AXLE ONLY. Hardware, accessories, Hubs, Springs or anything else is NOT included.

Trailer Axle - Brake Flanged - "H" Series. 3500 Lb. Capacity. 2-3/8" Diameter Tubing Track width: 72". Spring center flange: 54" - 60". Overall length: 77". Hub used: HSH545. Spindle: 1-3/8" - 1-1/16" stepped. This is JUST THE AXLE ONLY. Hardware, accessories, Hubs, Springs or anything else is NOT included.

Trailer Axle - Brake Flanged - "H" Series. 3500 Lb. Capacity. 2-3/8" Diameter Tubing. Track width: 84". Spring center flange: 66" - 72". Overall length: 89". Hub used: HSH545. Spindle: 1-3/8" - 1-1/16" stepped. This is JUST THE AXLE ONLY. Hardware, accessories, Hubs, Springs or anything else is NOT included.

Trailer Axles - Brake Flanged - "H" Series. 3500 Lb. Capacity. Hub Face 88". 2-3/8" Diameter Tubing. Track Width: 88". Spring Center Flange: 70" - 74". Overall Length: 93". Hub Used: HSH545. Spindle: 1-3/8" - 1-1/16" Stepped. 4" Drop. This is JUST THE AXLE ONLY. Hardware, accessories, Hubs, Springs or anything else is NOT included.

Trailer Axle - Brake Flanged 7000 Lb. Capacity. Hub Face 86". 3" Diameter. Track width: 88" Spring center flange: 70"-74". Overall length: 92". Spindle: 1-3/4" - 1-1/4" stepped. This is JUST THE AXLE ONLY. Hardware, accessories, Hubs, Springs or anything else is NOT included.

Trailer Axle - Brake Flanged 7000 Lb. Capacity. Hub Face 90". 3" Diameter Tubing. Track width: 92". Spring center flange: 74"-76". Overall length: 96". Spindle: 1-3/4" - 1-1/4" stepped This is JUST THE AXLE ONLY. Hardware, accessories, Hubs, Springs or anything else is NOT included.
