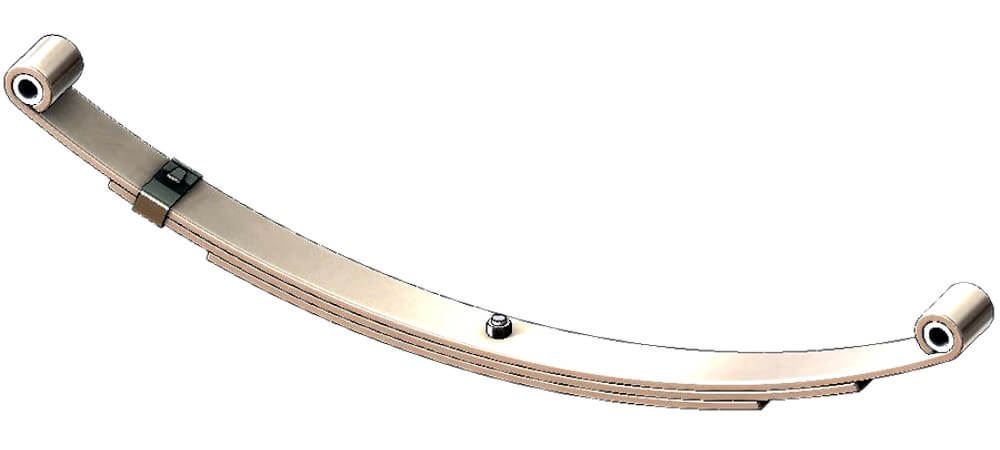

    Axle Double Eye Spring, 650 lbs, 3 Leaf, 30" Length, UCF UNA-035

    Manufacturer: UCF
    Trailer Axle Double Eye Leaf Spring. 29.70" Long x 1-3/4" Wide. Capacity (per spring): 650 lbs. Number of leaves: 3. Unloaded length: 29.70". Center eye to spring bolt: 15.63". Spring bolt to spring end: 15.63". Note: Bushing sold separately (Part# LSB2)
    SKU: DES0630
    Manufacturer part number: UNA-035
    Availability: In stock
    $73.49
    $48.99
    i h

    Universal Group Trailer Axle Double Eye Leaf Spring, part UNA-035

    Trailer axle springs can be replaced with relative ease and are offered in various sizes and measurements. The leaf spring is design to mount to the trailer frame with a hanger or hanger kit and to the axle with a u-bolt and tie plate kit.  Made from durable steel construction, these leaf springs are desgined to flex to absord road shock and bumps to provide a smooth ride and reduce wear and tear on your trailer.

    Double Eye Leaf Spring: 29" Long by 1-3/4" Wide

    Features:

    • Leaf spring acts as part of your trailer's suspension system
      • Provides attachment point for your trailer's axle
    • Multiple leaves allow flexibility to absorb road shock
      • Allows for a smooth ride
      • Reduces wear and tear on trailer
      • Ensures level ride on bumpy and uneven surfaces
    • Sturdy steel construction
    • Nylon bushing sold separately (Part# LSB2)
    • Pre-mounted hangers or aftermarket hanger kit (sold separately) required for installation
      • Spring attaches to hanger mounted on trailer frame at one end
      • Other end connects to shackle straps suspended from hanger or equalizer

    Specs:

    • Quantity: 1 leaf spring
    • Spring capacity: 650 lbs
    • Axle capacity: 1,300 lbs
    • Number of leaves: 3
    • Unloaded length (c): 29.70"
      • Length is from center of spring eye to center of spring eye
    • Spring width: 1-3/4"
    • Eye diameter with bushing: 9/16"
      • Eye diameter without bushing: 7/8"
    • Leaf thickness: 1/4"
    • Center eye to spring bolt (a): 15.63"
    • Spring bolt to spring end (b): 15.63"
    • Arch height (h): 4"

    leaf spring diagram

    The Universal Group, also known as UCF, supplies trailer axle leaf springs, bearings, seals and related suspension components to the light, medium and heavy duty truck and trailer replacement market.

    The Universal Group logo

    Universal Group Trailer Axle Double Eye Leaf Spring, part UNA-035

    Trailer axle springs can be replaced with relative ease and are offered in various sizes and measurements. The leaf spring is design to mount to the trailer frame with a hanger or hanger kit and to the axle with a u-bolt and tie plate kit.  Made from durable steel construction, these leaf springs are desgined to flex to absord road shock and bumps to provide a smooth ride and reduce wear and tear on your trailer.

    Double Eye Leaf Spring: 29" Long by 1-3/4" Wide

    Features:

    • Leaf spring acts as part of your trailer's suspension system
      • Provides attachment point for your trailer's axle
    • Multiple leaves allow flexibility to absorb road shock
      • Allows for a smooth ride
      • Reduces wear and tear on trailer
      • Ensures level ride on bumpy and uneven surfaces
    • Sturdy steel construction
    • Nylon bushing sold separately (Part# LSB2)
    • Pre-mounted hangers or aftermarket hanger kit (sold separately) required for installation
      • Spring attaches to hanger mounted on trailer frame at one end
      • Other end connects to shackle straps suspended from hanger or equalizer

    Specs:

    • Quantity: 1 leaf spring
    • Spring capacity: 650 lbs
    • Axle capacity: 1,300 lbs
    • Number of leaves: 3
    • Unloaded length (c): 29.70"
      • Length is from center of spring eye to center of spring eye
    • Spring width: 1-3/4"
    • Eye diameter with bushing: 9/16"
      • Eye diameter without bushing: 7/8"
    • Leaf thickness: 1/4"
    • Center eye to spring bolt (a): 15.63"
    • Spring bolt to spring end (b): 15.63"
    • Arch height (h): 4"

    leaf spring diagram

    The Universal Group, also known as UCF, supplies trailer axle leaf springs, bearings, seals and related suspension components to the light, medium and heavy duty truck and trailer replacement market.

    The Universal Group logo

    Products specifications
    Length 30 inches
    Capacity 650 lbs.
