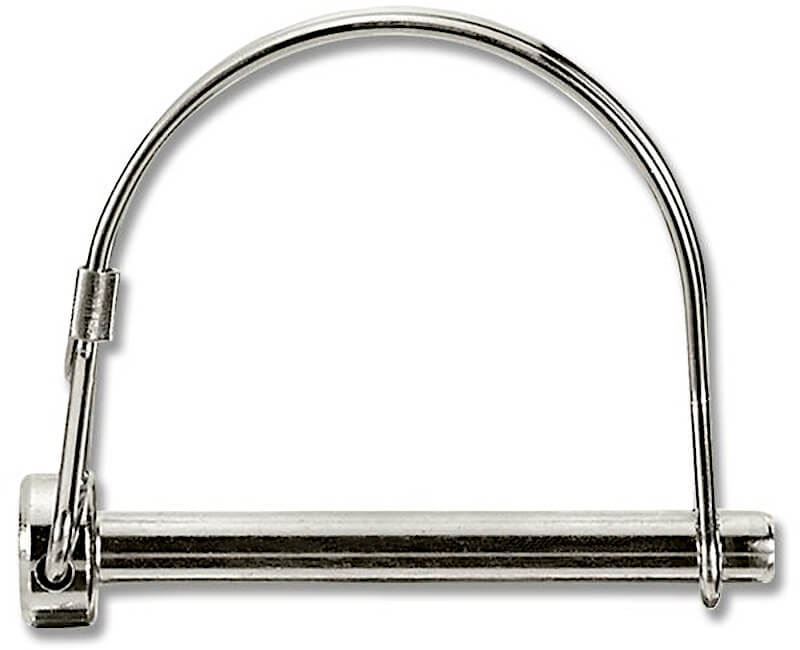

    Trailer Wire Lock Pin 1/4" x 2" Round, Pivot Point WIRE-1RD

    Manufacturer: Pivot Point
    This wire lock pin is used as a convenient way to fasten accessories on truck equipment. Pull the wire loop over the pin to lock it in place. It quickly releases for easy removal. These Yellow zinc-plated for corrosion resistance. Usable pin length: 1.75", Pin diameter: 0.243" to 0.248"", Overall pin length: 2", Loop clearance: 1.625".
    SKU: PT110
    Manufacturer part number: WIRE-1RD
    Availability: In stock
    $2.99
    $2.49
    i h

    Pivot Point Round Trailer Wire Lock Pin, part WIRE-1RD

    Pivot Point Wire Lock Pins are used as a convenient way to fasten accessories on truck equipment. Wire lock pins join the benefits of a pin and cotter combination in a single assembly.

    Simply pull the wire loop over the pin to lock it in place. It quickly releases for easy removal. These wire lock pins are yellow zinc-plated for corrosion resistance.

    Specs:

    • Usable pin length (C): 1.75"
    • Pin diameter (A): 0.243" to 0.248"
    • Overall pin length (B): 2"
    • Loop clearance (E): 1.625"
    • Wire diameter (D): 0.091"
    • Head Diameter (F): 0.485"
    • Head Height (G): 0.235"
    • Material: Zinc Plated Steel
    • Finish: Zinc Plated
    • Wire Loop Shape: Round
    • Sold individually


    Quick-Release Wire lock pins are like having pin and cotter in one secure assembly! The wire loop is pulled over the end of the pin to lock it in place or remove it. As a one-piece quick locking pin, Wire Lock Pins eliminate cotter pin loss and fit most Quick-Release applications. These quick locking pins do not require cotter pins and are faster to use than clevis pins and cotters.

    Also known as: PTO Pins, Snapper Pins, Hitch Pins and Quick Pins

    wire pin diagram drawing

    pivot point logo

    Pivot Point Round Trailer Wire Lock Pin, part WIRE-1RD

    Pivot Point Wire Lock Pins are used as a convenient way to fasten accessories on truck equipment. Wire lock pins join the benefits of a pin and cotter combination in a single assembly.

    Simply pull the wire loop over the pin to lock it in place. It quickly releases for easy removal. These wire lock pins are yellow zinc-plated for corrosion resistance.

    Specs:

    • Usable pin length (C): 1.75"
    • Pin diameter (A): 0.243" to 0.248"
    • Overall pin length (B): 2"
    • Loop clearance (E): 1.625"
    • Wire diameter (D): 0.091"
    • Head Diameter (F): 0.485"
    • Head Height (G): 0.235"
    • Material: Zinc Plated Steel
    • Finish: Zinc Plated
    • Wire Loop Shape: Round
    • Sold individually


    Quick-Release Wire lock pins are like having pin and cotter in one secure assembly! The wire loop is pulled over the end of the pin to lock it in place or remove it. As a one-piece quick locking pin, Wire Lock Pins eliminate cotter pin loss and fit most Quick-Release applications. These quick locking pins do not require cotter pins and are faster to use than clevis pins and cotters.

    Also known as: PTO Pins, Snapper Pins, Hitch Pins and Quick Pins

    wire pin diagram drawing

    pivot point logo

    Products specifications
    Style Wire Lock Pin
    Length 2 inches
    Pin Diameter 1/4 inch
    Finish Zinc Plated
