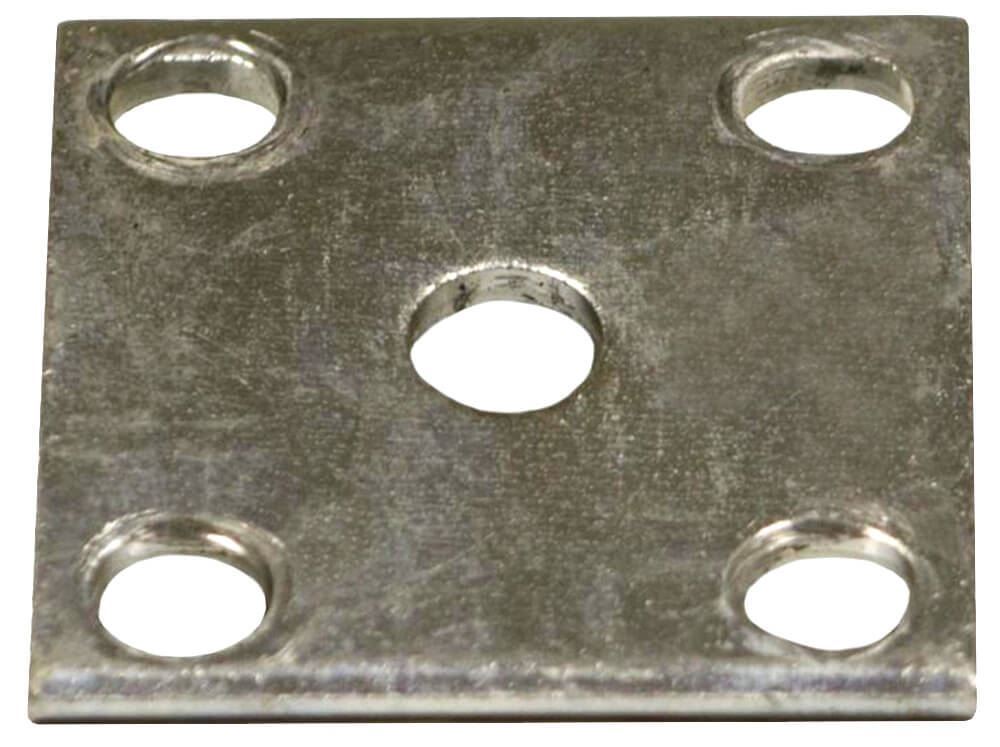

    Trailer Axle Tie Plate Round Axle, 3.5" by 3.5", Reliable TP-R-120

    Manufacturer: Reliable Machine
    Trailer axle tie plate for round axle. 3.5" length, 3.5" width, hole centers 2.25", hole diameter 0.5", accepts 1/2" U-bolt. Used together with U-Bolts and nuts to connect the leaf springs to the trailer axle.
    SKU: 230041
    Manufacturer part number: TP-R-120
    Availability: In stock
    $8.99
    $4.99
    i h

    Reliable Machine Trailer Axle Tie Plate for Round Axle, part TP-R-120

    Axle tie plates, which may also be called U-bolt tie plates, are used together with U-Bolts and nuts to connect the leaf springs to the trailer axle. These are parts of the suspension system of the trailer suspension system.

    • A Length: 3.5 inches
    • B Hole Centers Long Side: 2.25 inches
    • C Hole Centers Short Side: 2.25 inches
    • D Width: 3.5 inches
    • Hole Diameter: 0.5 inch
    • Sold Each

    Accepts 1/2 inch U-bolt

    trailer axle tie plate dimensions

    Reliable Machine has been providing quality machining, welding, and assembled products since 1946.  Serving the construction, trailer, lawn care and agriculture industries.

    Reliable Machine logo

    Reliable Machine Trailer Axle Tie Plate for Round Axle, part TP-R-120

    Axle tie plates, which may also be called U-bolt tie plates, are used together with U-Bolts and nuts to connect the leaf springs to the trailer axle. These are parts of the suspension system of the trailer suspension system.

    • A Length: 3.5 inches
    • B Hole Centers Long Side: 2.25 inches
    • C Hole Centers Short Side: 2.25 inches
    • D Width: 3.5 inches
    • Hole Diameter: 0.5 inch
    • Sold Each

    Accepts 1/2 inch U-bolt

    trailer axle tie plate dimensions

    Reliable Machine has been providing quality machining, welding, and assembled products since 1946.  Serving the construction, trailer, lawn care and agriculture industries.

    Reliable Machine logo

    Products specifications
    Length 3.5 inches
    Width 2.25 inches
    Length - Hole Centers 3.5 inches
    Width - Hole Centers 2.25 inches
