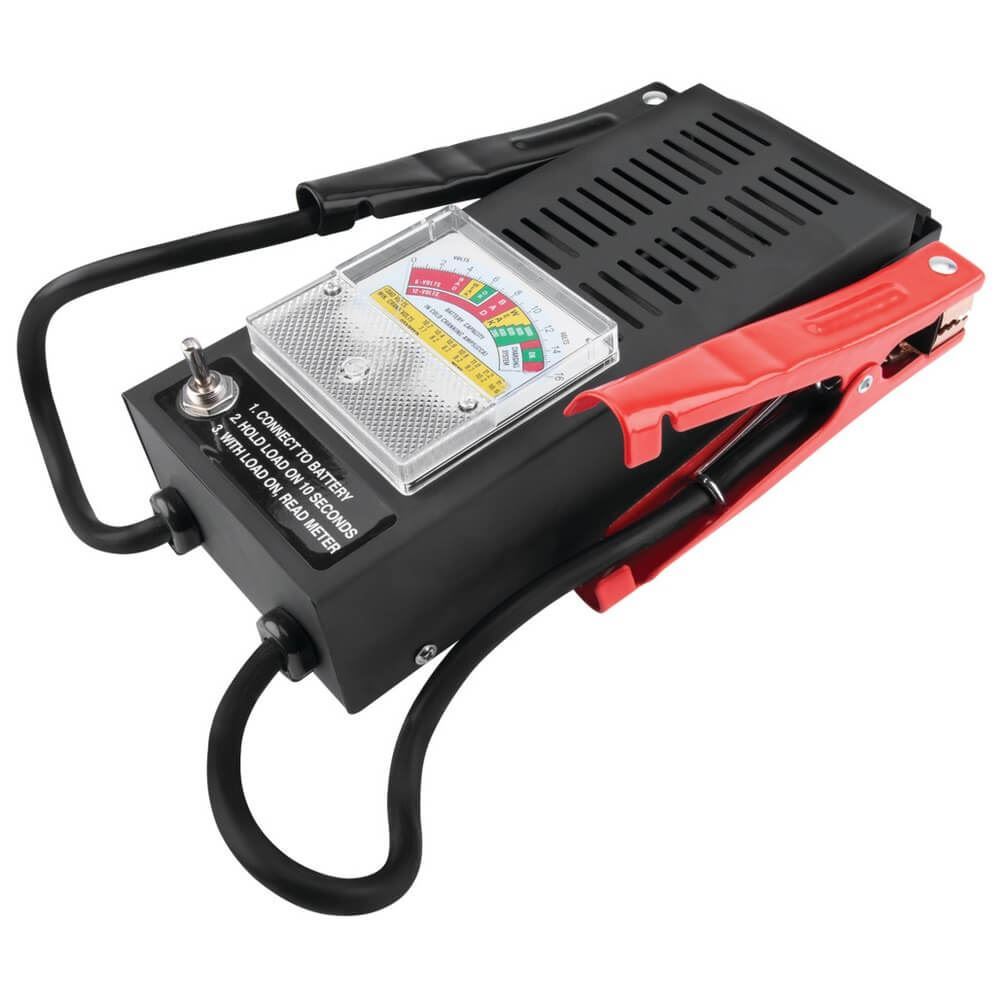

Performance Tool W2988 100 Amp Battery Load Tester
The Performance Tool W2988 load tester takes the guesswork out of a weak battery. It performs both a voltage test and a 15-second load test at 100 amps, and checks the charging system as well, so you can tell a tired battery from a charging problem before you replace the wrong part.
Key Features
- Tests battery condition and charging system condition
- Performs a voltage test and a 15-second battery load test
- 100 amp load capacity
- Works on both 6 volt and 12 volt batteries
- Analog meter with color-coded zones for a quick good/bad read
- Extra heavy leads with strain relief
- Color-coded, insulated, copper plated steel clamps
Specifications
- Load capacity: 100 Amp
- Battery systems: 6 V and 12 V
- Tests: voltage test and 15-second load test
- Leads: extra heavy, with strain relief
- Clamps: color-coded, insulated, copper plated steel
- Weight: 2.70 lb
Important Purchase Notes
The tester is powered by the battery under test, so there are no batteries to replace in the tool itself. Performance Tool does not publish a CCA rating or a lead length for this tester; if your battery's cold cranking amps are a concern, compare against the 100 amp load figure above.
Frequently Asked Questions
How long does the load test take?
The load test runs for 15 seconds at 100 amps, next to a straight voltage test.
Does it test the charging system too?
Yes. Along with battery condition, the W2988 checks the condition of the charging system.
Will it work on a 6 volt battery?
Yes. It is made for both 6 volt and 12 volt batteries.
