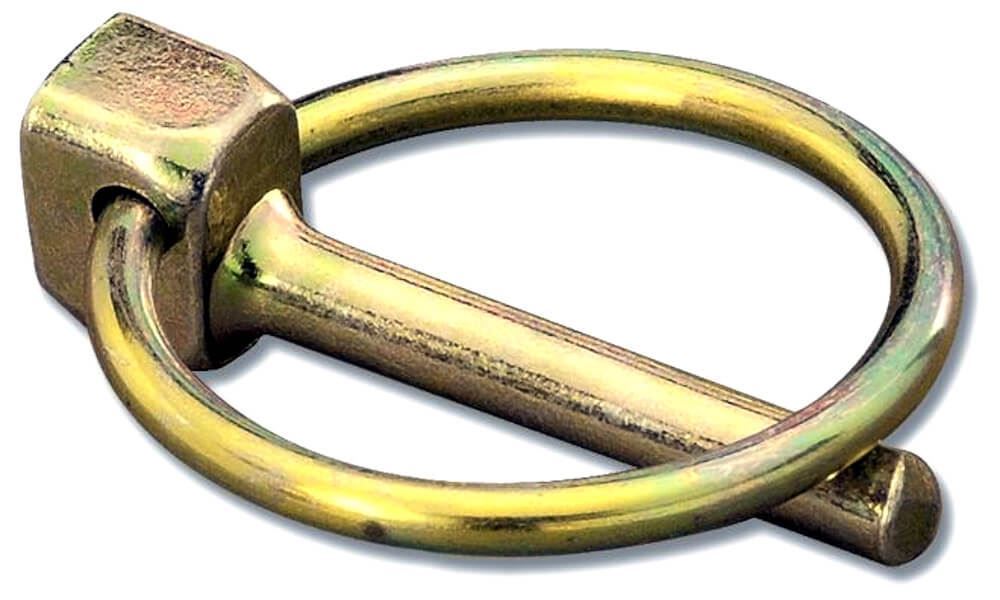

    Trailer Lynch Pin 5/16" x 1-3/4" Zinc Plated Steel, Pivot Point HANG-6

    Manufacturer: Pivot Point
    This lynch pin is yellow zinc-plated for corrosion resistance. Ideal for utility trailers, cargo trailer doors and windows, and lawn equipment. Usable pin length: 1-3/8", pin diameter: 5/16", overall pin length: 1.75".
    SKU: PT225
    Manufacturer part number: HANG-6
    Availability: In stock
    $2.99
    $1.99
    i h

    Zinc Plated Carbon Steel Trailer Lynch Pin, part HANG-6

    Lynch Pins are made from low carbon steel, and plated zinc with a yellow chromate dip for added corrosion protection. Ideal for utility trailers, cargo trailer doors and windows, and lawn equipment. Various sizes are available to fit your application.

    Specs:

    • Capture length (E): 1-3/8"
    • Pin diameter (A): 5/16"
    • Overall pin length (B): 1.75"
    • Head Height (C): 1/2"
    • Head Width (D): 0.344"
    • Wire Diameter (F): 0.138"
    • Material: Carbon Steel
    • Finish: Yellow Zinc Plated
    • Sold individually

    Common Use: Utility Trailers, Cargo Trailers, Lawn Equipment

    These quick locking pins do not require cotter pins and are faster to use than clevis pins and cotters. The ring is made from hard drawn MB spring wire. Linch Pins feature an “over center” ring loop attached to the head which snaps down hard to hold the fastener in place.

    lynch pin diagram drawing

    Also known as: Linch Pins, 3 point hitch pins, Quick Pins, Click Pins and Snapper Pins.

    pivot point logo

    Zinc Plated Carbon Steel Trailer Lynch Pin, part HANG-6

    Lynch Pins are made from low carbon steel, and plated zinc with a yellow chromate dip for added corrosion protection. Ideal for utility trailers, cargo trailer doors and windows, and lawn equipment. Various sizes are available to fit your application.

    Specs:

    • Capture length (E): 1-3/8"
    • Pin diameter (A): 5/16"
    • Overall pin length (B): 1.75"
    • Head Height (C): 1/2"
    • Head Width (D): 0.344"
    • Wire Diameter (F): 0.138"
    • Material: Carbon Steel
    • Finish: Yellow Zinc Plated
    • Sold individually

    Common Use: Utility Trailers, Cargo Trailers, Lawn Equipment

    These quick locking pins do not require cotter pins and are faster to use than clevis pins and cotters. The ring is made from hard drawn MB spring wire. Linch Pins feature an “over center” ring loop attached to the head which snaps down hard to hold the fastener in place.

    lynch pin diagram drawing

    Also known as: Linch Pins, 3 point hitch pins, Quick Pins, Click Pins and Snapper Pins.

    pivot point logo

    Products specifications
    Style Lynch Pin
    Length 1.75 inches
    Finish Zinc Plated
