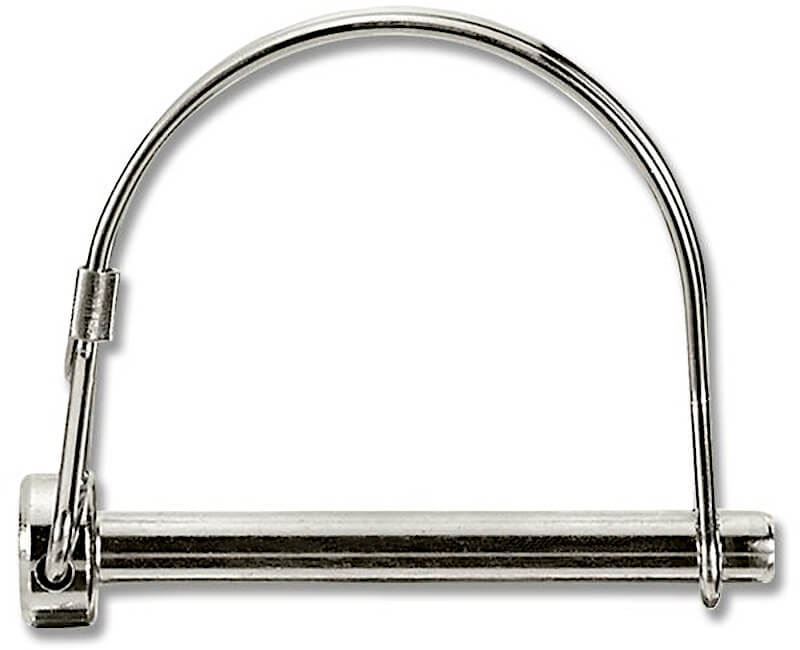

Trailer Wire Lock Pin 5/16" x 2-3/4" Round, Pivot Point WIRE-3RD

Pivot Point Round Trailer Wire Lock Pin, part WIRE-3RD

Pivot Point Wire Lock Pins are used as a convenient way to fasten accessories on truck equipment. Wire lock pins join the benefits of a pin and cotter combination in a single assembly.

Simply pull the wire loop over the pin to lock it in place. It quickly releases for easy removal. These wire lock pins are zinc-plated for corrosion resistance.

Specs:

• Nominal Size: 5/16 x 2-3/4"
• Usable pin length (C): 2.5"
• Pin diameter (A): 0.306" to 0.311"
• Overall pin length (B): 2.75"
• Loop clearance (E): 2"
• Wire diameter (D): 0.091"
• Head Diameter (F): 0.625"
• Head Height (G): 0.312"
• Material: Low carbon steel pin, hard drawn MB spring wire loop
• Finish: Zinc Plated
• Wire Loop Shape: Round
• Sold individually

Quick-Release Wire lock pins are like having pin and cotter in one secure assembly! The wire loop is pulled over the end of the pin to lock it in place or remove it. As a one-piece quick locking pin, Wire Lock Pins eliminate cotter pin loss and fit most Quick-Release applications. These quick locking pins do not require cotter pins and are faster to use than clevis pins and cotters.

Also known as: PTO Pins, Snapper Pins, Hitch Pins and Quick Pins
