UCF LM48510/LM48548 Bearing Cone and Cup Set for 1-3/8 in Spindle

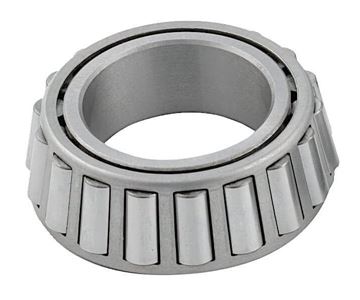

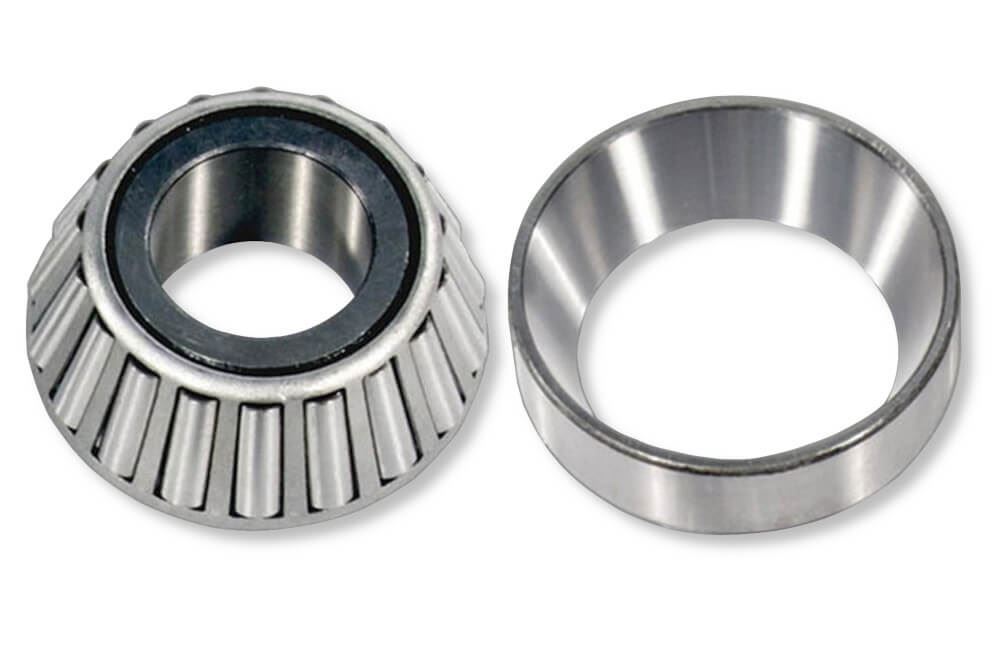

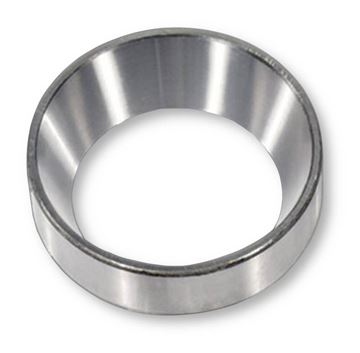

This set includes one LM48548 cone bearing and one LM48510 cup for a trailer wheel hub on a 1-3/8 in spindle. The cone and cup are the two separable parts of a single row tapered roller bearing.
Key Features
- Set includes one LM48548 cone bearing and one LM48510 cup
- Single row tapered roller bearing with separable cone and cup parts
- Stamped steel cage
- Cone bore of 1.3750 in for a 1-3/8 in spindle
- Assembled bearing width of 0.7100 in
Specifications
| Brand | UCF |
|---|
| Manufacturer Part Number | LM48510/LM48548 |
|---|
| Product Type | Tapered Roller Bearing Cone and Cup Set |
|---|
| Cone | LM48548 |
|---|
| Cup | LM48510 |
|---|
| Spindle Size | 1-3/8 in |
|---|
| Cone Bore Inside Diameter | 1.3750 in |
|---|
| Cone Width | 0.7200 in |
|---|
| Cup Outside Diameter | 2.5625 in |
|---|
| Cup Width | 0.5500 in |
|---|
| Assembled Bearing Width | 0.7100 in |
|---|
Compatibility
This set pairs the LM48548 cone, with a 1.3750 in bore, with the LM48510 cup for a 1-3/8 in spindle.
Important Purchase Notes
This set includes one cone bearing and one cup, enough for one bearing position. Confirm the spindle size and both component numbers before ordering.
Common Applications
Trailer wheel hub use on a 1-3/8 in spindle.
Frequently Asked Questions
What is included in this set?
One LM48548 cone bearing and one LM48510 cup.
What spindle size is this set for?
It is for a 1-3/8 in spindle, and the cone bore is 1.3750 in.
Does one set cover two bearing positions?
No. One set provides one cone and one cup for one bearing position. Bearings of this type are typically mounted in opposing pairs.
UCF is the trailer parts line of The Universal Group.
