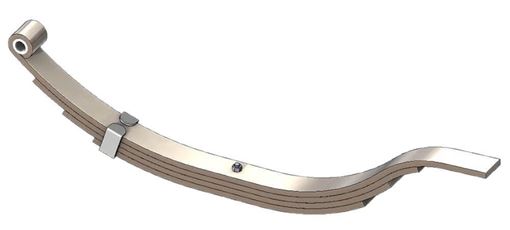

UCF UNA-040 Utility Trailer Leaf Spring, Flat End Slipper, 4 Leaf, 30 in, 1837 lb Capacity
This utility trailer leaf spring has a flat end slipper design with 4 leaves and a capacity of 1837 lb per spring. It has an up turned eye at End 1 and includes a PE-225 nylon bushing.
Key Features
- Flat end slipper end type
- 4 leaves, with no helper spring
- Up turned eye at End 1
- PE-225 nylon bushing included
- Standard suspension grade
Specifications
| Brand | UCF |
|---|
| Manufacturer Part Number | UNA-040 |
|---|
| Product Type | Utility Trailer Leaf Spring |
|---|
| End Type | Flat End Slipper |
|---|
| Leaf Count | 4 |
|---|
| Capacity Per Spring | 1837 lb |
|---|
| Free Length | 30 in |
|---|
| Leaf Width | 1.75 in |
|---|
| Free Arch | 4.88 in |
|---|
| End 1 Attachment | Up Turned Eye |
|---|
| End 1 Attachment Inside Diameter | 0.875 in |
|---|
| Bushing | PE-225, Nylon |
|---|
| Bushing Inside Diameter | 0.5625 in |
|---|
| Helper Spring | No |
|---|
| Suspension Grade | Standard |
|---|
| Weight | 15.88 lb |
|---|
Compatibility
Match this spring by its 30 in free length, 1.75 in leaf width, flat end slipper end type and up turned eye dimensions before ordering.
Important Purchase Notes
Sold as a single spring. Capacity is rated at 1837 lb per spring, and the PE-225 nylon bushing is included.
Common Applications
Frequently Asked Questions
Is this spring sold individually or as a pair?
It is sold as a single spring, and the capacity is rated per spring.
What is the capacity of this spring?
The capacity is 1837 lb per spring.
Is a bushing included?
Yes. A PE-225 nylon bushing is included, with a 0.5625 in inside diameter.
