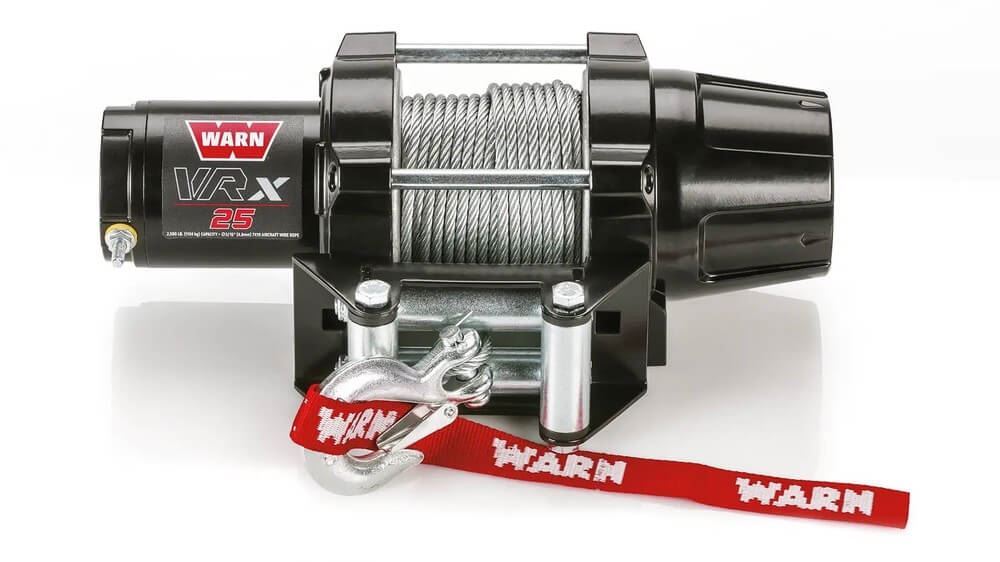

WARN VRX 25 Winch, 2,500 lb Capacity, Steel Rope
The WARN VRX 25 Winch, 2,500 lb Capacity, Steel Rope is built for ATV riders who want a compact 2,500 lb winch for trail recovery and work around camp or property. It pairs a 2,500 lb single-line rating with 50 ft of steel rope and IP68 waterproof sealing, so it keeps pulling in mud, water and dust.
Key Features
- 2,500 lb rated line pull (single line)
- 50 ft x 3/16 in steel rope
- All-metal 3-stage planetary gear train
- Clutch design based on WARN 4WD hub lock know-how, with free spooling
- IP68 waterproof sealing keeps water and dirt out
- Roller fairlead and zinc plated hook
- Handlebar-mounted rocker switch
Specifications
- Manufacturer Part Number: 101025
- Rated line pull: 2,500 lb (single line)
- Rope: 50 ft x 0.1875 in (3/16 in) steel
- Motor: 12V DC permanent magnet
- Gear train: 3-stage planetary, all-metal; gear ratio 153:1
- Brake: Load-holding mechanical brake, automatic
- Sealing: IP68 waterproof
- Fairlead: Roller
- Control: Handlebar-mounted rocker switch
- Mounting bolt pattern: 3 in x 4.87 in
- Winch dimensions: 13.1 in L x 4.7 in W x 4.7 in H
- Finish: Semi-gloss black powder-coated finish, stainless steel fasteners
- Includes: 50 ft x 3/16 in steel rope; Roller fairlead; Zinc plated hook; Handlebar-mounted rocker switch
Compatibility
Built for ATVs. Check the 3 in x 4.87 in mounting bolt pattern against your winch mount or bumper before ordering, and confirm the winch dimensions (13.1 in L x 4.7 in W x 4.7 in H) fit your mounting space.
Important Purchase Notes
This winch does not include a vehicle mounting kit. A vehicle-specific winch mount or winch-compatible bumper matched to the 3 in x 4.87 in mounting pattern is required for installation and is sold separately.
Common Applications
Pulling a stuck quad back onto the trail and lifting an ATV snow plow.
Recommended Related Parts
Pairs with a vehicle-specific winch mounting kit, plus standard rigging such as a tree trunk protector strap and a snatch block for angled or heavier pulls.
Frequently Asked Questions
What vehicles is this winch made for?
It is built for ATVs, with a 2,500 lb single-line rating.
What rope does it come with?
It includes 50 ft x 0.1875 in (3/16 in) steel rope with a roller fairlead.
How is the winch controlled?
Control is by handlebar-mounted rocker switch.
