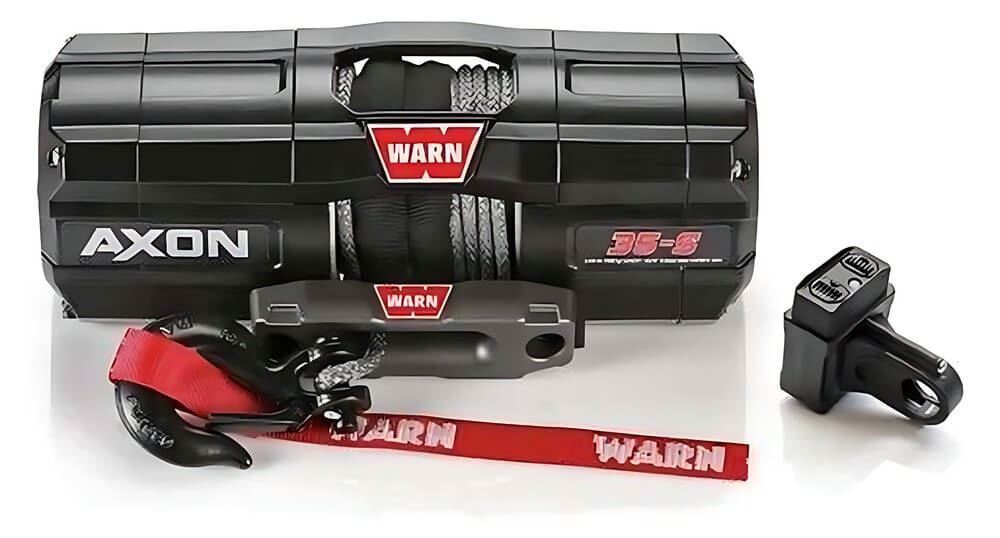

WARN AXON 35-S Winch, 3,500 lb Capacity, Synthetic Rope
The WARN AXON 35-S Winch, 3,500 lb Capacity, Synthetic Rope is built for riders who push a big ATV or smaller UTV hard and want digital control feedback with synthetic rope. It pairs a 3,500 lb single-line rating with 50 ft of synthetic rope and IP68 waterproof sealing, so it keeps pulling in mud, water and dust.
Key Features
- 3,500 lb rated line pull (single line)
- 50 ft x 3/16 in Spydura synthetic rope
- Motactor design combines the motor and digital contactor in one unit
- Digital control provides load and temperature feedback
- All-metal 3-stage planetary gear train
- Clutch design based on WARN 4WD hub lock know-how, with free spooling
- IP68 waterproof sealing keeps water and dirt out
- Epic hawse fairlead and black hook
- Rockerbar digital control switch with handlebar mount adaptor
- HUB Wireless Receiver sold separately
Specifications
- Manufacturer Part Number: 101130
- Rated line pull: 3,500 lb (single line)
- Rope: 50 ft x 0.1875 in (3/16 in) synthetic
- Motor: Motactor (motor + digital contactor) with 12V DC permanent magnet
- Gear train: 3-stage planetary, all-metal; gear ratio 168:1
- Brake: Load-holding brake, automatic
- Sealing: IP68 waterproof
- Fairlead: Epic hawse
- Control: Rockerbar digital control switch with handlebar mount adaptor
- Mounting bolt pattern: 3 in x 4.87 in
- Winch dimensions: 13.3 in L x 4.6 in W x 4.8 in H
- Finish: Satin black powder-coated finish, stainless steel fasteners
- Includes: 50 ft x 3/16 in Spydura synthetic rope; Epic hawse fairlead; Black hook; Rockerbar digital control switch with handlebar mount adaptor
Compatibility
Built for big ATVs and smaller UTVs. Check the 3 in x 4.87 in mounting bolt pattern against your winch mount or bumper before ordering, and confirm the winch dimensions (13.3 in L x 4.6 in W x 4.8 in H) fit your mounting space.
Important Purchase Notes
The HUB Wireless Receiver is sold separately. This winch is controlled with the included Rockerbar digital control switch. This winch does not include a vehicle mounting kit. A vehicle-specific winch mount or winch-compatible bumper matched to the 3 in x 4.87 in mounting pattern is required for installation and is sold separately.
Recommended Related Parts
Pairs with the WARN HUB Wireless Receiver for wireless control, a vehicle-specific winch mounting kit, and standard rigging such as a tree trunk protector strap and a snatch block.
Frequently Asked Questions
What vehicles is this winch made for?
It is built for big ATVs and smaller UTVs, with a 3,500 lb single-line rating.
What rope does it come with?
It includes 50 ft x 0.1875 in (3/16 in) synthetic rope with a hawse fairlead.
How is the winch controlled?
Control is by rockerbar digital control switch with handlebar mount adaptor. The HUB Wireless Receiver is sold separately.
