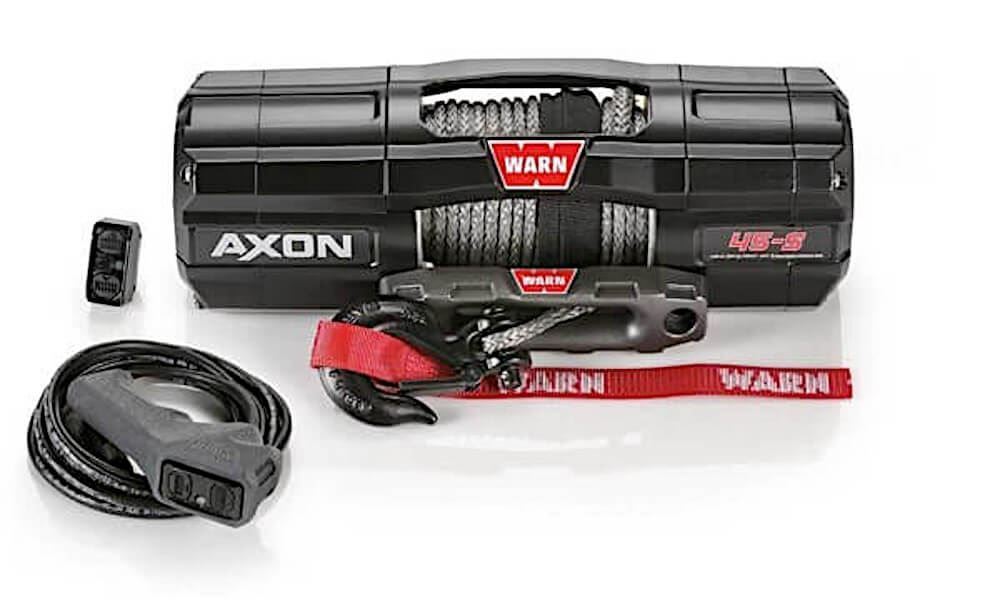

WARN AXON 45-S Winch, 4,500 lb Capacity, Synthetic Rope
The WARN AXON 45-S Winch, 4,500 lb Capacity, Synthetic Rope is built for UTV and Side x Side owners who want 4,500 lb capacity, synthetic rope, digital control and a wireless receiver included. It pairs a 4,500 lb single-line rating with 50 ft of synthetic rope and IP68 waterproof sealing, so it keeps pulling in mud, water and dust.
Key Features
- 4,500 lb rated line pull (single line)
- 50 ft x 1/4 in Spydura synthetic rope
- Motactor design combines the motor and digital contactor in one unit
- Digital control provides load and temperature feedback
- All-metal 3-stage planetary gear train
- Clutch design based on WARN 4WD hub lock know-how, with free spooling
- IP68 waterproof sealing keeps water and dirt out
- Epic hawse fairlead and black hook
- Rockerbar digital control switch
- HUB Wireless Receiver included
Specifications
- Manufacturer Part Number: 101140
- Rated line pull: 4,500 lb (single line)
- Rope: 50 ft x 0.25 in (1/4 in) synthetic
- Motor: Motactor (motor + digital contactor) with 12V DC permanent magnet
- Gear train: 3-stage planetary, all-metal; gear ratio 239:1
- Brake: Load-holding brake, automatic
- Sealing: IP68 waterproof
- Fairlead: Epic hawse
- Control: Rockerbar digital control switch
- Mounting bolt pattern: 3 in x 6.59 in
- Winch dimensions: 15.0 in L x 4.6 in W x 4.8 in H
- Finish: Satin black powder-coated finish, stainless steel fasteners
- Includes: 50 ft x 1/4 in Spydura synthetic rope; Epic hawse fairlead; Black hook; Rockerbar digital control switch; HUB Wireless Receiver
Compatibility
Built for UTVs and Side x Sides. Check the 3 in x 6.59 in mounting bolt pattern against your winch mount or bumper before ordering, and confirm the winch dimensions (15.0 in L x 4.6 in W x 4.8 in H) fit your mounting space.
Important Purchase Notes
This winch does not include a vehicle mounting kit. A vehicle-specific winch mount or winch-compatible bumper matched to the 3 in x 6.59 in mounting pattern is required for installation and is sold separately.
Frequently Asked Questions
What vehicles is this winch made for?
It is built for UTVs and Side x Sides, with a 4,500 lb single-line rating.
What rope does it come with?
It includes 50 ft x 0.25 in (1/4 in) synthetic rope with a hawse fairlead.
How is the winch controlled?
Control is by rockerbar digital control switch. The HUB Wireless Receiver is included.
WARN Industries builds winches, mounting systems and accessories for ATVs, UTVs and off-road vehicles. SiraWeb lists WARN parts by part number, with the fitment and specification details you need to order the right part the first time.
