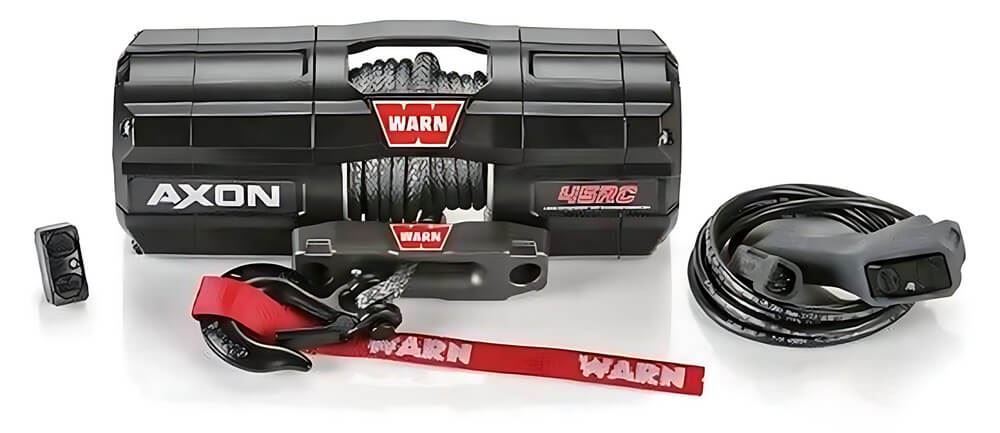

WARN AXON 45RC Winch, 4,500 lb Capacity, Synthetic Rope, Short Drum
The WARN AXON 45RC Winch, 4,500 lb Capacity, Synthetic Rope, Short Drum is built for sport Side x Side owners whose machine leaves little room for a full-width winch. It pairs a 4,500 lb single-line rating with 27 ft of synthetic rope and IP68 waterproof sealing, so it keeps pulling in mud, water and dust.
Key Features
- 4,500 lb rated line pull (single line)
- 27 ft x 1/4 in Spydura synthetic rope
- Motactor design combines the motor and digital contactor in one unit
- Digital control provides load and temperature feedback
- All-metal 3-stage planetary gear train
- Clutch design based on WARN 4WD hub lock know-how, with free spooling
- IP68 waterproof sealing keeps water and dirt out
- Epic hawse fairlead and black hook
- Rockerbar digital control switch
- HUB Wireless Receiver included
- Short drum configuration for a narrower overall width
Specifications
- Manufacturer Part Number: 101240
- Rated line pull: 4,500 lb (single line)
- Rope: 27 ft x 0.25 in (1/4 in) synthetic
- Motor: Motactor (motor + digital contactor) with 12V DC permanent magnet
- Brake: Load-holding brake, automatic
- Sealing: IP68 waterproof
- Fairlead: Epic hawse
- Control: Rockerbar digital control switch
- Mounting bolt pattern: 3 in x 4.9 in
- Winch dimensions: 13.3 in L x 4.8 in W x 4.6 in H
- Finish: Satin black powder-coated finish, stainless steel fasteners
- Includes: 27 ft x 1/4 in Spydura synthetic rope; Epic hawse fairlead; Black hook; Rockerbar digital control switch; HUB Wireless Receiver
Compatibility
Built for sport Side x Sides with limited mounting space. Check the 3 in x 4.9 in mounting bolt pattern against your winch mount or bumper before ordering, and confirm the winch dimensions (13.3 in L x 4.8 in W x 4.6 in H) fit your mounting space.
Important Purchase Notes
The short drum holds 27 ft of rope, less than the 50 ft on the standard-drum AXON 45 models, in exchange for a narrower overall width. This winch does not include a vehicle mounting kit. A vehicle-specific winch mount or winch-compatible bumper matched to the 3 in x 4.9 in mounting pattern is required for installation and is sold separately.
Frequently Asked Questions
What vehicles is this winch made for?
It is built for sport Side x Sides with limited mounting space, with a 4,500 lb single-line rating.
What rope does it come with?
It includes 27 ft x 0.25 in (1/4 in) synthetic rope with a hawse fairlead.
How is the winch controlled?
Control is by rockerbar digital control switch. The HUB Wireless Receiver is included.
