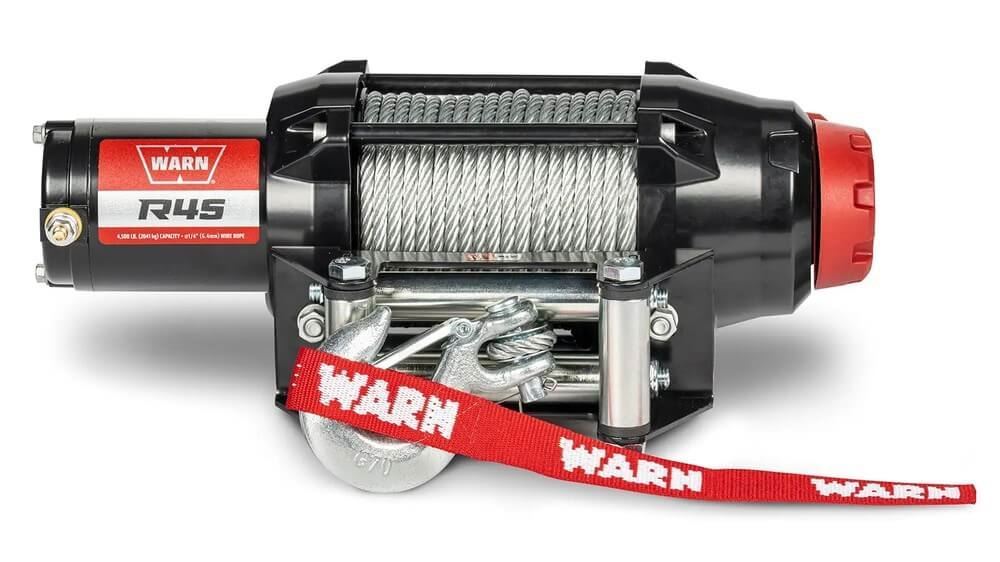

WARN R45 Winch, 4,500 lb Capacity, Steel Rope
The WARN R45 Winch, 4,500 lb Capacity, Steel Rope is built for UTV owners who want a value-priced 4,500 lb winch with steel rope and a corded remote included. It pairs a 4,500 lb single-line rating with 50 ft of steel rope and IP67 waterproof sealing, so it keeps pulling in mud, water and dust.
Key Features
- 4,500 lb rated line pull (single line)
- 50 ft x 1/4 in steel rope
- All-metal 3-stage planetary gear train
- All-metal construction with free spooling clutch dial on the end housing
- IP67 waterproof sealing keeps water and dirt out
- Roller fairlead and zinc plated hook
- Dash-mounted control switch
- Hand-held corded remote included
Specifications
- Manufacturer Part Number: 110045
- Rated line pull: 4,500 lb (single line)
- Rope: 50 ft x 0.25 in (1/4 in) steel
- Motor: 12V DC permanent magnet
- Gear train: 3-stage planetary, all-metal
- Brake: Automatic load-holding brake
- Sealing: IP67 waterproof
- Fairlead: Roller
- Control: Dash-mounted control switch
- Mounting bolt pattern: 3 in x 6.59 in
- Winch dimensions: 14.6 in L x 4.6 in W x 4.7 in H
- Fasteners: Zinc plated
- Includes: 50 ft x 1/4 in steel rope; Roller fairlead; Zinc plated hook; Corded remote; Dash-mounted control switch
Compatibility
Built for UTVs. Check the 3 in x 6.59 in mounting bolt pattern against your winch mount or bumper before ordering, and confirm the winch dimensions (14.6 in L x 4.6 in W x 4.7 in H) fit your mounting space.
Important Purchase Notes
This winch does not include a vehicle mounting kit. A vehicle-specific winch mount or winch-compatible bumper matched to the 3 in x 6.59 in mounting pattern is required for installation and is sold separately.
Recommended Related Parts
Pairs with a vehicle-specific winch mounting kit, plus standard rigging such as a tree trunk protector strap and a snatch block for angled or heavier pulls.
Frequently Asked Questions
What vehicles is this winch made for?
It is built for UTVs, with a 4,500 lb single-line rating.
What rope does it come with?
It includes 50 ft x 0.25 in (1/4 in) steel rope with a roller fairlead.
How is the winch controlled?
Control is by the included hand-held corded remote and the dash-mounted control switch.
WARN Industries builds winches, mounting systems and accessories for ATVs, UTVs and off-road vehicles. SiraWeb lists WARN parts by part number, with the fitment and specification details you need to order the right part the first time.
