5 Bolt Trailer Hub Kit for 1" Spindle, 700 lbs Capacity, Short, Reliable 1-150A-04-02
This complete short 5 bolt trailer hub kit fits a 1 in straight spindle and is rated at 700 lbs hub capacity. It is a high speed, demountable hub kit for highway rated trailers, with a shorter 3-1/2 in hub length.
Key Features

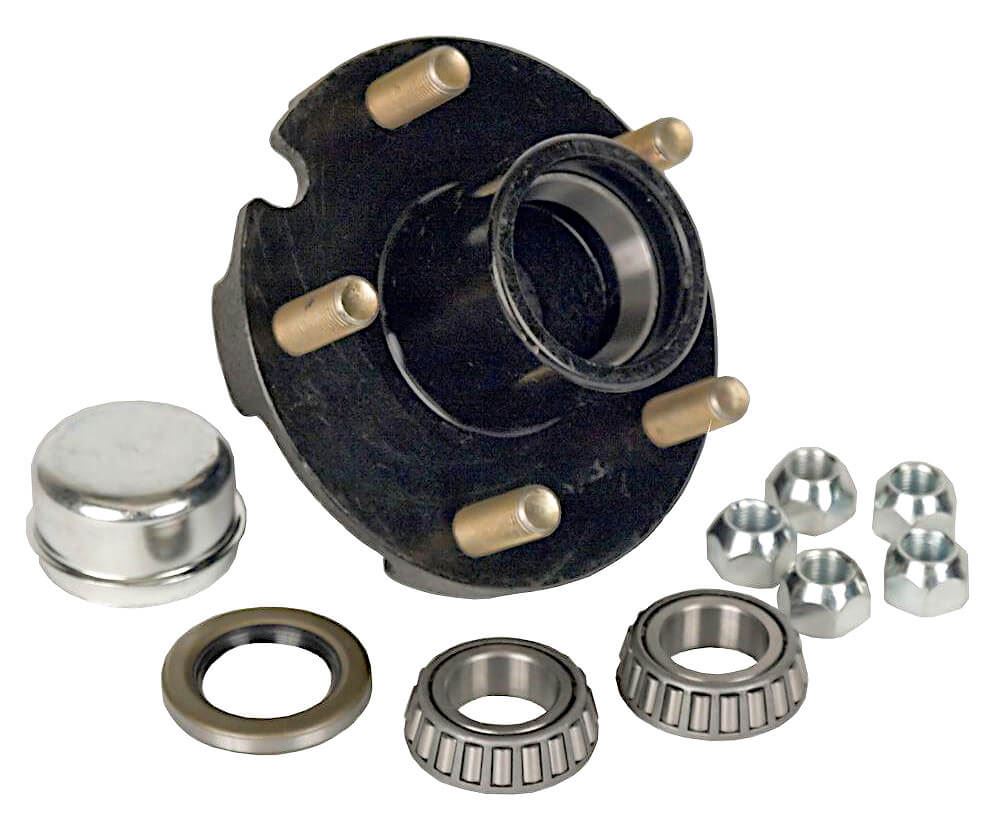

- Complete kit: 5 hole hub (part 230020), 5 nuts, 5 bolts, 2 bearings, 2 bearing cups, 1 grease seal and 1 dust cap included
- Short hub: 3-1/2 in hub length and 1-11/16 in between races
- LM44643 bearings used inner and outer on a 1 in straight spindle
- Demountable hub design
- High speed hub, ideal for highway rated trailers
- 700 lbs hub capacity
Specifications
| Brand | Reliable |
|---|
| Manufacturer Part Number | 1-150A-04-02 |
|---|
| Product Type | Trailer Hub Kit, Short |
|---|
| Hub Type | Demountable, Short |
|---|
| Bolt Count | 5 stud |
|---|
| Spindle Size | 1 in |
|---|
| Inner Bearing | LM44643, 1 in |
|---|
| Outer Bearing | LM44643, 1 in |
|---|
| Hub Part Number | 230020 |
|---|
| Hub Length | 3-1/2 in |
|---|
| Distance Between Races | 1-11/16 in |
|---|
| Hub Capacity | 700 lbs |
|---|
| Weight | 6.05 lb |
|---|
Compatibility
Match this kit to a 1 in straight spindle with short hub geometry, using LM44643 inner and outer bearings and a 5 bolt wheel pattern. Verify the spindle size, hub length and wheel pattern before ordering.
Important Purchase Notes
This is the short, 700 lbs variant. Check the hub length (3-1/2 in) and distance between races (1-11/16 in) against the old hub before purchase, and note that bolt circle diameter, stud thread size and grease seal size are not published for this kit.
Common Applications
Repair or replacement of a worn or damaged short hub on light highway rated trailers with 1 in spindles.
Why Buy This Part
This complete short hub kit includes the bearings, bearing cups, seal, dust cap, nuts and bolts for trailers whose hub geometry needs the short hub rather than the standard length version.
Frequently Asked Questions
What makes this hub kit the short version?
Its hub length is 3-1/2 in and the distance between races is 1-11/16 in, shorter than the standard length 1 in kits.
What is the capacity of this hub kit?
The 700 lbs rating is the hub capacity, per hub (one wheel end).
What is included in the kit?
The kit includes the 5 hole hub (part 230020), 5 nuts, 5 bolts, 2 bearings, 2 bearing cups, 1 grease seal and 1 dust cap.
