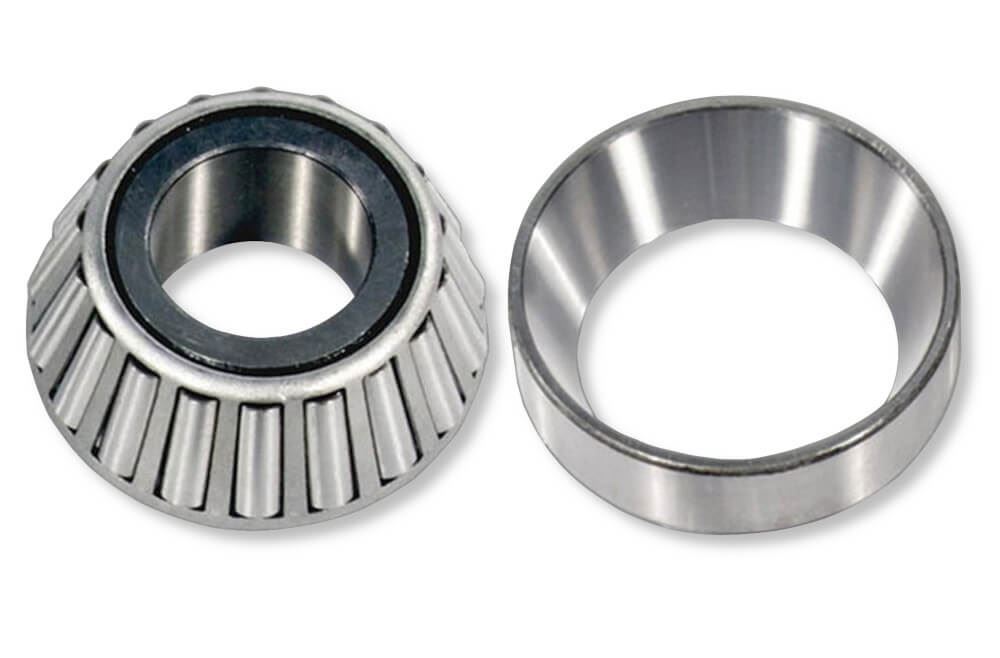

UCF LM11949/LM11910 Bearing Cone and Cup Set for 3/4 in Spindle
This set includes one LM11949 cone bearing and one LM11910 cup for a trailer wheel hub on a 3/4 in spindle. The cone and cup are the two parts of a tapered roller bearing and can be mounted separately.
Key Features
- Set includes one LM11949 cone bearing and one LM11910 cup
- Tapered roller bearing with separable cone and cup parts
- Stamped steel cage type
- Cone bore of 0.7500 in for a 3/4 in spindle
- Assembled bearing width of 0.6100 in
Specifications
| Brand | UCF |
|---|
| Manufacturer Part Number | LM11949/LM11910 |
|---|
| Product Type | Tapered Roller Bearing Cone and Cup Set |
|---|
| Cone | LM11949 |
|---|
| Cup | LM11910 |
|---|
| Spindle Size | 3/4 in |
|---|
| Cone Bore Inside Diameter | 0.7500 in |
|---|
| Cone Width | 0.6550 in |
|---|
| Cup Outside Diameter | 1.7810 in |
|---|
| Cup Width | 0.4750 in |
|---|
| Assembled Bearing Width | 0.6100 in |
|---|
Compatibility
This set pairs the LM11949 cone, with a 0.7500 in bore, with the LM11910 cup for a 3/4 in spindle.
Important Purchase Notes
This set includes one cone bearing and one cup, enough for one bearing position. Confirm the spindle size and both component numbers, LM11949 and LM11910, before ordering.
Common Applications
Trailer wheel hub use on a 3/4 in spindle.
Frequently Asked Questions
What is included in this set?
One LM11949 cone bearing and one LM11910 cup.
What spindle size is this set for?
It is for a 3/4 in spindle, and the cone bore is 0.7500 in.
Does one set cover two bearing positions?
No. One set provides one cone and one cup for one bearing position.
UCF is the trailer parts line of The Universal Group.
