UCF LM-11910 Tapered Roller Bearing Cup, 1.7810 in Outside Diameter

UCF LM-11910 Tapered Roller Bearing Cup, 1.7810 in Outside Diameter

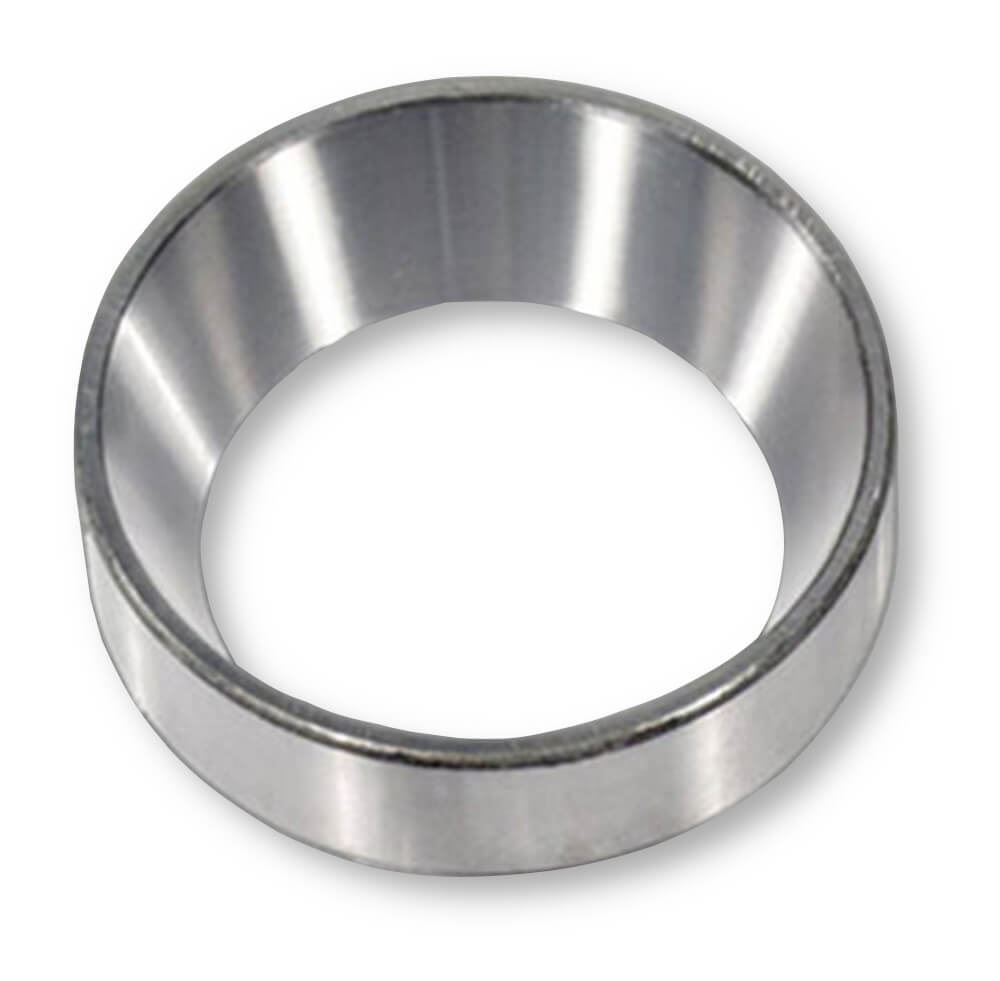

The UCF LM-11910 is a single tapered roller bearing cup, the outer ring of a tapered roller bearing, for trailer wheel hubs. It measures 1.7810 in in outside diameter and 0.4750 in in cup width, and it is supplied as the cup only.

Key Features

• Single tapered roller bearing cup (outer ring) only
• Separable design: the cone (inner ring) assembly is a separate part
• Imperial (inch) design dimensions
• Outside diameter 1.7810 in and cup width 0.4750 in

Specifications

Compatibility

This cup pairs with the LM11949 cone (0.7500 in bore, 3/4 in), for trailer hubs on 3/4 in spindles. In the Mullins axle identification bulletin it is the outer bearing cup in A type trailer axles, where the inner bearing uses the LM67048 cone with the LM-67010 cup.

Important Purchase Notes

This listing is for one single bearing cup (outer ring) only. No cone is included, and the mating cone is sold separately.

Common Applications

Trailer wheel hubs, as the outer bearing cup.

Recommended Related Parts

UCF LM11949 mating bearing cone.

UCF is the trailer parts line of The Universal Group.
