Axle Tie Plates & Tie Plate Kits
Axle tie plates and tie plate kits, the steel plates that clamp the axle to the leaf springs under the U-bolts, sized by axle tube diameter and spring width. The kits include the matched U-bolts, so a spring mounting can be renewed in one purchase.
Axle Tie Plate Flat Galvanized for 1/2" U-Bolt, CE Smith 20023GA
Flat trailer axle tie plate, galvanized 1/4" steel. 4" length, 3.81" width, hole centers 2.63" and 2.38", accepts 1/2" U-bolt. Used together with U-Bolts and nuts to connect the leaf springs to the trailer axle.
$5.99
$4.99

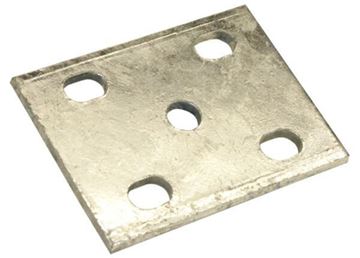

Axle Tie Plate Flat Galvanized for 1/2" U-Bolt, CE Smith 20044GA
Flat trailer axle tie plate, galvanized 1/4" steel. 5" length, 3.75" width, hole centers 2.75 " and 2.38", accepts 1/2" U-bolt. Used together with U-Bolts and nuts to connect the leaf springs to the trailer axle.
$5.99
$4.99

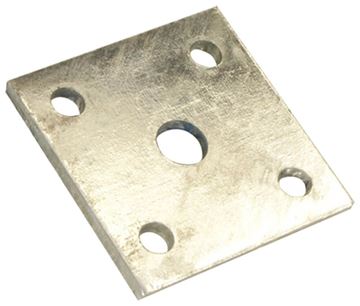

Axle Tie Plate Flat Galvanized for 3/8" U-Bolt, CE Smith 20015G
Flat trailer axle tie plate, galvanized 1/4" steel. 3.5" length, 3.5" width, hole centers 2.25", accepts 3/8" U-bolt. Used together with U-Bolts and nuts to connect the leaf springs to the trailer axle.
$4.99
$3.99

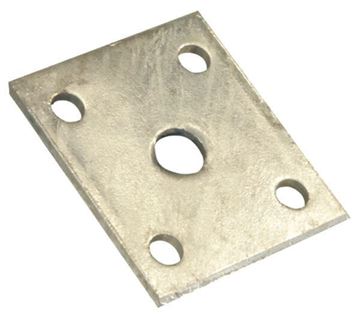

Axle Tie Plate Flat Galvanized for 3/8" U-Bolt, CE Smith 20022G
Flat trailer axle tie plate, galvanized 3/16" steel. 3.5" length, 3" width, hole centers 2.25" and 2", accepts 3/8" U-bolt. Used together with U-Bolts and nuts to connect the leaf springs to the trailer axle.
$3.99
$2.99

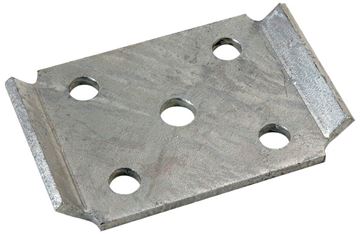

Axle Tie Plate Formed Galvanized for 1/2" U-Bolt, CE Smith 20001G
Formed trailer axle tie plate, galvanized 7/32" steel. 5.83" length, 3.75" width, hole centers 2.94" and 2.31", accepts 1/2" U-bolt. Used together with U-Bolts and nuts to connect the leaf springs to the trailer axle.
$8.99
$5.99

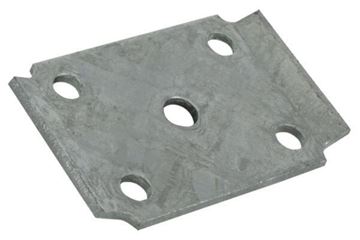

Axle Tie Plate Formed Galvanized for 1/2" U-Bolt, CE Smith 20003G
Formed trailer axle tie plate, galvanized 1/4" steel. 5.83" length, 3.75" width, hole centers 3.62" and 2.26", accepts 1/2" U-bolt. Used together with U-Bolts and nuts to connect the leaf springs to the trailer axle.
$8.99
$4.99

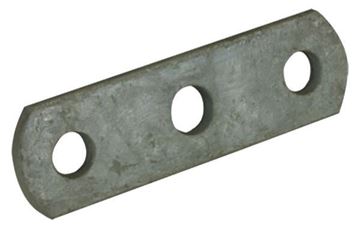

C.E. Smith 20024G Galvanized Steel Three-Hole Tie Plate, 5" x 1-1/2"
Flat three-hole galvanized steel tie plate (U-bolt plate) for boat and snowmobile trailers. Secures a 2" diameter axle to a 1-3/4" wide leaf spring using two 3/8" diameter U-bolts (sold separately). Made in USA.
$2.99
$1.99

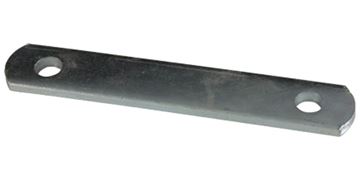

Flat Trailer Axle Tie Plate, 5 in, 2-Hole
A flat 2-hole steel tie plate for trailer leaf-spring U-bolt assemblies, 5 in long and 1/4 in thick with 4.5 in hole centers. Sold each to complete a square U-bolt axle mounting.
$2.99
$1.99
Trailer Axle Tie Plate for Round Axle, 3.5 in by 3.5 in, Reliable TP-R-120
This Reliable TP-R-120 trailer axle tie plate is for round axles and measures 3.5 in by 3.5 in. It accepts 1/2 in U-bolts on 2.25 in hole centers and is sold each.
$8.99
$4.99
Trailer Axle Tie Plate for Round Axle, 5.75 in by 3.5 in, Reliable TP-R-320
This Reliable TP-R-320 trailer axle tie plate is for round axles and measures 5.75 in by 3.5 in. It accepts 1/2 in U-bolts and is sold each.
$11.99
$7.99
Trailer Axle Tie Plate for Round Axle, 5.75 in by 4 in, Reliable TP-R-370
This Reliable TP-R-370 trailer axle tie plate is for round axles and measures 5.75 in by 4 in. It accepts 1/2 in U-bolts and is sold each.
$14.99
$8.99

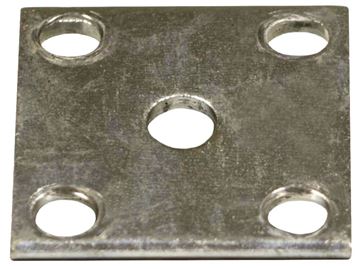

Trailer Axle Tie Plate for Square Axle, 3.75 in by 3.75 in, Reliable TP-S-220
This Reliable TP-S-220 trailer axle tie plate is for square axles and measures 3.75 in by 3.75 in. It accepts 1/2 in U-bolts on 2.75 in hole centers and is sold each.
$12.99
$5.99

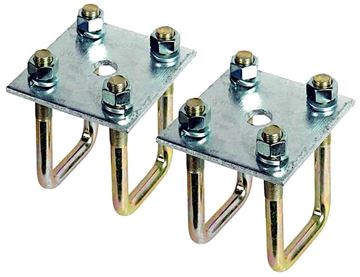

Trailer Tie Plate U-Bolt Kit for 1.5" Square Axle, CE Smith 23102
Square Axle Tie Plate U-Bolt Kit. Yellow zinc U-Bolts. Fits 1-1/2" wide springs. Contains parts to attach 2 springs to axle. Galvanized plates. Includes: 2 tie plates, 4 U-Bolts, 8 locknuts and washers. Axle size: 1-1/2" Square.
$24.99
$18.99

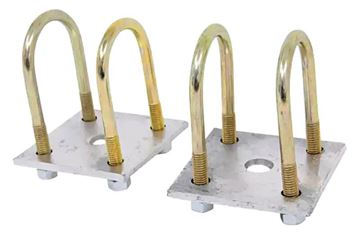

Trailer Tie Plate U-Bolt Kit for 1.75" Round Axle, CE Smith 23000
Round Axle Tie Plate U-Bolt Kit. Contains parts to attach 2 springs to axle. Galvanized tie plates. Includes: 2 tie plates, 4 U-Bolts, 8 lock nuts & washers. Axle size: 1-3/4" Round. Yellow Zinc plated U-bolts. Fits 1-3/4" wide springs and 1-3/4" round axle.
$29.99
$24.99

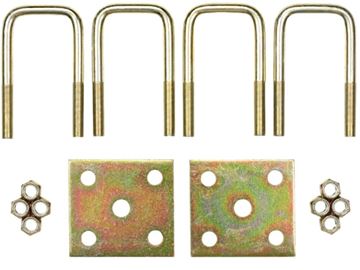

Trailer Tie Plate U-Bolt Kit for 2 in Square Axle, Reliable 3011
This Reliable 3011 tie plate U-bolt kit mounts a 2 in square trailer axle to 1-3/4 in wide leaf springs. The kit contains 4 U-bolts, 2 tie plates, 8 lock nuts and washers.
$47.99
$31.99
Trailer Tie Plate U-Bolt Kit for 2" Square Axle, CE Smith 23103
Square Axle Tie Plate U-Bolt Kit. Yellow zinc U-Bolts. Fits 1-3/4" wide springs. Contains parts to attach 2 springs to axle. Galvanized tie plates. Includes: 2 tie plates, 4 U-Bolts, 8 lock nuts & washers. Fits 2" square axle and 1-3/4" wide springs.
$32.95
$28.49

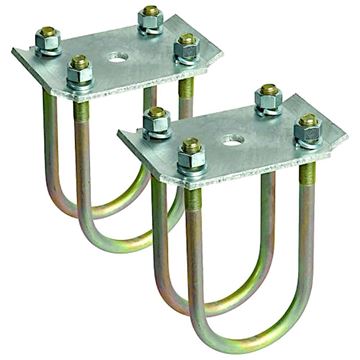

Trailer Tie Plate U-Bolt Kit for 2.375" Round Axle, CE Smith 23002
Round Axle Tie Plate U-Bolt Kit. Contains parts to attach 2 springs to axle. Galvanized tie plates. Includes: 2 tie plates, 4 U-Bolts, 8 lock nuts & washers. Axle size: 2-3/8" Round. Yellow Zinc plated U-bolts. Fits 1-3/4" wide springs and 2-3/8" diameter round axle.
$40.99 per 0 day(s)
$35.49 per 0 day(s)
Trailer Tie Plate U-Bolt Kit for 3" Round Axle, CE Smith 23003
Round Axle Tie Plate U-Bolt Kit. Contains parts to attach 2 springs to axle. Galvanized tie plates. Includes: 2 tie plates, 4 U-Bolts, 8 lock nuts & washers. Axle size: 3" Round. Yellow Zinc plated U-bolts. Fits 1-3/4" wide springs and 3" diameter round axle.
$39.99
$26.61
The tie plate spreads the U-bolt clamping load across the spring and locates the axle on the spring's center bolt. Bent or rust-thinned plates let an axle shift, which shows up as dog-tracking and tire wear. Match the plate bend to the tube: round tubes take round-bend U-bolts and plates, square tubes take square-bend. Plates and kits here are matched by tube diameter and spring width.
