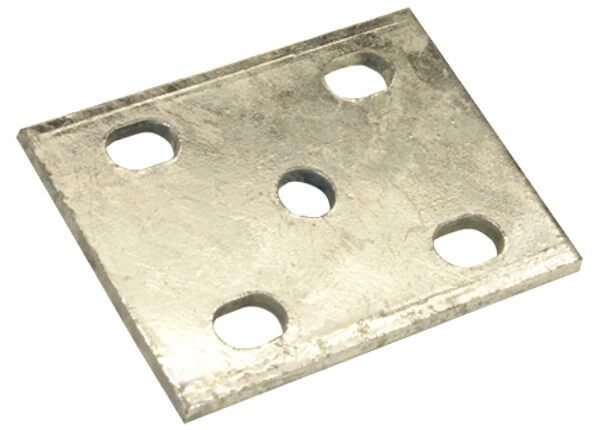

    Axle Tie Plate | Flat, Galvanized, for 1/2" U-Bolt | CE Smith 20044GA

    Manufacturer: C.E. Smith
    AXLE TIE PLATE - FLAT Galvanized 1/4" steel. A: 5.0" *B: 2.75" C: 2.38" D: 3.75" *Accepts 1/2" U-Bolt
    SKU: CS20044
    Manufacturer part number: 20044GA
    Availability: In stock
    $5.20
    $4.69
    i h

    Axle Tie Plate - Flat

    Axle tie plates, which may also be called U-bolt tie plates, are used together with U-Bolts and nuts to connect the leaf springs to the trailer axle. These are parts of the suspension system of the trailer suspension system.

    • Galvanized 1/4" steel
    • A: 5.0 inches
    • B: 2.75 inches
    • C: 2.38 inches
    • D: 3.75 inches

    Accepts 1/2 inch U-bolt

    SiraWeb.com offers parts individually or as part of a kit.  All parts a band name, top quality and american made.

    Axle Tie Plate - Flat

    Axle tie plates, which may also be called U-bolt tie plates, are used together with U-Bolts and nuts to connect the leaf springs to the trailer axle. These are parts of the suspension system of the trailer suspension system.

    • Galvanized 1/4" steel
    • A: 5.0 inches
    • B: 2.75 inches
    • C: 2.38 inches
    • D: 3.75 inches

    Accepts 1/2 inch U-bolt

    SiraWeb.com offers parts individually or as part of a kit.  All parts a band name, top quality and american made.

    Products specifications
    Length 5.0 inches
    Width 3.75 inches
    Length - Hole Centers 2.75 inches
    Width - Hole Centers 2.38 inches
