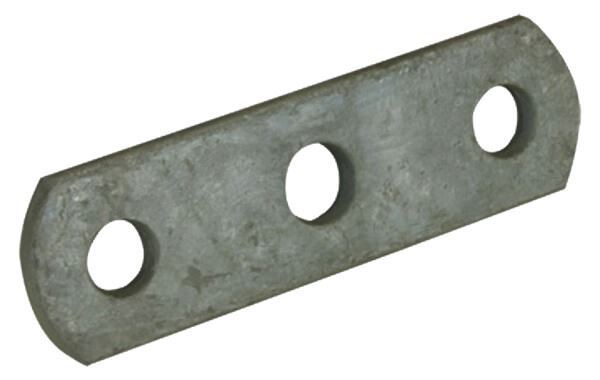

C.E. Smith 20024G Galvanized Steel Three-Hole Tie Plate, 5" x 1-1/2"

Manufacturer: C.E. Smith

Flat three-hole galvanized steel tie plate (U-bolt plate) for boat and snowmobile trailers. Secures a 2" diameter axle to a 1-3/4" wide leaf spring using two 3/8" diameter U-bolts (sold separately). Made in USA.

SKU: CS20024

Manufacturer part number: 20024G

GTIN: 794777276262

Availability: In stock

Old price: $2.99

Price: $1.99

Qty:

i h

C.E. Smith 20024G Galvanized Steel Three-Hole Tie Plate, 5" x 1-1/2"

The C.E. Smith 20024G is a flat three-hole tie plate (U-bolt plate) for boat and snowmobile trailers. It is made of galvanized steel for rust resistance and secures a 2" diameter axle to a 1-3/4" wide leaf spring.

What It Fits

Boat trailers and snowmobile trailers
2" diameter axle
1-3/4" wide leaf spring

Where It Installs

The tie plate is used at the axle-to-leaf-spring connection and works with two 3/8" diameter U-bolts. U-bolts are sold separately.

Key Features

Flat three-hole design
Galvanized steel construction; rust-resistant
Made in USA

Specifications

Brand	C.E. Smith
Manufacturer Part Number	20024G
Material / Finish	Galvanized steel
Length	5"
Width	1-1/2"
Bolt Hole Size	3/8"
Mounting Hole Spacing	3-9/16" center to center
Axle Diameter	2"
Leaf Spring Width	1-3/4"
U-Bolts Used	Two 3/8" diameter (sold separately)
Country of Origin	USA

Frequently Asked Questions

What does the Three-Hole Tie Plate fit?

It is for boat and snowmobile trailers and secures a 2" diameter axle to a 1-3/4" wide leaf spring.

What are the specifications of the Three-Hole Tie Plate?

It is galvanized steel, measures 5" x 1-1/2", has a 3/8" bolt hole size and 3-9/16" mounting hole spacing center to center, and is made in the USA.

Are U-bolts included with the Three-Hole Tie Plate?

No, it works with two 3/8" diameter U-bolts, which are sold separately.

C.E. Smith Company manufactures trailer parts, marine hardware, and fishing products built for durability in demanding conditions.

C.E. Smith 20024G Galvanized Steel Three-Hole Tie Plate, 5" x 1-1/2"

What It Fits

Boat trailers and snowmobile trailers
2" diameter axle
1-3/4" wide leaf spring

Where It Installs

The tie plate is used at the axle-to-leaf-spring connection and works with two 3/8" diameter U-bolts. U-bolts are sold separately.

Key Features

Flat three-hole design
Galvanized steel construction; rust-resistant
Made in USA

Specifications

Brand	C.E. Smith
Manufacturer Part Number	20024G
Material / Finish	Galvanized steel
Length	5"
Width	1-1/2"
Bolt Hole Size	3/8"
Mounting Hole Spacing	3-9/16" center to center
Axle Diameter	2"
Leaf Spring Width	1-3/4"
U-Bolts Used	Two 3/8" diameter (sold separately)
Country of Origin	USA

Frequently Asked Questions

What does the Three-Hole Tie Plate fit?

It is for boat and snowmobile trailers and secures a 2" diameter axle to a 1-3/4" wide leaf spring.

What are the specifications of the Three-Hole Tie Plate?

It is galvanized steel, measures 5" x 1-1/2", has a 3/8" bolt hole size and 3-9/16" mounting hole spacing center to center, and is made in the USA.

Are U-bolts included with the Three-Hole Tie Plate?

No, it works with two 3/8" diameter U-bolts, which are sold separately.

C.E. Smith Company manufactures trailer parts, marine hardware, and fishing products built for durability in demanding conditions.

Products specifications

Length	5.0 inches
Width	1.50 inches
Length - Hole Centers	3.56 inches
