    5 Bolt Trailer Hub Kit, Galvanized, 1" Spindle, 1250 lbs, CE Smith 13215

    Manufacturer: C.E. Smith
    Pre-greased, marine-grade hub is built for trailer idler axles. Fits 2.5K axles with BT8 spindles. Inner bearing and race, outer bearing and race, grease seal, cap, lug nuts, and cotter pin included. For 8" to 12" wheels. Includes galvanized hub fully assembled with pre-greased bearings, dust cap, cotter pin and lug nuts.
    SKU: CS-13215
    Manufacturer part number: 13215
    GTIN: 00768296009892
    PRICE BREAKS - The more you buy, the more you save
    Quantity
    2+
    Price
    $51.99
    Availability: In stock
    $79.99
    $69.99
    i h

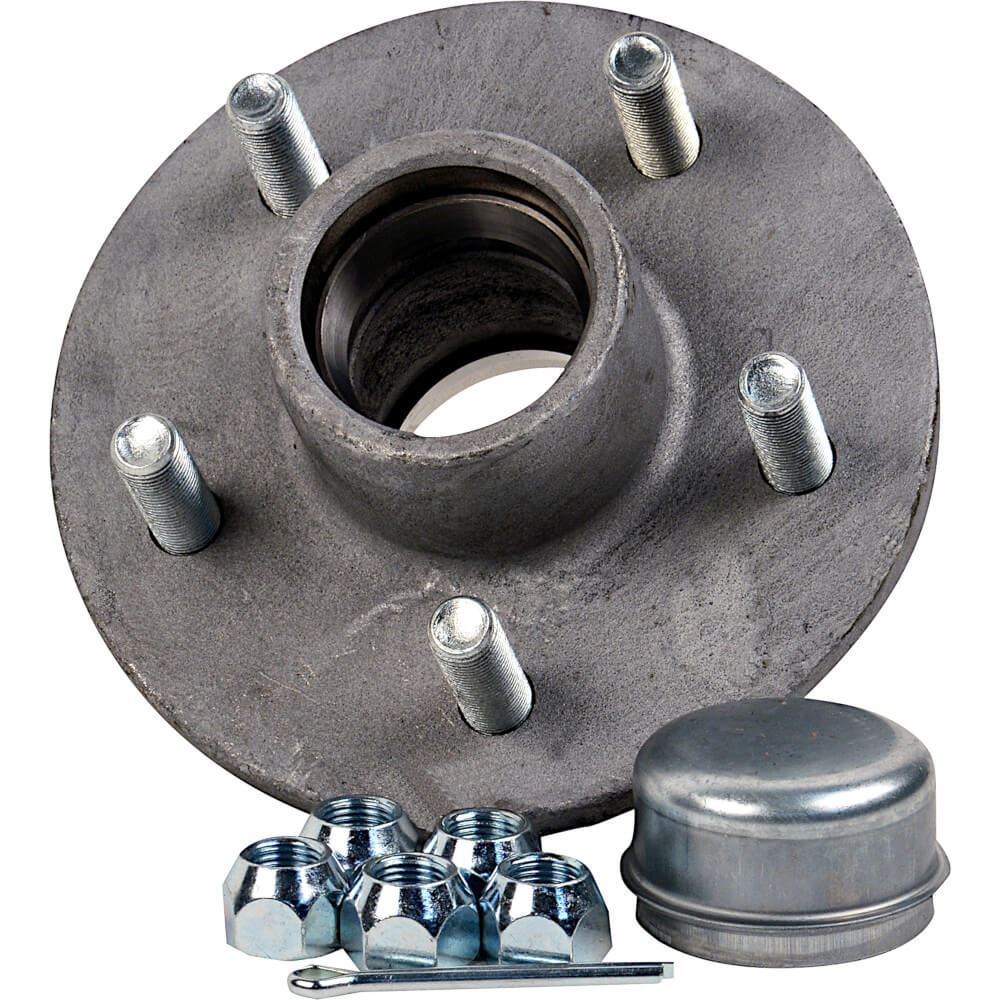

    CE Smith 5 Bolt Galvanized Trailer Hub Kit, part 13215

    Pre-greased, marine-grade hub is built for trailer idler axles. Fits 2.5K axles with BT8 spindles. Inner bearing (L44643) and race, outer bearing (L44643) and race, grease seal, cap, lug nuts, and cotter pin included. For 8" to 12" wheels.

    Features:

    • Marine-grade trailer hub assembly fits idler axles
      • Includes bearings, races, grease seal, grease cap, lug nuts, and cotter pin
    • Pre-greased idler hub is easy to install - no need to pack bearings
      • Lubricated with heavy-duty grease for marine applications
    • Sturdy iron construction
    • Galvanized finish offers excellent corrosion resistance
      • Ideal for use on a boat or snowmobile trailer
    • Zinc plating on lug nuts, cotter pin, and grease cap helps to limit corrosion
    • Carrying case with handle keeps all the parts in one place
      • Easy to stow on your trailer in case of an emergency
    • Made in the USA

    Included:

    • 1 Galvanized 5 Bolt Hub
      • Fully assembled with pre-greased bearings
    • Dust cap
    • Cotter Pin
    • Lug nuts

    Specs:

    • Application: 2,500-lb axles with BT8 spindles
    • Wheel size: 8" to 12"
    • Bolt pattern: 5 on 4-1/2"
    • Wheel stud dimensions: 1/2" diameter x 1-7/8" long
    • Grease cap flange diameter: 1.98"
    • Hub flange diameter: 5-9/16"
    • Weight capacity: 1,250 lbs

    Bearing, Race, and Seal Information:

    • Bearings (included)
      • Inner bearing: L44643 (1" inner diameter)
      • Outer bearing: L44643 (1" inner diameter)
    • Races (included)
      • Inner race: L44610
      • Outer race: L44610
    • Grease seal (included): 34823
      • Inner diameter: 1.249"
      • Outer diameter: 1.983"

    trailer hubs measuring bolt patterns

    Wheel Hub Parts Guide:

    Tailer Wheel Hub Guide

    CE Smith 5 Bolt Galvanized Trailer Hub Kit, part 13215

    Pre-greased, marine-grade hub is built for trailer idler axles. Fits 2.5K axles with BT8 spindles. Inner bearing (L44643) and race, outer bearing (L44643) and race, grease seal, cap, lug nuts, and cotter pin included. For 8" to 12" wheels.

    Features:

    • Marine-grade trailer hub assembly fits idler axles
      • Includes bearings, races, grease seal, grease cap, lug nuts, and cotter pin
    • Pre-greased idler hub is easy to install - no need to pack bearings
      • Lubricated with heavy-duty grease for marine applications
    • Sturdy iron construction
    • Galvanized finish offers excellent corrosion resistance
      • Ideal for use on a boat or snowmobile trailer
    • Zinc plating on lug nuts, cotter pin, and grease cap helps to limit corrosion
    • Carrying case with handle keeps all the parts in one place
      • Easy to stow on your trailer in case of an emergency
    • Made in the USA

    Included:

    • 1 Galvanized 5 Bolt Hub
      • Fully assembled with pre-greased bearings
    • Dust cap
    • Cotter Pin
    • Lug nuts

    Specs:

    • Application: 2,500-lb axles with BT8 spindles
    • Wheel size: 8" to 12"
    • Bolt pattern: 5 on 4-1/2"
    • Wheel stud dimensions: 1/2" diameter x 1-7/8" long
    • Grease cap flange diameter: 1.98"
    • Hub flange diameter: 5-9/16"
    • Weight capacity: 1,250 lbs

    Bearing, Race, and Seal Information:

    • Bearings (included)
      • Inner bearing: L44643 (1" inner diameter)
      • Outer bearing: L44643 (1" inner diameter)
    • Races (included)
      • Inner race: L44610
      • Outer race: L44610
    • Grease seal (included): 34823
      • Inner diameter: 1.249"
      • Outer diameter: 1.983"

    trailer hubs measuring bolt patterns

    Wheel Hub Parts Guide:

    Tailer Wheel Hub Guide

    Products specifications
    Capacity 1,250 lbs.
    Bolt Pattern 5 Bolts
