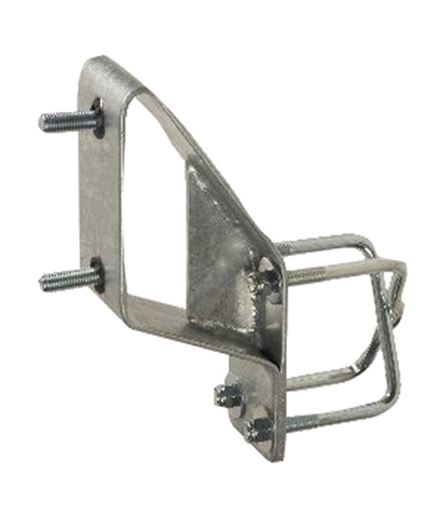

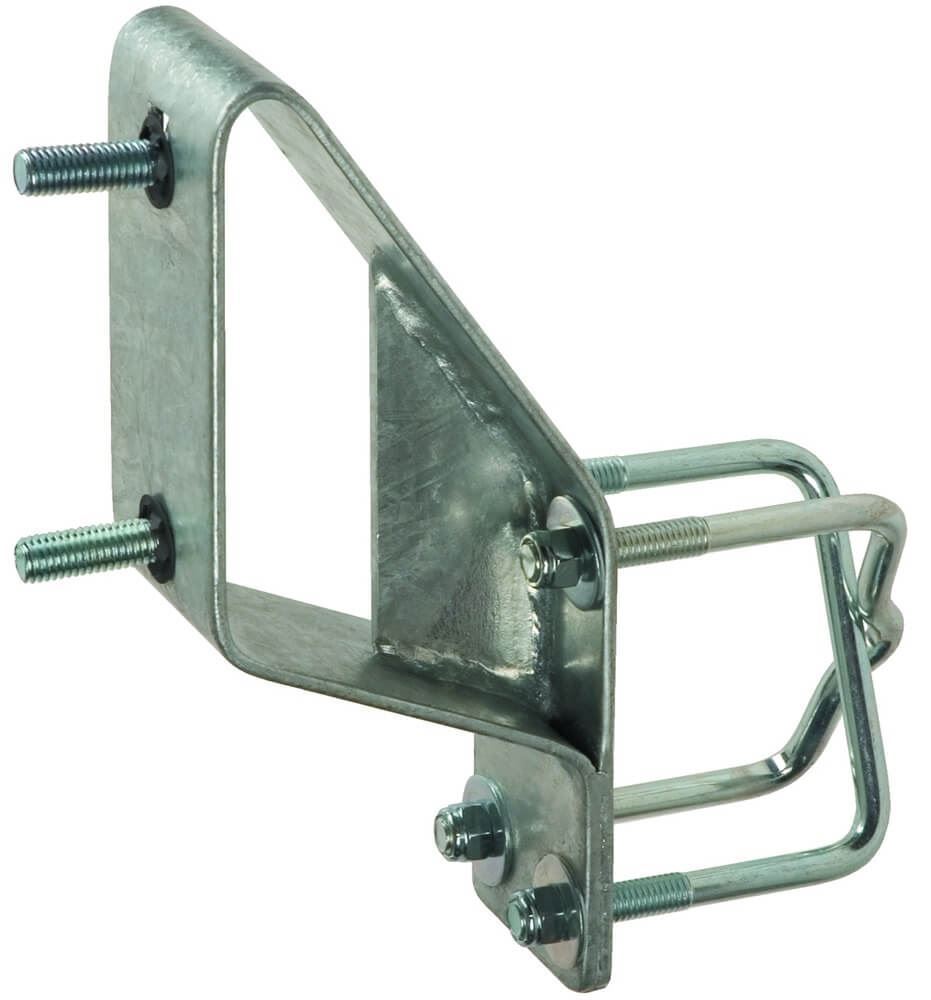

C.E. Smith Heavy Duty Side Mount Spare Tire Carrier, Galvanized (27310G)

Manufacturer: C.E. Smith

Galvanized steel side mount spare tire carrier that clamps to your trailer tongue or frame rails with included U-bolts. No drilling required. Holds 4 or 5 lug wheels up to 15".

SKU: CS27310

Manufacturer part number: 27310G

Availability: Out of stock

Old price: $69.99

Price: $46.49

Qty:

i h

C.E. Smith Heavy Duty Side Mount Spare Tire Carrier, Galvanized (27310G)

The C.E. Smith Heavy Duty Side Mount Spare Tire Carrier (Part No. 27310G) mounts a spare tire vertically to the side of your trailer tongue or frame rails. Its offset design moves the tire and wheel up and away from the trailer frame to improve ground clearance.

Key Features

Mounts the spare tire vertically to the side of the trailer tongue or frame rails
Offset design lifts the tire and wheel up and away from the trailer frame to improve ground clearance
No drilling required: the included U-bolts clamp the carrier to the trailer frame
Crisscross U-bolt design increases holding power
U-bolts may be crossed to fit shorter frames or installed parallel for more reach
Extra heavy duty welded steel construction, made from 3/16" thick galvanized steel
Comes complete with all zinc plated hardware
Sold individually

Fit and Compatibility

Fits frames up to 4" tall by 1" up to 3-1/2" wide
Holds either 4 or 5 lug wheels that are up to 15"
Not compatible with 5-on-5" or 5-on-5-1/2" bolt patterns

Before ordering, confirm that your trailer frame measures within the size range above and that your spare wheel is a 4 or 5 lug wheel up to 15" with a compatible bolt pattern.

Specifications

Brand	C.E. Smith
Manufacturer Part Number	27310G
Material	3/16" thick galvanized steel
Construction	Extra heavy duty welded steel
Frame Fit	Up to 4" tall by 1" up to 3-1/2" wide
Wheel Capacity	4 or 5 lug wheels up to 15"
Incompatible Bolt Patterns	5-on-5" and 5-on-5-1/2"
Vertical Offset	5"
Side Offset	4-1/2"
Hardware	Zinc plated, included
Sold As	Individually

Frequently Asked Questions

What is included with the Heavy Duty Side Mount Spare Tire Carrier?

The carrier comes complete with all zinc plated hardware, including the U-bolts that clamp it to the trailer frame with no drilling required.

What does the Heavy Duty Side Mount Spare Tire Carrier fit?

It fits frames up to 4" tall by 1" up to 3-1/2" wide and holds 4 or 5 lug wheels up to 15", but it is not compatible with 5-on-5" or 5-on-5-1/2" bolt patterns.

What are the specifications of the Heavy Duty Side Mount Spare Tire Carrier?

It is made from 3/16" thick galvanized steel with extra heavy duty welded construction, a 5" vertical offset and a 4-1/2" side offset.

C.E. Smith Company manufactures trailer parts, marine hardware, and fishing products built for durability in demanding conditions.

C.E. Smith Heavy Duty Side Mount Spare Tire Carrier, Galvanized (27310G)

Key Features

Mounts the spare tire vertically to the side of the trailer tongue or frame rails
Offset design lifts the tire and wheel up and away from the trailer frame to improve ground clearance
No drilling required: the included U-bolts clamp the carrier to the trailer frame
Crisscross U-bolt design increases holding power
U-bolts may be crossed to fit shorter frames or installed parallel for more reach
Extra heavy duty welded steel construction, made from 3/16" thick galvanized steel
Comes complete with all zinc plated hardware
Sold individually

Fit and Compatibility

Fits frames up to 4" tall by 1" up to 3-1/2" wide
Holds either 4 or 5 lug wheels that are up to 15"
Not compatible with 5-on-5" or 5-on-5-1/2" bolt patterns

Before ordering, confirm that your trailer frame measures within the size range above and that your spare wheel is a 4 or 5 lug wheel up to 15" with a compatible bolt pattern.

Specifications

Brand	C.E. Smith
Manufacturer Part Number	27310G
Material	3/16" thick galvanized steel
Construction	Extra heavy duty welded steel
Frame Fit	Up to 4" tall by 1" up to 3-1/2" wide
Wheel Capacity	4 or 5 lug wheels up to 15"
Incompatible Bolt Patterns	5-on-5" and 5-on-5-1/2"
Vertical Offset	5"
Side Offset	4-1/2"
Hardware	Zinc plated, included
Sold As	Individually

Frequently Asked Questions

What is included with the Heavy Duty Side Mount Spare Tire Carrier?

The carrier comes complete with all zinc plated hardware, including the U-bolts that clamp it to the trailer frame with no drilling required.

What does the Heavy Duty Side Mount Spare Tire Carrier fit?

It fits frames up to 4" tall by 1" up to 3-1/2" wide and holds 4 or 5 lug wheels up to 15", but it is not compatible with 5-on-5" or 5-on-5-1/2" bolt patterns.

What are the specifications of the Heavy Duty Side Mount Spare Tire Carrier?

It is made from 3/16" thick galvanized steel with extra heavy duty welded construction, a 5" vertical offset and a 4-1/2" side offset.

C.E. Smith Company manufactures trailer parts, marine hardware, and fishing products built for durability in demanding conditions.
