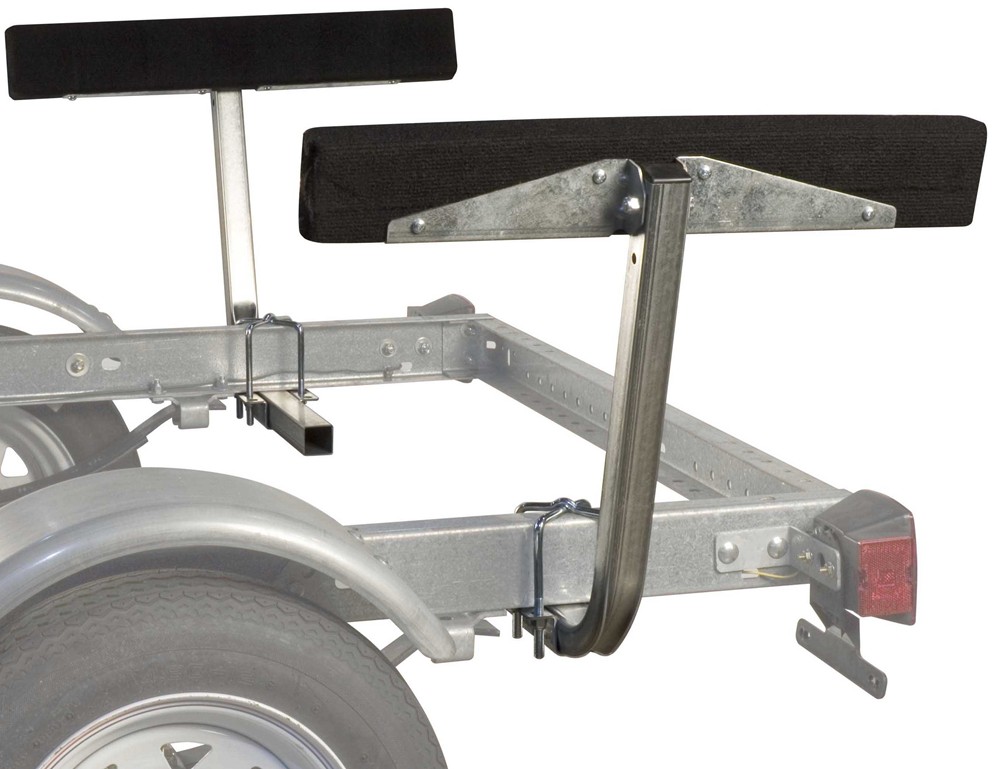

C.E. Smith 27660 2 ft Bunk Board Guide-On (Pair) for Boat Trailers

C.E. Smith 27660 2 ft Bunk Board Guide-On (Pair)

These carpeted bunk board guide-ons for boat trailers center the boat during loading, even in wind or side current conditions. Each pair is boxed and complete with mounting hardware.

Key Features

• Centers the boat during loading, even in wind or side current conditions
• 2 in. x 4 in. x 24 in. untreated Southern yellow pine boards covered with marine carpet
• 1-1/2 in. square pre-galvanized steel uprights, angled out at 75 degrees
• 21 in. height; adjusts out to 13 in. from the trailer frame on each side
• Can be mounted on top of the frame for extra height
• Complete with mounting hardware for frames up to 3 in. wide x 4-1/4 in. high

Specifications

Frequently Asked Questions

What are the boards made of?
The boards are 2 in. x 4 in. x 24 in. untreated Southern yellow pine covered with marine carpet.

How far out can the guide-ons be adjusted?
Each side adjusts out to 13 in. from the trailer frame. The uprights are angled out at 75 degrees and the overall height is 21 in.

What trailer frame sizes does the included hardware fit?
The mounting hardware that comes with the guide-ons fits frames up to 3 in. wide x 4-1/4 in. high. For larger frames, C.E. Smith Large Frame U-Bolt Kit 11416 is available separately.

Can the guide-ons be mounted higher?
Yes. They can be mounted on top of the frame for extra height.

C.E. Smith Company, Inc. manufactures and sells replacement parts for small to mid-size boat trailers, including trailer fenders, boat guides, galvanized bracketry, tire carriers, replacement wheel bearings, rubber rollers, roller shafts, U-bolts and other boat trailer requirements.
