5 Bolt Trailer Hub Kit for 1-3/8" to 1-1/16" Spindle, 1750 lbs Capacity, Demountable, Reliable 1-1000-04-01
This complete 5 bolt trailer hub kit fits a tapered spindle with a 1-3/8 in inner bearing seat and a 1-1/16 in outer bearing seat, and is rated at 1750 lbs hub capacity. It is a high speed, demountable hub kit for highway rated trailers.
Key Features

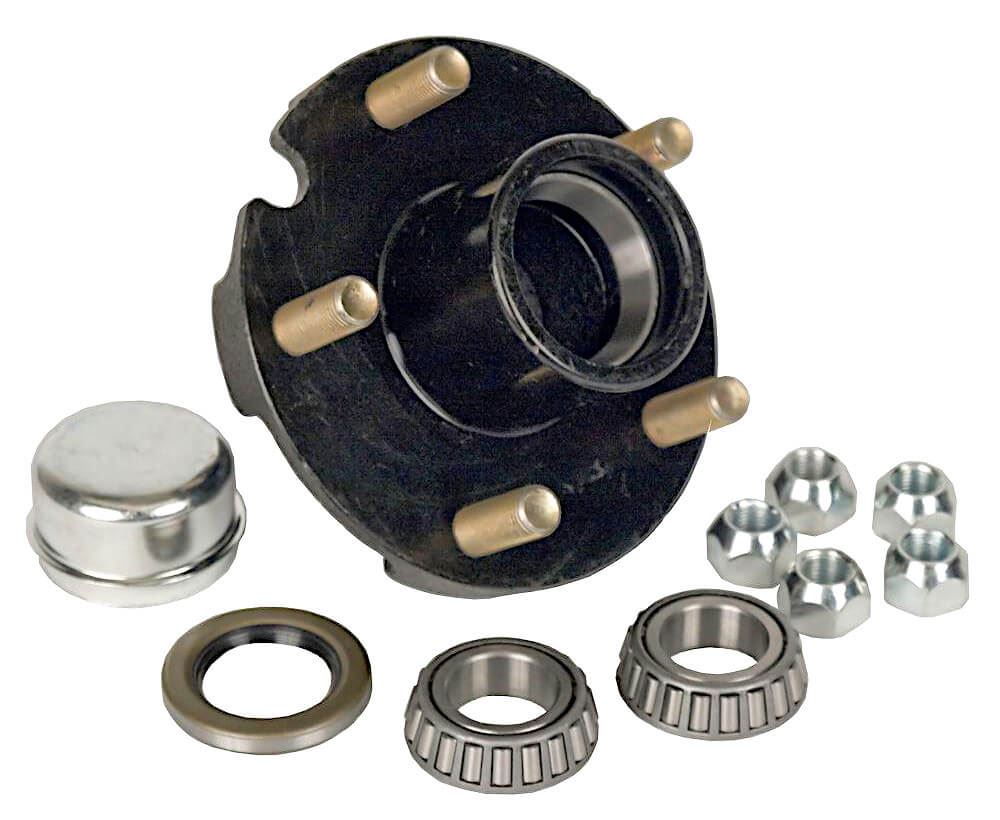

- Complete kit: 5 hole hub (part 230019), 5 nuts, 5 bolts, 2 bearings, 2 bearing cups, 1 grease seal and 1 dust cap included
- Tapered spindle bearing set: LM68149 inner (1-3/8 in) and LM44649 outer (1-1/16 in)
- Demountable hub design
- High speed hub, ideal for highway rated trailers
- 1750 lbs hub capacity
Specifications
| Brand | Reliable |
|---|
| Manufacturer Part Number | 1-1000-04-01 |
|---|
| Product Type | Trailer Hub Kit |
|---|
| Hub Type | Demountable |
|---|
| Bolt Count | 5 stud |
|---|
| Spindle Size | 1-3/8 in to 1-1/16 in, tapered |
|---|
| Inner Bearing | LM68149, 1-3/8 in |
|---|
| Outer Bearing | LM44649, 1-1/16 in |
|---|
| Hub Part Number | 230019 |
|---|
| Hub Length | 4-1/4 in |
|---|
| Distance Between Races | 2-7/16 in |
|---|
| Hub Capacity | 1750 lbs |
|---|
| Weight | 7.75 lb |
|---|
Compatibility
Match this kit to a tapered spindle with a 1-3/8 in inner bearing seat and a 1-1/16 in outer bearing seat, using an LM68149 inner bearing, an LM44649 outer bearing and a 5 bolt wheel pattern. It does not fit straight 1 in spindles. Verify the spindle sizes and wheel pattern before ordering.
Important Purchase Notes
This kit fits tapered spindles only. Bolt circle diameter, stud thread size and grease seal size are not published for this kit, so verify the wheel pattern before purchase.
Common Applications
Repair or replacement of a worn or damaged hub on highway rated trailers using a 1-3/8 in to 1-1/16 in tapered spindle.
Why Buy This Part
This complete kit for the tapered spindle application includes both bearings, bearing cups, grease seal, dust cap, nuts and bolts in one package, at a 1750 lbs hub capacity.
Frequently Asked Questions
What spindle does this hub kit fit?
Compare your spindle's bearing numbers: this kit uses an LM68149 inner bearing and an LM44649 outer bearing, on a tapered spindle. If your spindle takes those bearings and is tapered, this is the matching hub kit. It does not fit straight spindles.
What bearings are included?
An LM68149 bearing (1-3/8 in) is included for the inner position and an LM44649 bearing (1-1/16 in) for the outer position.
What is included in the kit?
The kit includes the 5 hole hub (part 230019), 5 nuts, 5 bolts, 2 bearings, 2 bearing cups, 1 grease seal and 1 dust cap.
