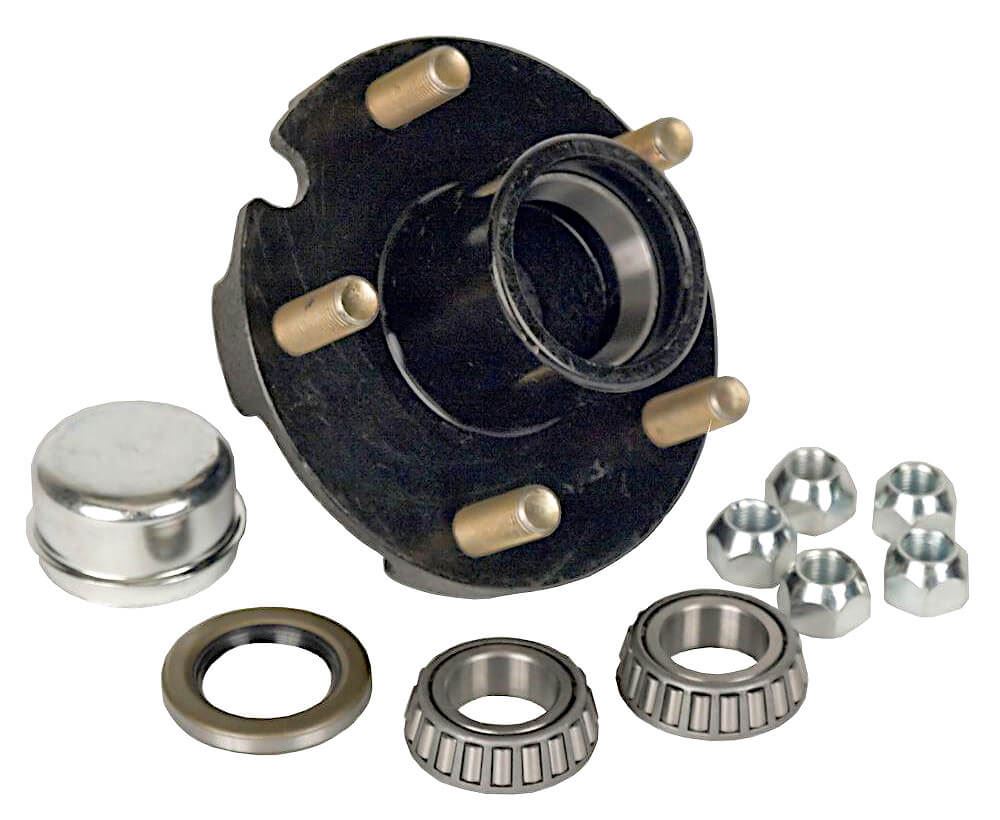

    5 Bolt Trailer Hub for 1-1/16" Spindle, 1.5" Seal, Reliable 230061

    Manufacturer: Reliable Machine
    Complete 5 Hole Trailer Hub Kit. Fits 1-1/16" axle spindle. This high speed trailer hub is ideal for highway rated trailers. The trailer hub assembly includes: nuts, bolts, 2 bearings, 2 bearing cups, 1 grease seal and a dust cap. Specs: bolt size: 5 stud, inner bearing size: 1-1/16" part LM44649, outer bearing size:  1-1/16"part LM44649, hub length: 4-1/8", distance between races: 2-7/16".
    SKU: 230061
    Manufacturer part number: 230061
    Availability: In stock
    $39.99
    $30.99
    i h

    Reliable Tool & Machine Complete 4 Bolt Trailer Hub Kit for 1-1/16" Spindle, part 230061

    Repair or replace your worn or damaged trailer hub assembly. This high speed trailer hub is ideal for highway rated trailers.

    Included:

    • 4 Hole Hub, part # 230018
    • 4 Nuts
    • 5 Bolts
    • 2 Bearings
    • 2 Bearing Cups
    • 1 Grease Seal
    • 1 Dust Cap

    Specifications:

    • Bolt size: 5 stud
    • Inner Bearing size: 1-1/16 inch, part # LM44649
    • Outer Bearing size:  1-1/16" inch, part # LM44649.
    • Hub length: 4-1/8 inch
    • Distance between races: 2-7/16  inch

    trailer hubs measuring bolt patterns

    Wheel Hub Parts Guide:

    Tailer Wheel Hub Guide

    Reliable Machine has been providing quality machining, welding, and assembled products since 1946.  Serving the construction, trailer, lawn care and agriculture industries.

    Reliable Machine logo

    Reliable Tool & Machine Complete 4 Bolt Trailer Hub Kit for 1-1/16" Spindle, part 230061

    Repair or replace your worn or damaged trailer hub assembly. This high speed trailer hub is ideal for highway rated trailers.

    Included:

    • 4 Hole Hub, part # 230018
    • 4 Nuts
    • 5 Bolts
    • 2 Bearings
    • 2 Bearing Cups
    • 1 Grease Seal
    • 1 Dust Cap

    Specifications:

    • Bolt size: 5 stud
    • Inner Bearing size: 1-1/16 inch, part # LM44649
    • Outer Bearing size:  1-1/16" inch, part # LM44649.
    • Hub length: 4-1/8 inch
    • Distance between races: 2-7/16  inch

    trailer hubs measuring bolt patterns

    Wheel Hub Parts Guide:

    Tailer Wheel Hub Guide

    Reliable Machine has been providing quality machining, welding, and assembled products since 1946.  Serving the construction, trailer, lawn care and agriculture industries.

    Reliable Machine logo

    Products specifications
    Bolt Pattern 5 Bolts
