    Trailer Tie Plate U-Bolt Kit for 3" Round Axle, Reliable UBK-R320

    Manufacturer: Reliable Machine
    Round Axle Tie Plate U-Bolt Kit. Contains: 4 U-bolts. 2 five hole tie plates. 8 lock nuts. Fits: 3" diameter round axle with 1-3/4" wide springs. Capacity: 3,500 lbs. U-Bolts are 1/2"- 20 thread. Zinc plated.
    SKU: 75-1016
    Manufacturer part number: UBK-R320
    Availability: In stock
    $39.99
    $25.99
    i h

    Reliable Machine Trailer Tie Plate U-Bolt Kit for 3" Round Axle, part UBK-R320

    Tie Plate U-Bolt Kit to mount a round, 3" wide axle to the trailer's leaf springs. U-bolts, plates, nuts, and washers included. Zinc plating resists rust and corrosion - great for boat trailers.

    Features:

    • Mounting kit attaches trailer axle to leaf springs
    • zinc-plated U-bolts resists rust and corrosion
    • Made in the USA

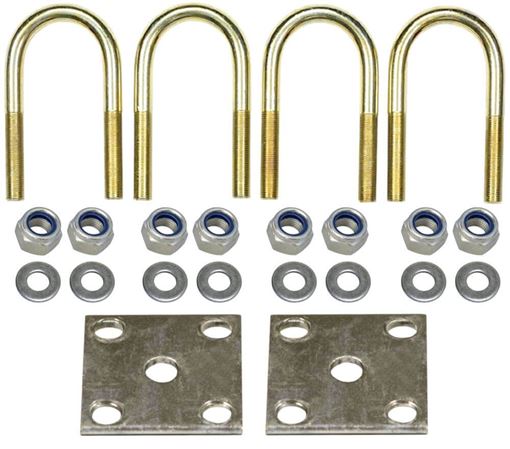

    Included:

    • 4 Zinc Plated U-bolts (sku: 230047)
    • 2 U-bolt tie plates for 1-3/4" springs (sku: 230043)
    • 8 Hex lock nuts (sku: 230040)
    • 8 Washers

    Specs:

    • Yellow Zinc U-Bolts
    • Fits:
      • Springs: 1-3/4" wide
      • Axle: 3" diameter, round
    • Capacity: 3,500 Lbs.
    • Contains parts to attach 2 springs to axle
    • Application: 3" diameter round axle
    • U-Bolts:
      • Leg-width: 3-1/8"
      • Length: 6"
      • Bolt diameter: 1/2"
      • Therad length: 2"
      • Thread size: 20
    • Tie Plates:
      • Length: 5.75"
      • Hole centers long side: 3.5"
      • Hole centers short Side: 2.5"
      • Width: 3.5"
      • Hole Diameter: 0.5"
    • Lock Nuts:
      • Size: 1/2"
      • Thread: 20
      • Nylon insert

    Reliable Machine has been providing quality machining, welding, and assembled products since 1946.  Serving the construction, trailer, lawn care and agriculture industries.
