UCF L-44610 Tapered Roller Bearing Cup, 1.9800 in Outside Diameter

UCF L-44610 Tapered Roller Bearing Cup, 1.9800 in Outside Diameter

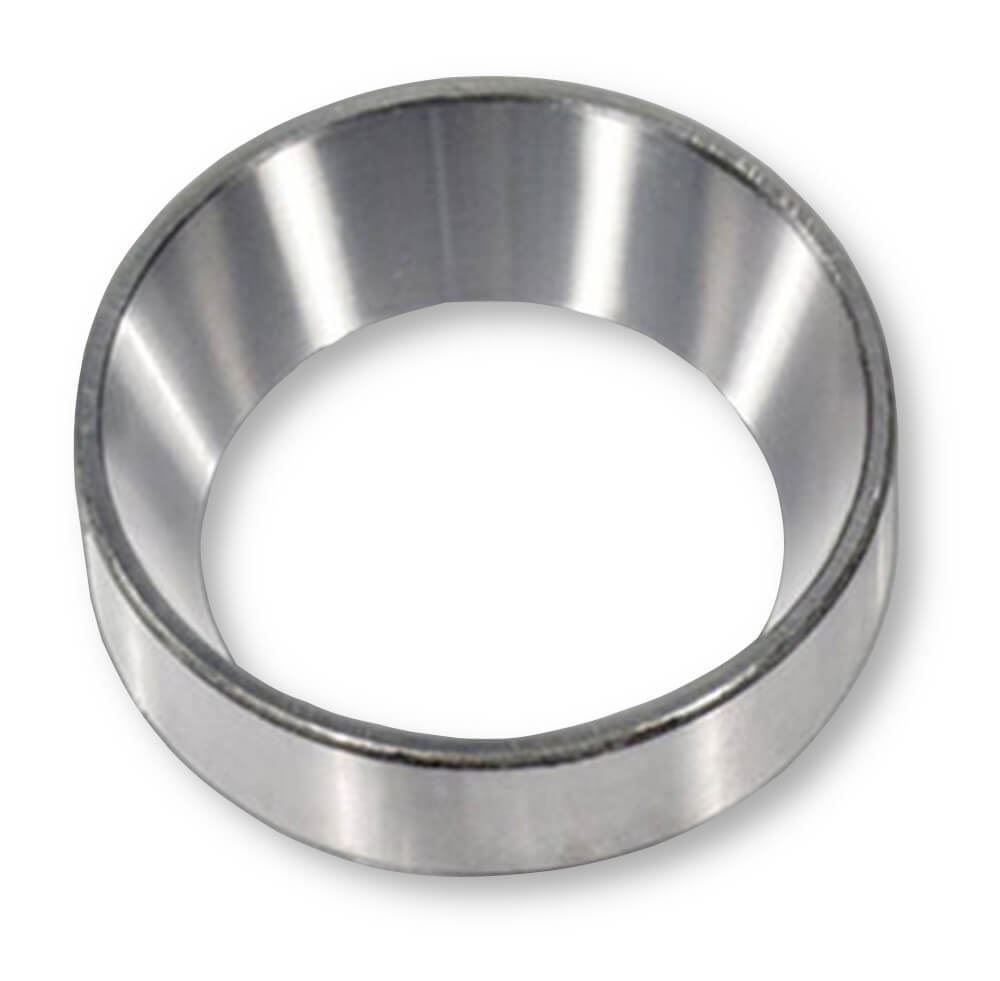

The UCF L-44610 is a single tapered roller bearing cup, the outer ring of a tapered roller bearing, for trailer wheel hubs. It measures 1.9800 in in outside diameter and 0.4200 in in cup width, and it is supplied as the cup only.

Key Features

• Single tapered roller bearing cup (outer ring) only
• Separable design: the cone (inner ring) assembly is a separate part
• Imperial (inch) design dimensions
• Outside diameter 1.9800 in and cup width 0.4200 in

Specifications

Compatibility

This cup pairs with the L44643 cone (1.0000 in bore) and the L44649 cone (1.0625 in bore, 1-1/16 in), for trailer hubs with 1 in or 1-1/16 in straight spindles. In the Dexter catalog group it is the outer bearing cup for 2,300 to 3,500 lb axles, paired with the L44649 outer cone.

Important Purchase Notes

This listing is for one single bearing cup (outer ring) only. No cone, rollers, or cage are included, and the mating cone is sold separately.

Common Applications

Trailer wheel hubs, as the outer bearing cup, and in some hubs as both the inner and outer cup with L44643 or L44649 cones.

Recommended Related Parts

UCF L44643 and UCF L44649 mating bearing cones.

UCF is the trailer parts line of The Universal Group.
