UCF LM67010/LM67048 Bearing Cone and Cup Set for 1-1/4 in Spindle

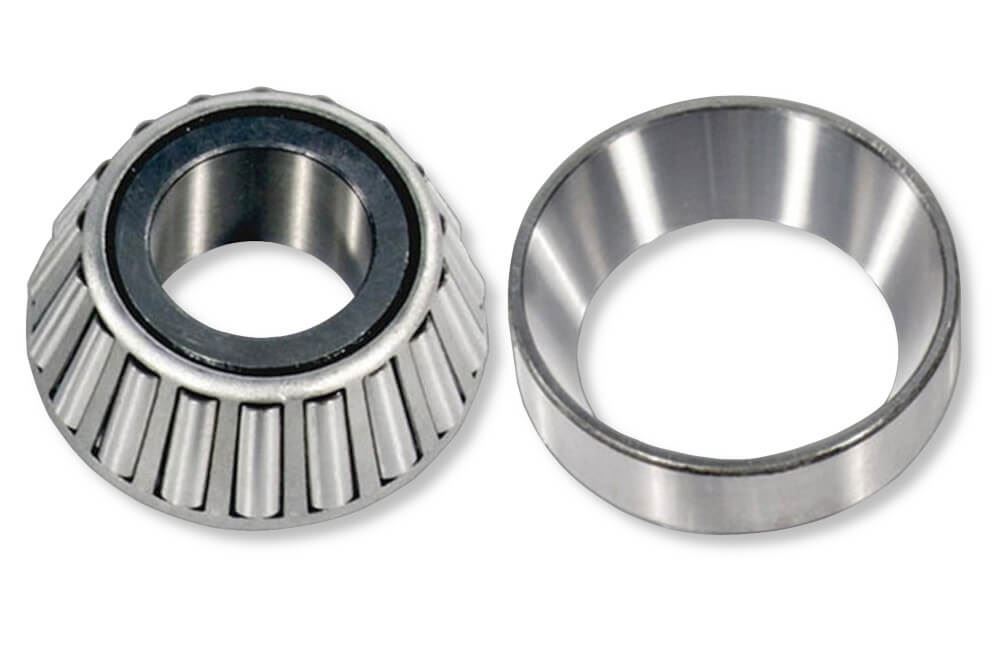

This set includes one LM67048 cone bearing and one LM67010 cup for a trailer wheel hub on a 1-1/4 in spindle. The cone and cup are the two separable parts of a single row tapered roller bearing.
Key Features

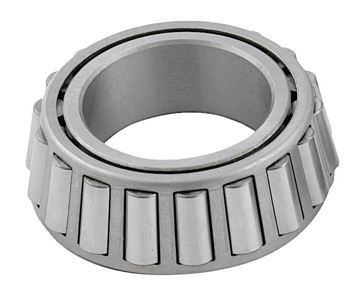

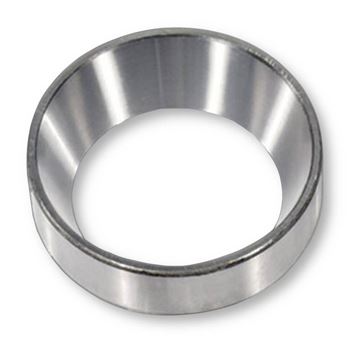

- Set includes one LM67048 cone bearing and one LM67010 cup
- Single row tapered roller bearing with separable cone and cup parts
- Stamped steel cage
- Cone bore of 1.2500 in for a 1-1/4 in spindle
- Assembled bearing width of 0.6250 in
Specifications
| Brand | UCF |
|---|
| Manufacturer Part Number | LM67010/LM67048 |
|---|
| Product Type | Tapered Roller Bearing Cone and Cup Set |
|---|
| Cone | LM67048 |
|---|
| Cup | LM67010 |
|---|
| Spindle Size | 1-1/4 in |
|---|
| Cone Bore Inside Diameter | 1.2500 in |
|---|
| Cone Width | 0.6600 in |
|---|
| Cup Outside Diameter | 2.3280 in |
|---|
| Cup Width | 0.4650 in |
|---|
| Assembled Bearing Width | 0.6250 in |
|---|
Compatibility
This set pairs the LM67048 cone, with a 1.2500 in bore, with the LM67010 cup for a 1-1/4 in spindle.
Important Purchase Notes
This set includes one cone bearing and one cup, enough for one bearing position. Confirm the spindle size and both component numbers before ordering.
Common Applications
Trailer wheel hub use on a 1-1/4 in spindle.
Frequently Asked Questions
What is included in this set?
One LM67048 cone bearing and one LM67010 cup.
What spindle size is this set for?
It is for a 1-1/4 in spindle, and the cone bore is 1.2500 in.
Does one set cover two bearing positions?
No. One set provides one cone and one cup for one bearing position. Bearings of this type are typically mounted in opposing pairs.
UCF is the trailer parts line of The Universal Group.
