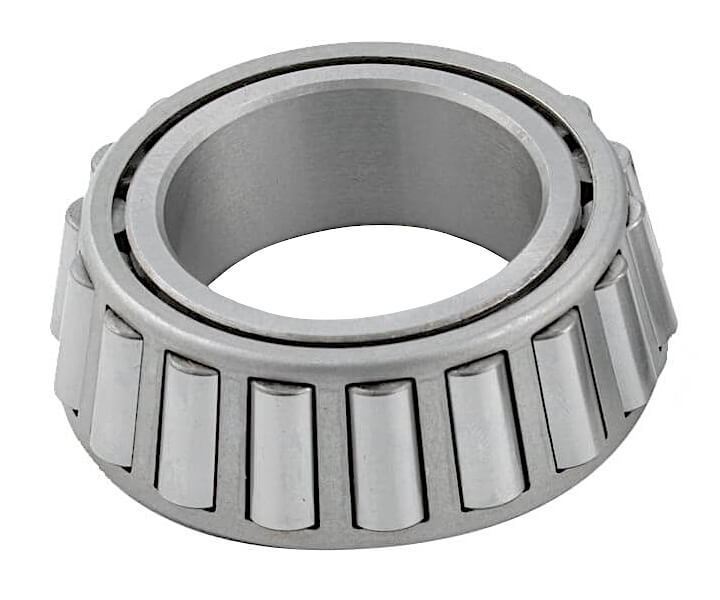

UCF LM-67048 Tapered Roller Bearing Cone, 1-1/4 in Spindle
The UCF LM-67048 is a single-row tapered roller bearing cone, the inner ring assembly with tapered rollers and cage, for a trailer wheel hub. It has a 1.25 in bore for a 1-1/4 in spindle and pairs with a separate bearing cup, sold separately.
Key Features
- Single-row tapered roller bearing cone: inner ring, tapered rollers and cage assembly
- Separable design: the cone pairs with a separate cup (outer ring)
- Sold as a single cone only, cup not included
Specifications
| Brand | UCF |
|---|
| Manufacturer Part Number | LM-67048 |
|---|
| Product Type | Tapered Roller Bearing Cone |
|---|
| Bore (Inside Diameter) | 1.25 in |
|---|
| Outside Diameter (Mating Cup) | 2.328 in |
|---|
| Cone Width | 0.66 in |
|---|
| Assembled Bearing Width | 0.625 in |
|---|
| Spindle Size | 1-1/4 in |
|---|
Compatibility
Pairs with the UCF LM67010 bearing cup and fits a 1-1/4 in spindle.
Important Purchase Notes
This listing is for a single cone only. The mating cup is not included and is sold separately.
Common Applications
Trailer wheel hub bearing, outer bearing position.
Recommended Related Parts
- UCF LM67010 Tapered Roller Bearing Cup
Frequently Asked Questions
Is the bearing cup included?
No. This product is a single cone only. The mating LM67010 cup is sold separately.
What spindle size does this cone fit?
It fits a 1-1/4 in spindle, with a 1.25 in bore.
What cup does this cone pair with?
It pairs with the UCF LM67010 bearing cup.
UCF is the trailer parts line of The Universal Group.
