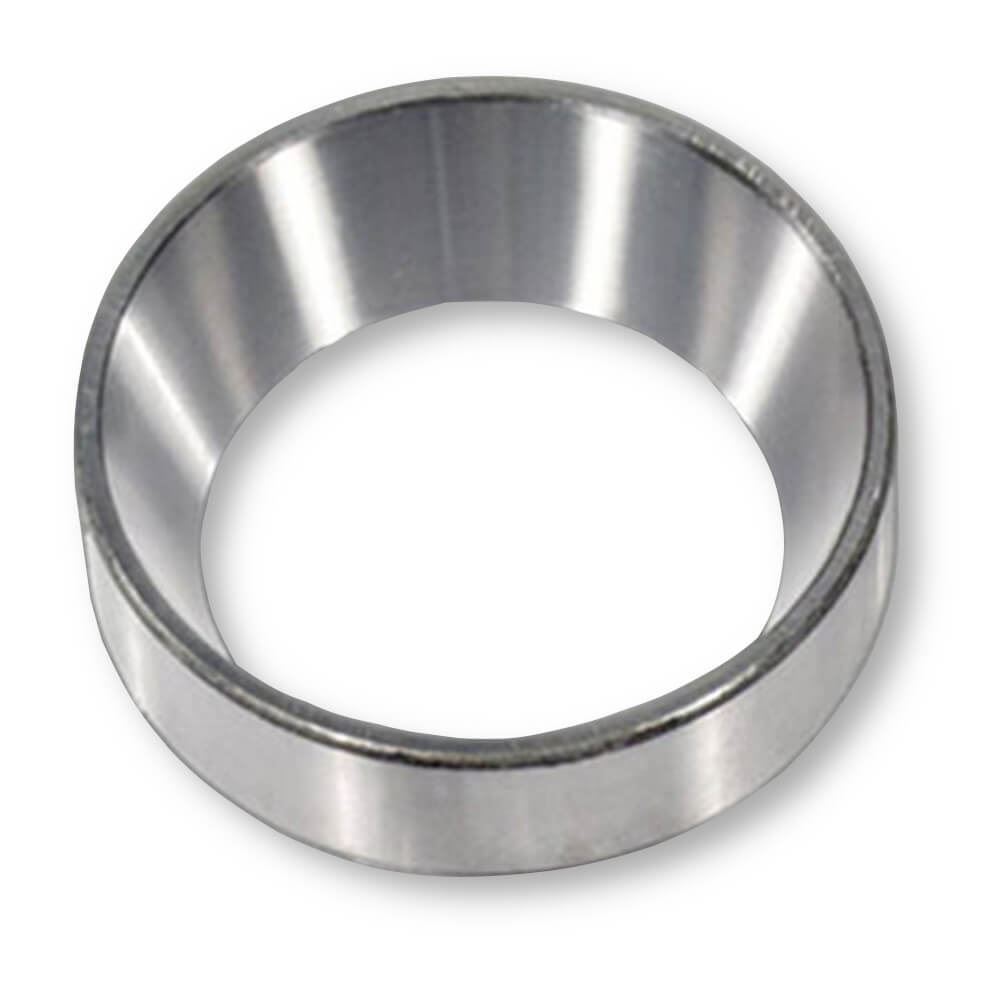

UCF LM-67010 Tapered Roller Bearing Cup, 2.3280 in Outside Diameter
The UCF LM-67010 is a single tapered roller bearing cup, the outer ring of a tapered roller bearing, for trailer wheel hubs. It measures 2.3280 in in outside diameter and 0.4650 in in cup width, and it is supplied as the cup only.
Key Features
- Single tapered roller bearing cup (outer ring) only
- Separable design: the cone (inner ring) assembly is a separate part
- Imperial (inch) design dimensions
- Outside diameter 2.3280 in and cup width 0.4650 in
Specifications
| Brand | UCF |
|---|
| Manufacturer Part Number | LM-67010 |
|---|
| Product Type | Tapered Roller Bearing Cup |
|---|
| Outside Diameter | 2.3280 in |
|---|
| Cup Width | 0.4650 in |
|---|
| Assembled Bearing Width with LM67048 Cone | 0.6250 in |
|---|
| Weight | 0.12 lb |
|---|
Compatibility
This cup pairs with the LM67048 cone (1.2500 in bore, 1-1/4 in). In the Dexter catalog it is the outer bearing cup for 5,200 lb axles, paired with the LM67048 outer cone.
Important Purchase Notes
This listing is for one single bearing cup (outer ring) only. No cone is included, and the mating cone is sold separately.
Common Applications
Trailer wheel hubs, as the outer bearing cup.
Recommended Related Parts
UCF LM67048 mating bearing cone.
Frequently Asked Questions
Is the bearing cone included?
No. This is the cup (outer ring) only, and the cone assembly is sold separately.
Which cone does this cup pair with?
It pairs with the LM67048 cone with a 1.2500 in bore, per the evidence record.
How do I confirm this is the right cup?
Match the cup outside diameter of 2.3280 in and the cup width of 0.4650 in to your hub bore and your existing cup.
UCF is the trailer parts line of The Universal Group.
