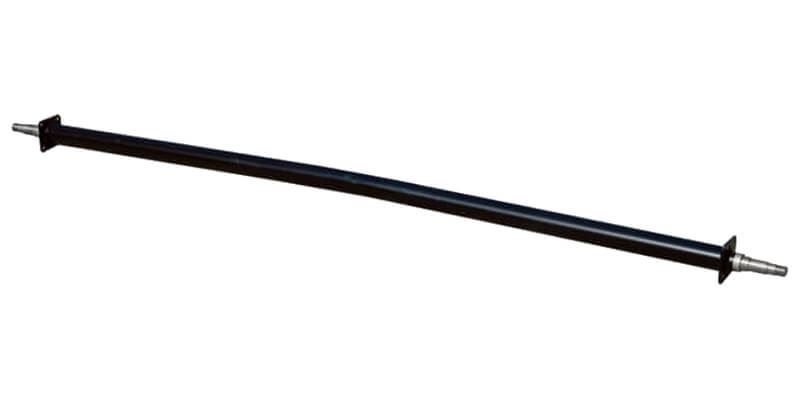

Reliable Tool & Machine 60" Round Trailer Axle, part SP-2000-012
The Round Tuble Trailer Axle Beam acts as part of your trailer's suspension system and features a high-strength steel construction. This axle fits the 4 bolt hub part 230060 and the 5 bolt hub part 230061 (sold separately).
- Load Capacity: 2,000 Lbs
- Track Length: 60" (hub face to hub face)
- Tube Diameter: 1-3/4"
- Spring center flange: 42" to 50-1/2"
- Overall length: 64-1/2"
- Spindle: 1-1/16", straight
- Unflanged "L" series
- Axle Beam
- Axle Nut - attached
- Cotter Pin - attached
- Spring Seats - loose, can be mounted over or under
The axle must be installed with center bow up. The center bow exists until weight is put on the axle.
Includes spring seats (loose) you can mount over or under and axle nut and cotter pin attached.
Reliable Machine has been providing quality machining, welding, and assembled products since 1946. Serving the construction, trailer, lawn care and agriculture industries.
