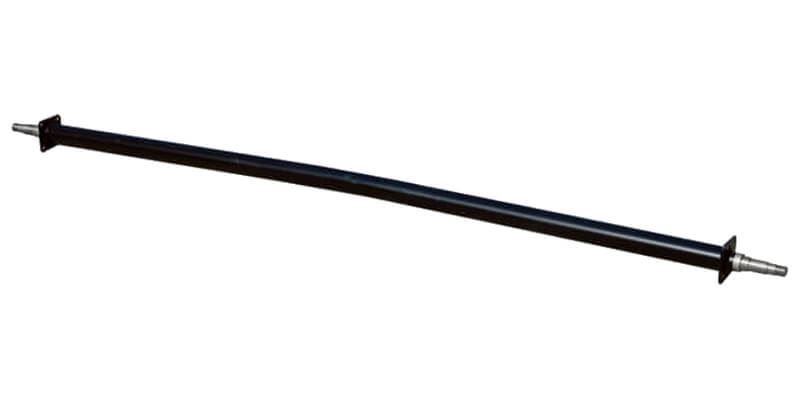

    72" Round Trailer Axle, 2000 Lb load, Straight Spindle, Reliable SP-2000-029

    Manufacturer: Reliable Machine
    Round tube trailer axle beam. Load capacity: 2000 lbs, track length: 72", tube diameter: 1.75", spring centers: 54" to 62.5", overall length: 76.5", spindle: 1-1/16" straight, unflanged "L" series. Includes axle beam, axle nut, cotter pin and spring seats. No additional hardware or parts are included with this axle.
    SKU: 230056
    Manufacturer part number: SP-2000-029
    Availability: Out of stock
    $129.99
    $117.99
    i h

    Reliable Tool & Machine 72" Round Trailer Axle, part SP-2000-029

    The Round Tuble Trailer Axle Beam acts as part of your trailer's suspension system and features a high-strength steel construction. This axle fits the 4 bolt hub part 230060 and the 5 bolt hub part 230061 (sold separately).

    Specs:

    • Load Capacity: 2,000 Lbs
    • Track Length: 72" (hub face to hub face)
    • Tube Diameter: 1-3/4"
    • Spring center flange: 54" to 62-1/2"
    • Overall length: 76-1/2"
    • Spindle: 1-1/16", straight
    • Unflanged "L" series

    Included:

    • Axle Beam
    • Hardware:
      • Axle Nut - attached
      • Cotter Pin - attached
      • Spring Seats - loose, can be mounted over or under

    Note:

    The axle must be installed with center bow up. The center bow exists until weight is put on the axle.
    Includes spring seats (loose) you can mount over or under and axle nut and cotter pin attached.

    trailer axle drawing diagram

    Reliable Machine has been providing quality machining, welding, and assembled products since 1946.  Serving the construction, trailer, lawn care and agriculture industries.

    Reliable Machine logo

    Reliable Tool & Machine 72" Round Trailer Axle, part SP-2000-029

    The Round Tuble Trailer Axle Beam acts as part of your trailer's suspension system and features a high-strength steel construction. This axle fits the 4 bolt hub part 230060 and the 5 bolt hub part 230061 (sold separately).

    Specs:

    • Load Capacity: 2,000 Lbs
    • Track Length: 72" (hub face to hub face)
    • Tube Diameter: 1-3/4"
    • Spring center flange: 54" to 62-1/2"
    • Overall length: 76-1/2"
    • Spindle: 1-1/16", straight
    • Unflanged "L" series

    Included:

    • Axle Beam
    • Hardware:
      • Axle Nut - attached
      • Cotter Pin - attached
      • Spring Seats - loose, can be mounted over or under

    Note:

    The axle must be installed with center bow up. The center bow exists until weight is put on the axle.
    Includes spring seats (loose) you can mount over or under and axle nut and cotter pin attached.

    trailer axle drawing diagram

    Reliable Machine has been providing quality machining, welding, and assembled products since 1946.  Serving the construction, trailer, lawn care and agriculture industries.

    Reliable Machine logo

    Products specifications
    Tube Diameter 1-3/4 inches
    Load Capacity 2000 lbs.
    Overall Length 76-1/2"
    Brake Flanged No
    Spindle Size 1-1/16" straight
    Sprint Center Flange 54" to 62-1/2"
    Track Length 72 inches
