UCF LM15245 Tapered Roller Bearing Cup, 2.4409 in Outside Diameter

UCF LM15245 Tapered Roller Bearing Cup, 2.4409 in Outside Diameter

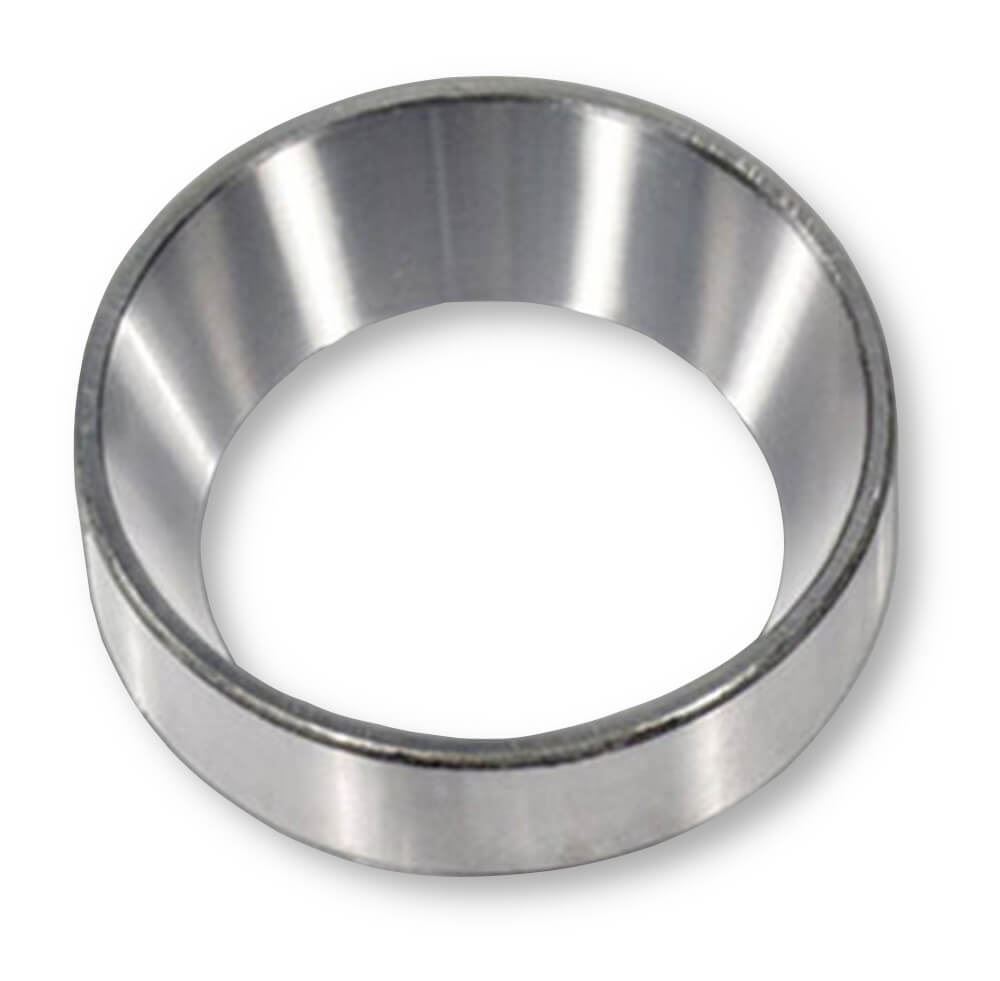

The UCF LM15245 is a single tapered roller bearing cup, the outer ring of a tapered roller bearing, for trailer wheel hubs. It measures 2.4409 in in outside diameter and 0.5625 in in cup width, and it is supplied as the cup only.

Key Features

• Single tapered roller bearing cup (outer ring) only
• Separable design: the cone assembly is a separate part
• Imperial (inch) design dimensions
• Outside diameter 2.4409 in and cup width 0.5625 in

Specifications

Compatibility

The standard trailer pairing for this cup is the 15123 cone (1.2500 in bore, 1-1/4 in). In the Dexter catalog it is the outer bearing cup for 6,000 lb axles, and it is used on 1.25 in by 1.75 in tapered spindles in 5,200 to 6,000 lb bearing kits.

Important Purchase Notes

This listing is for one single bearing cup (outer ring) only. No cone is included, and the mating cone is sold separately.

Common Applications

Trailer wheel hubs, as the outer bearing cup.

Recommended Related Parts

UCF 15123 mating bearing cone.

UCF is the trailer parts line of The Universal Group.
