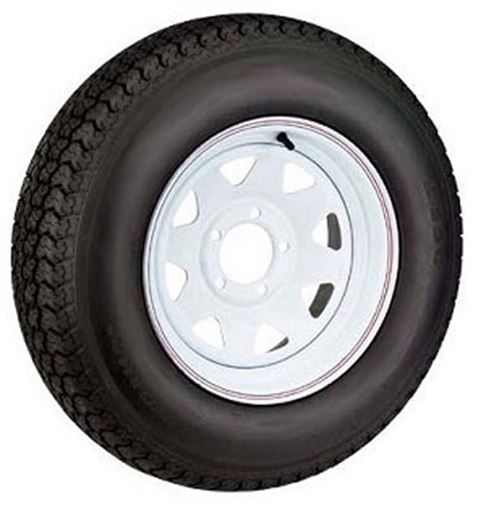

    American Tire 480-12 Tire and Wheel Assembly, Load Range B, 5-Lug White Spoke

    Manufacturer: American Tire
    Kenda Loadstar K353 bias tire (480-12, load range B, 781 lbs at 60 psi) mounted on a 12 x 4 in. white spoke steel wheel. Arrives mounted and inflated, ready to install.
    SKU: 698166
    Manufacturer part number: 30580
    GTIN: 033259650290
    Availability: In stock
    $134.99
    $98.49
    i h

    American Tire 480-12 Tire and Wheel Assembly, Load Range B, 5-Lug White Spoke

    A 480-12 Kenda Loadstar K353 bias trailer tire, load range B rated 781 lbs at 60 psi, mounted on a 12 x 4 in. white spoke steel wheel (5 on 4.5 bolt pattern). Working load capacity is 781 lbs, set by the tire.

    Key Features

    • Kenda Loadstar K353 bias tire, load range B
    • Mounted and inflated — ready to install
    • Spoke steel wheel, white finish
    • Tire rated 781 lbs at 60 psi
    • Wheel rated 1250 lbs

    Specifications

    BrandAmerican Tire (Kenda Americana Tire & Wheel)
    Manufacturer Part Number30580
    Product TypeTire and wheel assembly (mounted)
    Package Quantity1 tire and wheel assembly
    Tire Size480-12
    Tire ModelKenda Loadstar K353
    Load RangeB (4-ply rated)
    Tire Load Capacity781 lbs
    Maximum Tire Pressure60 psi
    Tire Section Width4.8 in.
    Tire Overall Diameter20.5 in.
    Wheel Size12 x 4 in.
    Bolt Pattern5 on 4.5
    Center (Pilot) Hole3.19 in.
    Wheel Load Capacity1250 lbs per wheel
    Wheel FinishWhite

    Frequently Asked Questions

    Is it ready to install?
    Yes. The tire is mounted on the wheel and inflated at the factory; bolt it on and check the tire pressure before towing.

    Will it fit my trailer's hub?
    The wheel has 5 lug holes on a 4.5 in. bolt circle and a 3.19 in. center hole. Measure your hub's bolt circle and center bore to confirm the match before ordering. Per Kenda Americana's guidance, trailer wheels are generally lug-centric — the lug nuts center the wheel — and should be balanced by the lugs, not the center hole.

    American Tire is Kenda Americana Tire & Wheel (ATW), part of the Kenda group. ATW assembles its tire-and-wheel combinations with automated equipment at its North American facilities, so each assembly arrives mounted and inflated.
