American Tire 480-12 Tire and Wheel Assembly, Load Range C, 5-Lug Galvanized Spoke

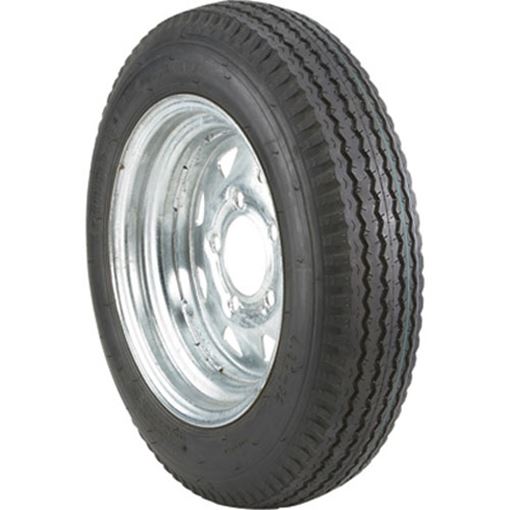

A 480-12 Kenda Loadstar K353 bias trailer tire, load range C rated 990 lbs at 89 psi, mounted on a 12 x 4 in. galvanized spoke steel wheel (5 on 4.5 bolt pattern). Working load capacity is 990 lbs, set by the tire.
Key Features
- Kenda Loadstar K353 bias tire, load range C
- Mounted and inflated — ready to install
- Spoke steel wheel, galvanized finish
- Tire rated 990 lbs at 89 psi
- Wheel rated 1250 lbs
Specifications
| Brand | American Tire (Kenda Americana Tire & Wheel) |
| Manufacturer Part Number | 30670 |
| Product Type | Tire and wheel assembly (mounted) |
| Package Quantity | 1 tire and wheel assembly |
| Tire Size | 480-12 |
| Tire Model | Kenda Loadstar K353 |
| Load Range | C (6-ply rated) |
| Tire Load Capacity | 990 lbs |
| Maximum Tire Pressure | 89 psi |
| Tire Section Width | 4.8 in. |
| Tire Overall Diameter | 20.5 in. |
| Wheel Size | 12 x 4 in. |
| Bolt Pattern | 5 on 4.5 |
| Center (Pilot) Hole | 3.19 in. |
| Wheel Load Capacity | 1250 lbs per wheel |
| Wheel Finish | Galvanized |
Frequently Asked Questions
Is it ready to install?
Yes. The tire is mounted on the wheel and inflated at the factory; bolt it on and check the tire pressure before towing.
Will it fit my trailer's hub?
The wheel has 5 lug holes on a 4.5 in. bolt circle and a 3.19 in. center hole. Measure your hub's bolt circle and center bore to confirm the match before ordering. Per Kenda Americana's guidance, trailer wheels are generally lug-centric — the lug nuts center the wheel — and should be balanced by the lugs, not the center hole.
American Tire is Kenda Americana Tire & Wheel (ATW), part of the Kenda group. ATW assembles its tire-and-wheel combinations with automated equipment at its North American facilities, so each assembly arrives mounted and inflated.
