C.E. Smith Guide-On U-Bolt Kit Large Frame

The C.E. Smith Guide-On U-Bolt Kit Large Frame (Manufacturer Part Number 11416) provides the U-bolts used to mount U-bolt mounted guide-ons to frames up to 3" wide x 5-1/4" high.

What It Fits

This kit is a genuine replacement part for C.E. Smith guide-on part numbers 27600, 27610, 27620, 27625, 27640, 27645 and 27660, according to the manufacturer.

• Guide-on part number 27600 (5' bunk board style): requires 2 kits.
• Guide-on part numbers 27610, 27620, 27625, 27640, 27645 and 27660: require 1 kit.

Where It Installs

Designed for mounting U-bolt mounted guide-ons to frames up to 3" wide x 5-1/4" high.

Key Facts

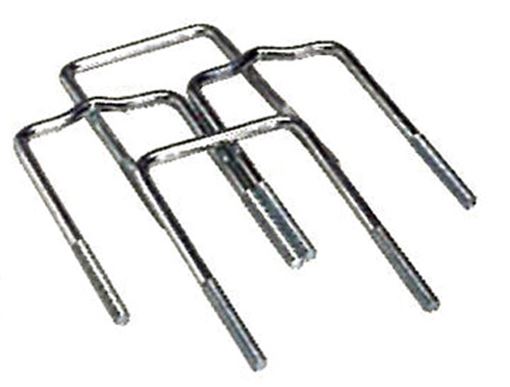

• 4 U-bolts per kit: 2 formed and 2 straight
• 3/8"-16 thread, zinc plated
• Nuts and washers are not included
