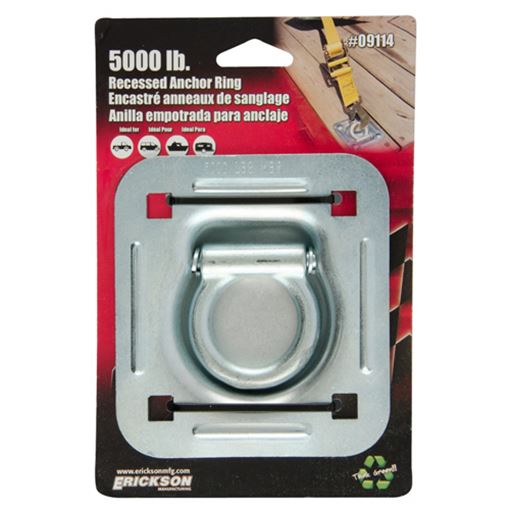

    Erickson 09114 Recessed Anchor Ring, 5000 lb Break Strength, 1665 lb WLL

    Manufacturer: Erickson Manufacturing
    Erickson 09114 is a recessed anchor ring rated 5000 lb break strength and 1665 lb working load limit. It mounts recessed in a trailer floor or wall with a 4-hole bolt base.
    SKU: EK9114
    Manufacturer part number: 9114
    GTIN: 064383091147
    Availability: In stock
    $22.49
    $14.99
    i h

    Erickson 09114 Recessed Anchor Ring, 5000 lb Break Strength, 1665 lb WLL

    This Erickson recessed anchor ring sits down into the floor or wall of your trailer, leaving a strong tie-down point that stays out of the way when it is not in use.

    Key Features

    • Recessed mount anchor ring with base plate
    • 5000 lb break strength, 1665 lb working load limit
    • 4-hole bolt base for floor or wall mounting
    • Zinc plated finish
    • Quick and easy to install, per the manufacturer

    Specifications

    BrandErickson
    Manufacturer Part Number09114
    Product TypeRecessed Anchor Ring
    Break Strength5000 lb
    Working Load Limit1665 lb
    Recess Depth0.75 in
    Ring Inside Diameter1 in at the base
    Ring Inside Height1.25 in
    Ring Thickness0.375 in
    Base Plate4.875 in x 4.5 in
    Mount Hole Diameter0.375 in
    Hole Spacing3 in center to center
    FinishZinc plated
    Sold As1 anchor ring

    Important Purchase Notes

    Sold as one recessed anchor ring with its base plate. Mounting bolts are not included; the manufacturer specifies Grade 5 bolts or better.

    Frequently Asked Questions

    Is 5000 lb the working load?

    No. 5000 lb is the break strength. The working load limit is 1665 lb.

    How does it mount?

    It mounts recessed, in a floor or wall, on a 4-hole bolt base. The ring recess is 0.75 in deep.

    Are bolts included?

    No. The manufacturer specifies Grade 5 bolts or better, which are not included.

    Erickson Manufacturing has made cargo control and load securement products since 1977. Shop Erickson at SiraWeb, where every part is listed by its manufacturer part number with the ratings and specifications you need to order with confidence.
