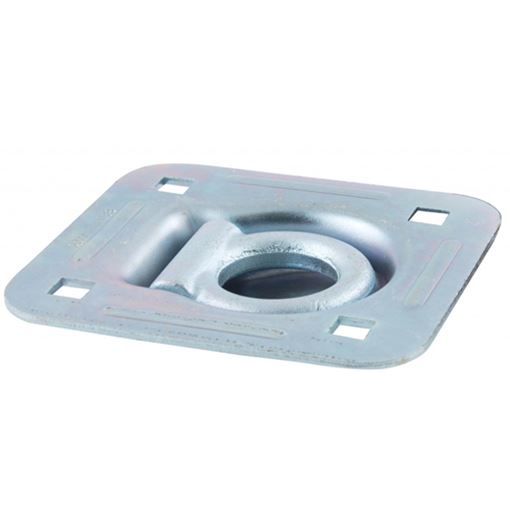

Erickson 59114 Recessed Anchor Ring, 5000 lb Break Strength, 1665 lb WLL
This Erickson recessed anchor ring sits down into the floor or wall of your trailer, leaving a strong tie-down point that stays out of the way when it is not in use.
Key Features
- Recessed mount anchor ring with base plate
- 5000 lb break strength, 1665 lb working load limit
- 4-hole bolt base for floor or wall mounting
- Zinc plated finish
- Quick and easy to install, per the manufacturer
Specifications
| Brand | Erickson |
|---|
| Manufacturer Part Number | 59114 |
|---|
| Product Type | Recessed Anchor Ring |
|---|
| Break Strength | 5000 lb |
|---|
| Working Load Limit | 1665 lb |
|---|
| Recess Depth | 0.75 in |
|---|
| Ring Inside Diameter | 1 in at the base |
|---|
| Ring Inside Height | 1.25 in |
|---|
| Ring Thickness | 0.375 in |
|---|
| Base Plate | 4.875 in x 4.5 in |
|---|
| Mount Hole Diameter | 0.375 in |
|---|
| Hole Spacing | 3 in center to center |
|---|
| Finish | Zinc plated |
|---|
| Sold As | 1 anchor ring |
|---|
Important Purchase Notes
Sold as one recessed anchor ring with its base plate. Mounting bolts are not included; the manufacturer specifies Grade 5 bolts or better.
Frequently Asked Questions
Is 5000 lb the working load?
No. 5000 lb is the break strength. The working load limit is 1665 lb.
How does it mount?
It mounts recessed, in a floor or wall, on a 4-hole bolt base. The ring recess is 0.75 in deep.
Are bolts included?
No. The manufacturer specifies Grade 5 bolts or better, which are not included.
