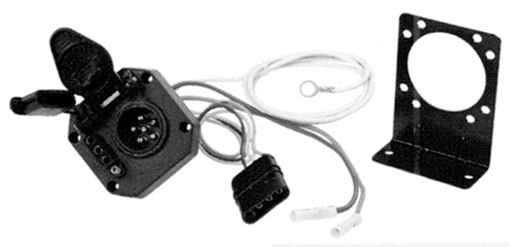

    Hopkins 47175 Multi-Tow Connector: 4 Flat Vehicle Side to 6 Round and 4 Flat

    Manufacturer: Hopkins
    Hopkins 47175 Multi-Tow vehicle-side connector that takes a vehicle 4 Flat and provides 6 Round and 4 Flat towing options from one connector. Designed to retrofit existing mountings, including in-bumper mounts.
    SKU: 647175
    Manufacturer part number: 47175
    Availability: In stock
    $37.05
    $20.99
    i h

    Hopkins 47175 Multi-Tow Connector: 4 Flat Vehicle Side to 6 Round and 4 Flat

    The Hopkins 47175 Multi-Tow is for a vehicle that already has a 4 Flat connection but needs to handle trailers wired two different ways. From that single vehicle-side input it offers both a 6 Round and a 4 Flat trailer connection, and Hopkins designed it to fit mountings already on the vehicle, including in-bumper locations.

    Key Features

    • Provides multiple towing options from one connector
    • Vehicle side: 4 Flat; trailer side: 6 Round and 4 Flat
    • Designed to retrofit existing mountings, including in-bumper mounts
    • Install sheet prints the pin and wire functions for ground, left and right turn, tail, auxiliary power and electric brakes

    Specifications

    BrandHopkins Towing Solutions
    Manufacturer Part Number47175
    Product TypeMulti-Tow vehicle-side connector
    Vehicle-Side Connector4 Flat
    Trailer-Side Connectors6 Round and 4 Flat
    Wire Functions Printed on Install SheetGD = Ground (White); LT = Left turn (Yellow); RT = Right turn (Green); TM = Tail (Brown); AP = Auxiliary power lead (Red); EB = Electric brakes (Blue)

    Compatibility

    This connector adapts a vehicle-side 4 Flat to trailer-side 6 Round and 4 Flat connections, from one connector, and it is designed to retrofit existing mountings including in-bumper mounts, per the 2016 Hopkins Product Guide.

    Installation note: Per the install sheet, the auxiliary power lead connects to the fuse box or a fused battery lead, and the electric-brake wire attaches to an electric brake control.

    Important Purchase Notes

    Per the Hopkins install sheet: ground the white wire to a clean surface on the vehicle frame; connect the red auxiliary power lead to the fuse box or a fused battery lead; attach the blue electric-brake wire to an electric brake control. The sheet also notes: locate wires and pin location by function only, because color coding is not standard among all manufacturers.

    Why Buy This Part

    One connector covers both 6 Round and 4 Flat towing, per Hopkins' Multi-Tow copy, and its retrofit design works with existing mountings, including in-bumper mounts.

    What does the 47175 convert?

    Start with a 4 Flat on the vehicle. This unit adds a 6 Round output while also keeping a 4 Flat output available for towing.

    Will it work with my existing mounting?

    That is the use Hopkins had in mind for it. The guide describes it as a retrofit for mountings already fitted, bumper-integrated ones included.

    How are the auxiliary power and electric brake wires connected?

    Follow each lead by function: red feeds auxiliary power from the fuse box or a fused battery lead, blue goes to the brake control, and white needs a clean frame surface for its ground.

    Can I rely on wire colors alone?

    No, colors vary between manufacturers. Identify each wire and pin by what it does, as the sheet instructs.

    Hopkins Towing Solutions is the towing electrical brand of Hopkins Manufacturing Corporation, which has manufactured towing and trailering products since 1953.
