    Hopkins 52007 6 Round Connector Set: Vehicle Socket and Trailer Plug, Metal

    Manufacturer: Hopkins
    Hopkins 52007 6 Round connector set with a tow vehicle end metal socket and a trailer end metal plug, plus a cable protector. The two ends are a matched pair, so both sides of a 6-pole connection are covered in one set.
    SKU: 652007
    Manufacturer part number: 52007
    GTIN: 079976520072
    Availability: In stock
    $18.05
    $14.49
    i h

    Hopkins 52007 6 Round Connector Set: Vehicle Socket and Trailer Plug, Metal

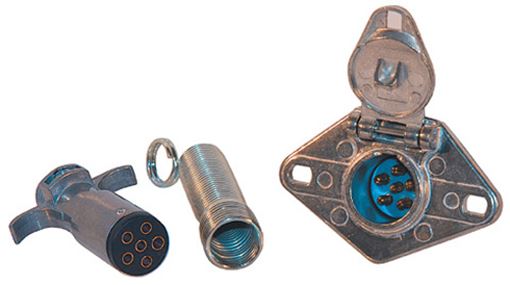

    The Hopkins 52007 is a 6 Round connector set that covers both ends of a 6-pole round connection: a metal socket for the tow vehicle end and a metal plug for the trailer end.

    Key Features

    • Tow vehicle end metal socket and trailer end metal plug in one set
    • Matching vehicle and trailer end connectors, per the Hopkins guide's Connector Sets introduction
    • Cable protector included

    Specifications

    BrandHopkins Towing Solutions
    Manufacturer Part Number52007
    Product Type6 Round (6-pole) connector set
    Set ContentsTow vehicle end metal socket; trailer end metal plug; cable protector
    Wiring Identification (install sheet)White: ground (GD); Brown: tail (TM); Yellow: left turn (LT); Green: right turn (RT); Blue: electric brake (S); Red: auxiliary (A)

    Compatibility

    Hopkins' Connector Sets introduction states that all sets contain matching vehicle and trailer end connectors, and this set pairs its vehicle end socket with its trailer end plug.

    Installation note: per install sheet #52007, strip the socket and plug wires 1/4 inch and secure them to the terminals, mount the completed socket assembly to a bracket, reassemble the trailer end plug housing, and leave 18 inches of slack between tow vehicle and trailer to allow the trailer to turn; then plug the trailer into the vehicle and test.

    Important Purchase Notes

    The set includes both ends, per the Hopkins guide: the tow vehicle end metal socket and the trailer end metal plug, plus a cable protector.

    What is in the 52007 set?

    Two matched ends: a metal socket for the tow vehicle and a metal plug for the trailer, plus a cable protector.

    Do the two ends match each other?

    Yes. Hopkins states in its Connector Sets introduction that all of its sets contain matching vehicle and trailer end connectors.

    Which wire does what?

    The install sheet identifies them by colour: white ground, brown tail, yellow left turn, green right turn, blue electric brake and red auxiliary.

    Any installation tips from Hopkins?

    The install sheet calls for stripping wires 1/4 inch, leaving 18 inches of slack between the tow vehicle and the trailer so the trailer can turn, and testing the connection once the trailer is plugged into the vehicle.

    Hopkins Towing Solutions is the towing electrical brand of Hopkins Manufacturing Corporation, which has manufactured towing and trailering products since 1953.
