    Hopkins 52027 Heavy Duty 7 Round Trailer Side Connector (Metal) with Cable Protector

    Manufacturer: Hopkins
    Hopkins 52027 Heavy Duty 7 Round (Metal) trailer side connector with a heavy-duty die-cast zinc housing and a cable protector included. Its terminals are wired in the same positions as the vehicle side 7-way socket.
    SKU: 652027
    Manufacturer part number: 52027
    GTIN: 079976520270
    Availability: In stock
    $21.95
    $13.99
    i h

    Hopkins 52027 Heavy Duty 7 Round Trailer Side Connector (Metal) with Cable Protector

    The Hopkins 52027 is a trailer side 7 Round (7-way) connector in a metal housing, the trailer end that plugs into the vehicle side 7-way socket.

    Key Features

    • Heavy-duty die-cast zinc housing
    • Cable protector included, per the Hopkins guide
    • Terminal positions matched to the vehicle side 7-way socket, per the Hopkins install sheet

    Specifications

    BrandHopkins Towing Solutions
    Manufacturer Part Number52027
    Product Type7 Round (7-pole / 7-way) trailer side connector, metal
    HousingHeavy-duty die-cast zinc

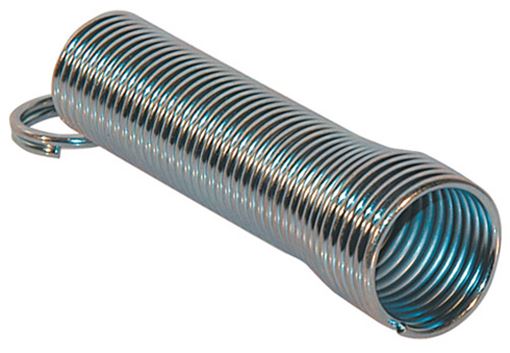

    IncludedCable protector
    Wiring Identification (install sheet)GD: ground; TM: tail/park; LT: left turn; RT: right turn; AX: auxiliary; EB: electric brake; BU: reverse

    Compatibility

    This is a trailer side 7-way plug. Per its Hopkins install sheet, its wires are secured to the terminal assembly in the same positions as found on the vehicle side 7-way socket.

    Installation note: per install sheet #52027, route the wiring through the housing, strip the wires 1/4 inch and secure them to the terminal assembly, leave 18 inches of slack between tow vehicle and trailer to allow the trailer to turn, then plug the trailer into the vehicle and test.

    Important Purchase Notes

    A cable protector is included, per the Hopkins guide entry for this part number.

    Common Applications

    Hopkins' guide describes 7 Round connectors generally as typically used with larger farming or commercial fleet trailers, providing left/right turn, taillight, ground, auxiliary, electric brake and backup/reverse functions.

    Is this the trailer side or the vehicle side?

    The trailer side. It is the plug that connects into the 7-way socket on the tow vehicle.

    What is included with the 52027?

    A cable protector comes with it, according to the Hopkins guide.

    How are the terminals assigned?

    To mirror the vehicle side socket, position for position. The install sheet labels them GD ground, TM tail/park, LT left turn, RT right turn, AX auxiliary, EB electric brake and BU reverse.

    What trailers is this format used on?

    Hopkins describes 7 Round connectors as typical on larger farming trailers and commercial fleet trailers.

    Hopkins Towing Solutions is the towing electrical brand of Hopkins Manufacturing Corporation, which has manufactured towing and trailering products since 1953.
