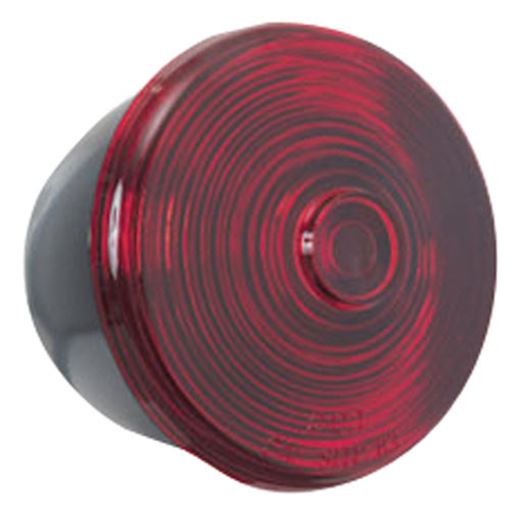

Optronics ST24RB 3-Function Red Round Stud-Mount Stop/Turn/Tail Light, Right-Hand (Passenger Side)
The Optronics ST24RB is a red, round, stud-mount stop/turn/tail light for the right-hand (passenger) side. It provides three functions (stop, turn, and tail) and is part of the manufacturer's ST24/25 Series.
Key Facts Before You Order
- Side: Right-hand (passenger side).
- Functions: Stop, turn, and tail. This light does not include a license illuminator.
- Mounting: Stud mount.
- Shape and color: Round, red.
- Bulb type: Incandescent. Diode and lumen ratings do not apply.
- Voltage: 12V.
Wiring and Installation
This light is hard-wired. The red wire carries the stop/turn function and the brown wire carries the tail function. It is self-grounding and grounds through its mounting, so no separate ground wire is listed.
Construction
- Housing material: plastic
- Lens material: acrylic
Specifications
| Manufacturer |
Optronics |
| Manufacturer Part Number |
ST24RB |
| SKU |
OP1126 |
| Side |
Right-hand (passenger side) |
| Functions |
Stop, turn, tail |
| Color |
Red |
| Shape |
Round |
| Mount |
Stud |
| Connection |
Hard wired |
| Wire colors |
Red (stop/turn), brown (tail) |
| Grounding |
Self-grounding through mounting |
| Voltage |
12V |
| Amp draw |
Stop 2.5 / Tail 1.0 |
| FMVSS |
S T I P |
| Housing material |
Plastic |
| Lens material |
Acrylic |
| Dimensions (W x H x D) |
4.313 x 4.313 x 3.375 in. |
| Weight |
0.309 lbs. |
Frequently Asked Questions
What is the Round Stud-Mount Stop/Turn/Tail Light used for?
It is a right-hand (passenger side) stop, turn, and tail light with three functions, and it does not include a license illuminator.
What are the specifications of the Round Stud-Mount Stop/Turn/Tail Light?
It is a red, round, stud-mount, 12V incandescent light measuring 4.313 x 4.313 x 3.375 inches, with a plastic housing and an acrylic lens.
Optronics Inc. manufactures LED and incandescent lighting and electrical accessories for trailers, trucks, and marine applications.
