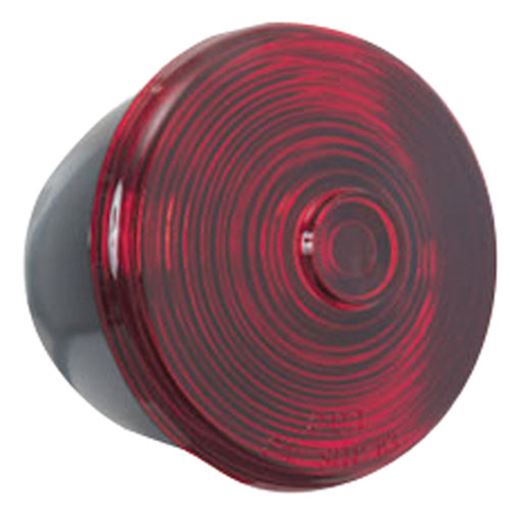

Optronics ST25RB 4-Function Round Taillight, Left Hand (Driver Side), 4-5/16 Inch, Red
The Optronics ST25RB is a 4-5/16-inch round, red, stud-mount combination taillight with a license light. This is the left-hand (driver side) unit. It provides four functions: stop, turn, tail, and license illuminator.
Key Features
- Left-hand / driver side
- 4-5/16-inch round red design
- Four functions: stop, turn, tail, and license illuminator
- Black polymer housing
- Acrylic snap-on replaceable lens
- Easy-change replaceable bulb
- 12V operation
- Universal fit
Mounting and Wiring
- Stud mount using two 1/4-inch studs on 2-inch centers
- Hard wired: red wire for stop/turn, brown wire for tail
- Grounds through the mounting studs
Specifications
| Manufacturer |
Optronics |
| Manufacturer Part Number |
ST25RB |
| SKU |
OP1127 |
| Side |
Left hand (driver side) |
| Size / Shape |
4-5/16 inch, round |
| Dimensions |
4.313 × 4.313 × 3.375 in. |
| Color |
Red |
| Functions |
Stop, turn, tail, license illuminator |
| Mounting |
Two 1/4-inch studs on 2-inch centers |
| Housing |
Black polymer |
| Lens |
Acrylic, snap-on, replaceable |
| Wiring |
Red (stop/turn), brown (tail); grounds through mounting studs |
| Voltage |
12V |
| Amp Draw |
Stop 2.5 / Tail 1.0 |
| Weight |
0.309 lbs |
| FMVSS Rating |
S T I P L |
| Fit |
Universal |
Frequently Asked Questions
What is the Round Taillight used for?
It is a left-hand (driver side) combination taillight with a license light, providing four functions: stop, turn, tail, and license illuminator.
What are the specifications of the Round Taillight?
It is a 4-5/16 inch round, red, 12V light measuring 4.313 x 4.313 x 3.375 inches, with a black polymer housing and an acrylic snap-on replaceable lens.
Optronics Inc. manufactures LED and incandescent lighting and electrical accessories for trailers, trucks, and marine applications.
