Optronics TL-5RK Stop/Turn/Tail Light Kit, Red, Incandescent, 12V
The Optronics TL-5RK is a retail stop/turn/tail light kit from the Optronics ST6/7 Series. It is an incandescent, 12V kit with red tail lights, amber marker lights and a license plate bracket. The hard-wired tail lights use color-coded stop, turn and tail wires and are self-grounding.

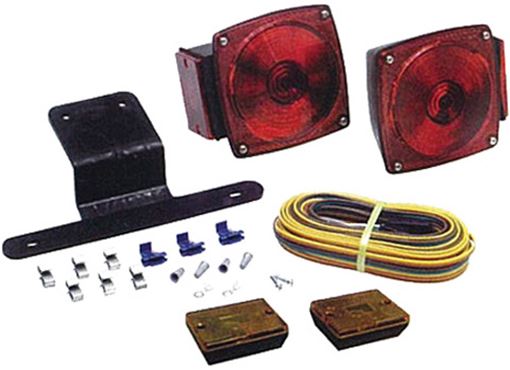

What's Included in the Kit
- ST6RB and ST7RB tail lights
- Two MC36AB amber marker lights with reflex
- LP10SB license plate bracket
- 25-ft wiring harness
- Mounting hardware
Key Features
- Hard-wired connection with color-coded stop, turn and tail wires
- Self-grounding design
- Stud mount
- Plastic housing with acrylic lens
- Incandescent lighting
- Packaged in a retail clam-pack
Specifications
| Specification | Detail |
| Brand |
Optronics |
| Manufacturer Part Number |
TL-5RK |
| SKU |
OP501 |
| Series |
ST6/7 Series |
| Color |
Red |
| Mount |
Stud |
| Connection |
Hard Wired |
| Voltage |
12V |
| Amp Draw |
Stop 2.5 / Tail 1.0 |
| Housing Material |
Plastic |
| Lens Material |
Acrylic |
| Size/Shape |
Universal Square |
| Dimensions |
5.000 x 4.563 x 2.875 in |
| Weight |
0.309 lbs |
| FMVSS |
S T A, P2 A, L |
| Lamp Type |
Incandescent |
Before You Order
Confirm that the kit contents, 12V rating and hard-wired connection match your requirements. The two MC36AB amber marker lights are included. Other marker lenses or accessories are not part of this kit.
Frequently Asked Questions
What is included with the Stop/Turn/Tail Light Kit?
The kit includes ST6RB and ST7RB tail lights, two MC36AB amber marker lights with reflex, an LP10SB license plate bracket, a 25-ft wiring harness, and mounting hardware.
What is the Stop/Turn/Tail Light Kit used for?
It is a stop, turn, and tail light kit with red tail lights, amber marker lights, and a license plate bracket, using hard-wired, self-grounding tail lights.
What are the specifications of the Stop/Turn/Tail Light Kit?
It is an incandescent, 12V, stud-mount kit measuring 5.000 x 4.563 x 2.875 inches, with a plastic housing and an acrylic lens.
Optronics Inc. manufactures LED and incandescent lighting and electrical accessories for trailers, trucks, and marine applications.
