    Peterson 108WA Amber Clearance Light with Reflex, Surface Mount

    Manufacturer: Peterson
    Peterson 108WA amber clearance and marker light with built-in reflex, a single replaceable bulb and surface mounting on 3 inch centers. It grounds through the mounting screw, so no separate reflector or ground wire is needed.
    SKU: PM1081
    Manufacturer part number: 108WA
    GTIN: 044464904962
    Availability: In stock
    $9.99
    $5.49
    i h

    Peterson 108WA Amber Clearance Light with Integral Reflex

    The Peterson 108WA is an oblong, single-bulb clearance and marker light with an integral reflex, so the light and reflector are one unit. It surface mounts on 3 inch centers and grounds through the mounting screw for a simple two-minute replacement of a failed marker light.

    Key Features

    • Combination marker/clearance light with integral reflex, P2 rated
    • Single long-life incandescent bulb, replaceable through the removable lens
    • Surface mount on 3 inch centers
    • Single lead wire; grounds through the mounting screw
    • DOT compliant

    Specifications

    • Part number: Peterson 108WA (SiraWeb PM1081)
    • Function: clearance / marker light with reflex
    • Lens color: amber
    • Bulb: 1 incandescent, replaceable (reference 193 or 194, 12V)
    • Voltage: 12V

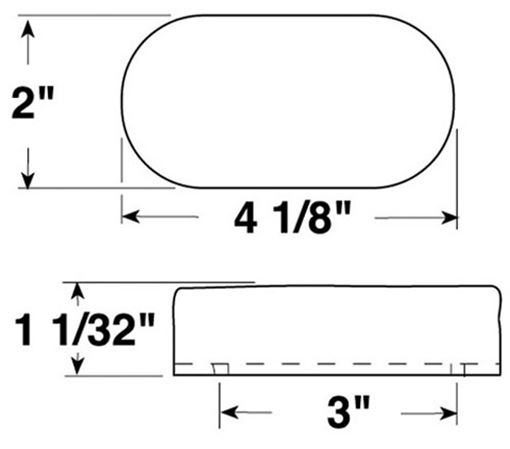

    • Size: 4 in. long x 2 in. high x 1 in. wide
    • Mounting: surface mount, 3 in. centers
    • Wiring: single lead wire, stripped termination

    Compatibility

    The replacement lens for this light depends on when the light was manufactured. Lights made through 2011 use lens 108-15A (amber); lights made from 2012 to 2018 use 108-151A; lights made from 2019 on use V2549-15A. Check the lens number on your existing light before ordering a lens.

    Important Purchase Notes

    This is one complete light in a poly bag: base, lens and bulb. It is not a lens-only replacement.

    Frequently Asked Questions

    Is a separate reflector required?

    No. The reflex is built into the light, which is what the P2 rating covers.

    How does the light ground?

    Through the mounting screw into the trailer body. The single lead wire carries power.

    Which bulb does it take?

    A 193 or 194 miniature bulb, 12 volt. The lens removes for bulb replacement.

    Peterson Manufacturing builds safety lighting and harness systems for trucks, trailers and commercial vehicles. SiraWeb lists Peterson lights, replacement lenses and wiring accessories by part number with the specifications you need to match the right part the first time.
