    Peterson 146A Amber 2 Inch Sealed Clearance Light, Lamp Only

    Manufacturer: Peterson
    Peterson 146A amber 2 inch sealed clearance and side marker light with a Lexan lens and housing sonic welded into one unit. Lamp only: the mounting grommet and 2-wire plug are sold separately.
    SKU: PM1461
    Manufacturer part number: 146A
    GTIN: 044464917962
    Availability: In stock
    $7.99
    $2.99
    i h

    Peterson 146A Amber 2 Inch Sealed Clearance Light

    The Peterson 146A is a 2 inch round sealed clearance and side marker light. The Lexan lens and housing are sonic welded into a single sealed unit that mounts in a rubber grommet, a clean flush fit for trailer side rails and fenders.

    Key Features

    • Sealed 2 inch round clearance and side marker light, PC rated
    • Lexan lens and housing sonic welded into a single unit
    • Grommet mount for a flush fit
    • 12 volt incandescent

    Specifications

    • Part number: Peterson 146A (SiraWeb PM1461)
    • Function: clearance / side marker light
    • Lens color: amber

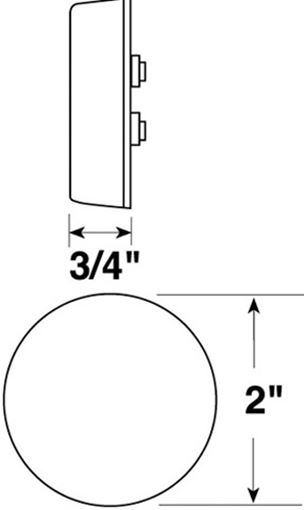

    • Size: 2 in. round
    • Voltage: 12V
    • Mounting: grommet mount (grommet 146-18, sold separately)
    • Wiring: 2-wire plug 142-49 (sold separately)

    Important Purchase Notes

    Lamp only. A first installation requires the Peterson 146-18 rubber grommet and a 2-wire plug such as the Peterson 142-49 right angle plug, both sold separately. If you want the bundled version, Peterson packages the same lamp with grommet and pigtail as the 146KA kit.

    Frequently Asked Questions

    Is the grommet included?

    No. The 146A is the lamp only; the 146-18 grommet and the 2-wire plug are separate parts.

    Can the bulb be replaced?

    The lens and housing are sonic welded into one sealed unit, so the lamp is replaced as a unit when it fails.

    Peterson Manufacturing builds safety lighting and harness systems for trucks, trailers and commercial vehicles. SiraWeb lists Peterson lights, replacement lenses and wiring accessories by part number with the specifications you need to match the right part the first time.
