    Peterson V114R Red Clearance and Side Marker Light, Stud Mount

    Manufacturer: Peterson
    Peterson V114R red combination clearance and side marker light with built-in reflective optics, stud mounting and a Quick Lock wire port. The long-life bulb is rated at 15,000 hours.
    SKU: PM1141
    Manufacturer part number: V114R
    GTIN: 044464946702
    Availability: In stock
    $11.99
    $3.49
    i h

    Peterson V114R Red Clearance and Side Marker Light

    The Peterson V114R combines a clearance light, side marker and reflector in one stud-mount unit, with reflective optics built in so no separate reflector is needed. Power connects by pushing the stripped wire into the Quick Lock port, and a second port accepts a separate ground wire on non-metallic surfaces.

    Key Features

    • Combination clearance light and side marker with built-in reflex optics
    • Stud mount for a secure, vibration-resistant fit
    • Quick Lock port: push the stripped power wire in to connect
    • Extra wire port for a separate ground wire on non-metallic surfaces
    • Long-life bulb rated at 15,000 hours
    • May serve as a combination side marker and clearance light for over 80 inch applications when properly mounted

    Specifications

    • Part number: Peterson V114R (SiraWeb PM1141)
    • Function: clearance / side marker light with reflex
    • Lens color: red
    • Bulb: long-life incandescent, 15,000 hour rating (replacement bulb 194)

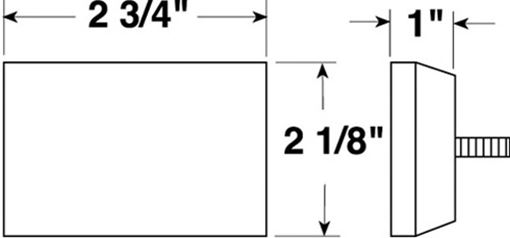

    • Size: 2-3/4 in. wide x 2-1/8 in. high x 1 in. deep
    • Mounting: stud mount
    • Wiring: single wire, Quick Lock port; second port for separate ground

    Frequently Asked Questions

    Do I need a separate reflector with this light?

    No. The reflective optics are built into the light.

    How do I wire it on a fiberglass or plastic panel?

    Use the additional wire port for a separate ground wire; the light does not ground through the stud on non-metallic surfaces.

    What replacement bulb does it use?

    The Peterson 194 long-life bulb.

    Peterson Manufacturing builds safety lighting and harness systems for trucks, trailers and commercial vehicles. SiraWeb lists Peterson lights, replacement lenses and wiring accessories by part number with the specifications you need to match the right part the first time.
